Wiper Arm: Service and Repair

Wiper Arm Removal and Installation

Removal

NOTE: Step 1 shows removing the windshield wiper arm, step 2 shows removing the rear window wiper arm.

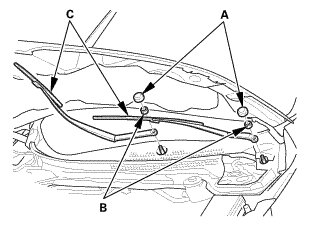

1. Both Windshield Wiper Arm Assemblies





NOTE: Set the wiper arms to the auto-stop position before removal.

1. Remove the caps (A) and nuts (B).

2. Remove the wiper arms (C).

2. Rear Window Wiper Arm Assembly





1. Raise the wiper arm (A) off the rear window, then remove the cover (B), the nut (C), and the wiper arm.

Installation

NOTE: Steps 1 - 2 show installing the rear window wiper arm, steps 3 - 4 show installing the windshield wiper.

1. Rear Window Wiper Arm Assembly





1. Install the wiper arm (A), the nut (B), and the cover (C).

2. Rear Window Wiper Arm - Adjustment

1. Adjust the rear window wiper arm. Adjustments

3. Both Windshield Wiper Arm Assemblies




NOTE: Set the wiper arms to the auto-stop position before installation.

1. Install the wiper arms (A), the nut (B), and the caps (C).

4. Windshield Wiper Arm - Adjustment

1. Adjust the windshield wiper arms. Adjustments
