Initial Inspection and Diagnostic Overview

How to Troubleshoot the Rear Entertainment System

Rear Screen Operation

The rear screen power and the back light on/off depends on the screen panel opening angle.
* When the rear screen panel opened more than 15°, the rear screen turns on.
* When the rear screen panel opened more than 130°, the screen back light is off (power is still on).

Auto Diagnosis

When a new DVD player unit is powered up after installing into a vehicle for the first time, the self-diagnostic screen appears.

When check status and the DVD player unit connection was OK, press the REAR POWER button and the diagnostic screen should not appear again.

Lever-Locked Connector

Disconnecting

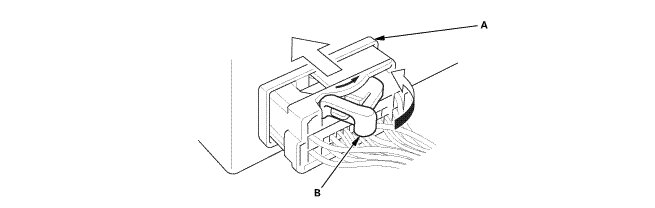

To disconnect the connector, pull the lever (A) while pushing the lock tab (B) down, then pull the connector (C).






Connecting

To connect the connector, push the connector into the connector sleeve (A). As the connector is pressed in, the lever (B) moves to the locked position.
