Sunroof / Moonroof Module: Testing and Inspection

Resetting the Moonroof Control Unit

Procedure

1. Moonroof Control Unit - Reset

Resetting the moonroof is required when any of the following have occurred:
* The moonroof stops on the track during AUTO/MANUAL operation.
* The moonroof does not work by auto operation.
* The moonroof was moved manually while the battery was dead or disconnected.
* The moonroof motor was removed or replaced with a new one.
* Any of components related to the moonroof were replaced or removed and installed.

- Wind deflector
- Moonroof glass
- Moonroof glass bracket
- Moonroof frame/Drain channel slider and cable assembly
- Moonroof cables, etc.

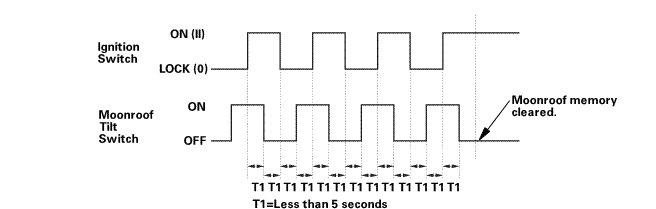

To reset the moonroof control unit, do these steps:

1. Close the driver's door, and leave it closed until the procedure is complete.

2. Turn the ignition switch to LOCK (0).





3. Press and hold the tilt switch, and turn the ignition switch to ON (II).

4. Release the tilt switch, and turn the ignition switch to LOCK (0).

5. Repeat steps 3 and 4 four more times.

6. Check if the AUTO OPEN and AUTO CLOSE function still work. If they still work, the AUTO functions have not been cleared, go back to step 1. If the AUTO functions have been cleared, go to step 7.

7. Press and hold the moonroof close switch until moonroof is fully tilt opened.

8. Confirm that the moonroof control unit is reset by using the moonroof AUTO OPEN and AUTO CLOSE function.
