Rear Door Window Glass: Adjustments

Rear Door Glass Adjustment

Removal

1. Rear Door Power Window Switch Panel





1. Remove the power window switch panel (A).

2. Rear Door Panel





1. Remove the inner handle cap (A).

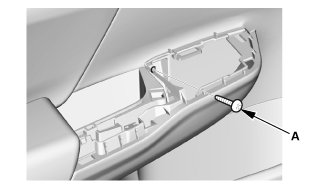

2. Remove the screw (A).





3. Remove the screw (A).





4. Remove the door panel (A).

3. Rear Door Plastic Cover As Needed





1. Detach the harness clip (A).

2. Remove the plastic cover (B) as needed.

Adjustment

1. Rear Door Glass - Adjustment





NOTE: Check the door weatherstrip and the glass run channel for damage or deterioration, and replace them if necessary.

1. Place the vehicle on a firm, level surface when adjusting the door glass.

2. Carefully lower the glass (A) until you can see the glass mounting bolts (B), then loosen them.

3. Push the glass against the glass run channel, then tighten the glass mounting bolts.

4. Check that the glass moves smoothly.





5. Raise the glass fully, and check for gaps. Also make sure that the glass (A) contacts the glass run channel (B) evenly.

Installation

1. Rear Door Plastic Cover as Needed





1. Install the plastic cover (A).

2. Install the harness clip (B).

2. Rear Door Panel





1. Install the door panel (A).





2. Install the screw (A).





3. Install the screw (A).





4. Install the inner handle cap (A).

3. Rear Door Power Window Switch Panel





1. Install the power window switch panel (A).
