Fuel Door: Service and Repair

Fuel Cap Adapter Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Rear Wheel





1. Remove the rear wheel.

3. Fuel Pipe Protector





1. Remove the fuel pipe protector (A).

4. Fuel Cap Adapter





1. Remove the fuel cap (A).

2. Remove the screw (B).





3. Remove the bolts (A).

4. Lower the fuel filler pipe (B), then remove it from the fuel cap adapter (C).





5. Turn the fuel cap adapter (A), then remove it.

Installation

1. Fuel Cap Adapter





1. Install the fuel cap adapter (A) into place.

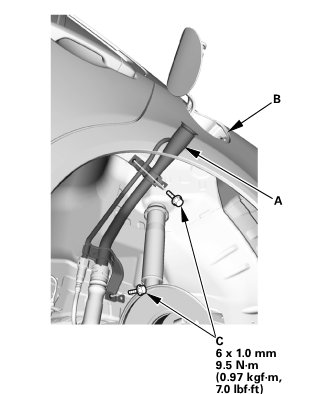

2. Raise the fuel filler pipe (A), and install it to the fuel cap adapter (B).

3. Install the bolts (C).





4. Install the screw (A).

5. Install the fuel cap (B).

2. Fuel Pipe Protector





1. Install the fuel pipe protector (A).

3. Rear Wheel





1. Install the rear wheel.

NOTE: Before installing the wheel, clean the mating surfaces between the brake disc or the brake drum and the inside of the wheel.
