Door Key Cylinder Switch Test (4-door)

Door Key Cylinder Switch Test

Removal

1. Front Door Power Window Switch Panel (4-door)

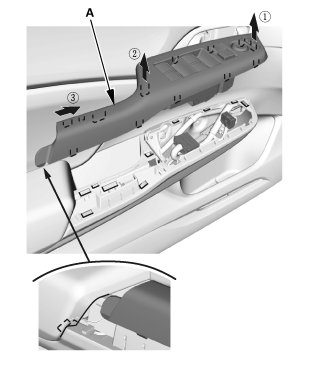

1. Remove the power window switch panel (A).

2. Front Door Panel - Driver's Side (4-Door)

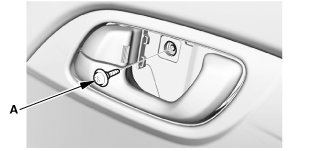

1. Remove the inner handle cap (A).

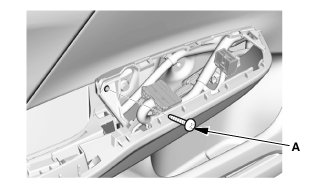

2. Remove the screw (A).





3. Remove the screw (A).

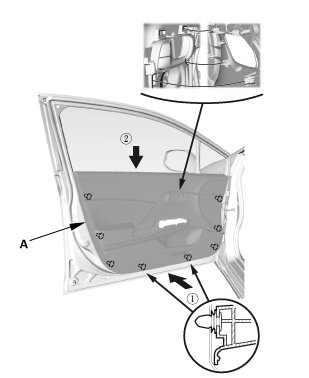

4. Remove the door panel (A).

Test

1. Door Key Cylinder Switch - Test (4-Door)

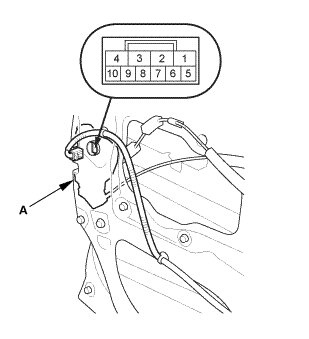

1. Disconnect the connector.

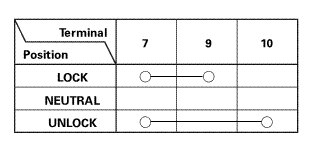

2. Check for continuity between the terminals in each switch position according to the table.

3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch (A).

4. Connect the connector.

Installation

1. Front Door Panel - Driver's Side (4-Door)





1. Install the door panel (A).





2. Install the screw (A).





3. Install the screw (A).

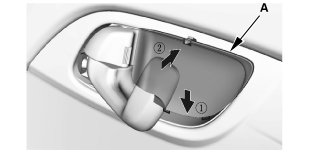

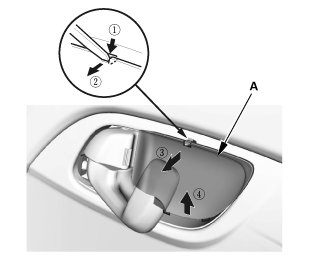

4. Install the inner handle cap (A).

2. Front Door Power Window Switch Panel (4-door)





1. Install the power window switch panel (A).
