Hood Sensor/Switch (For Alarm): Testing and Inspection

Security Hood Switch Test

Test

1. Security Hood Switch - Test









1. Open the hood.

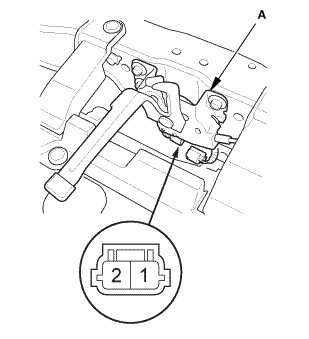

2. Disconnect the connector.

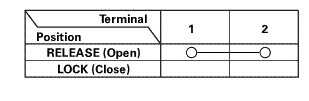

3. Check for continuity between the terminals in each switch position according to the table.

4. If the continuity is not as specified, the security hood switch is faulty; replace the hood latch (A).

5. Connect the connector.
