Part One

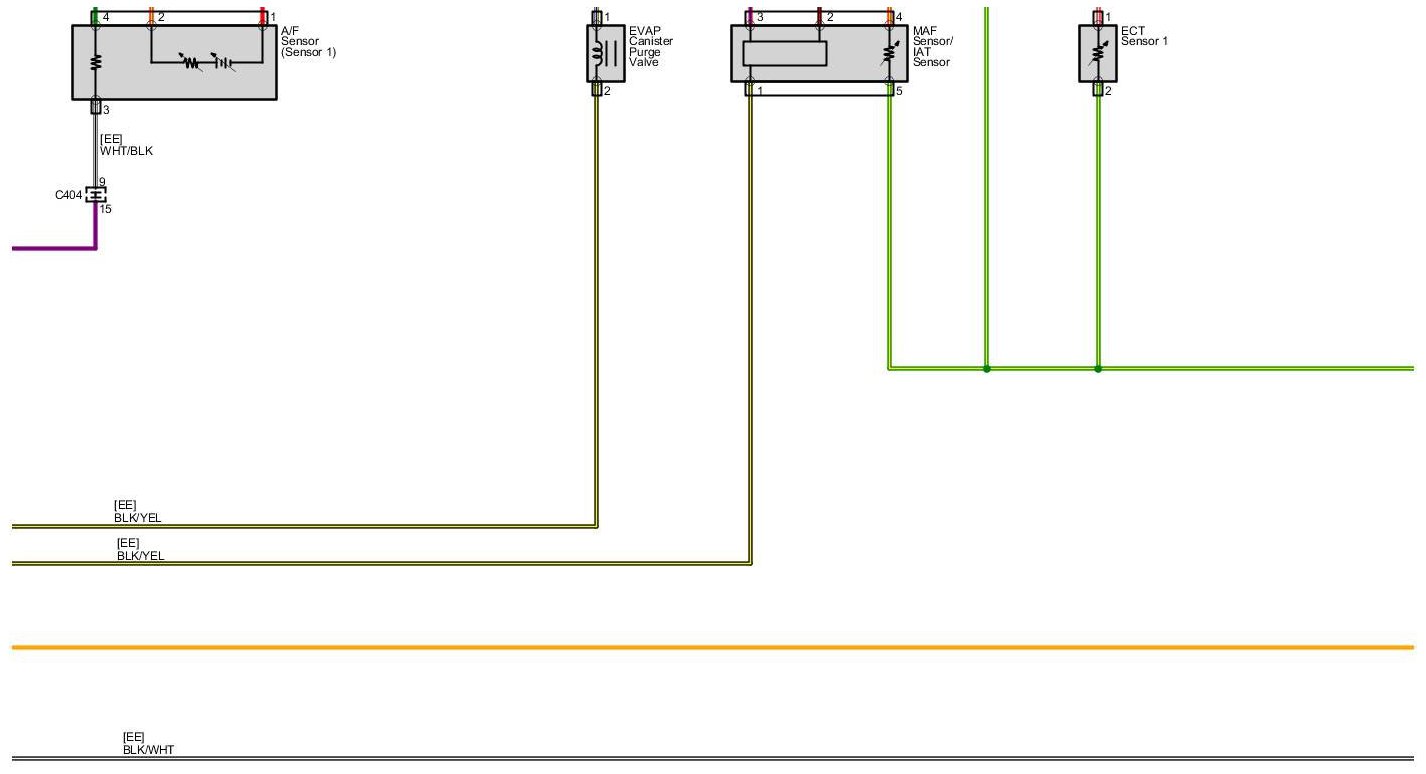

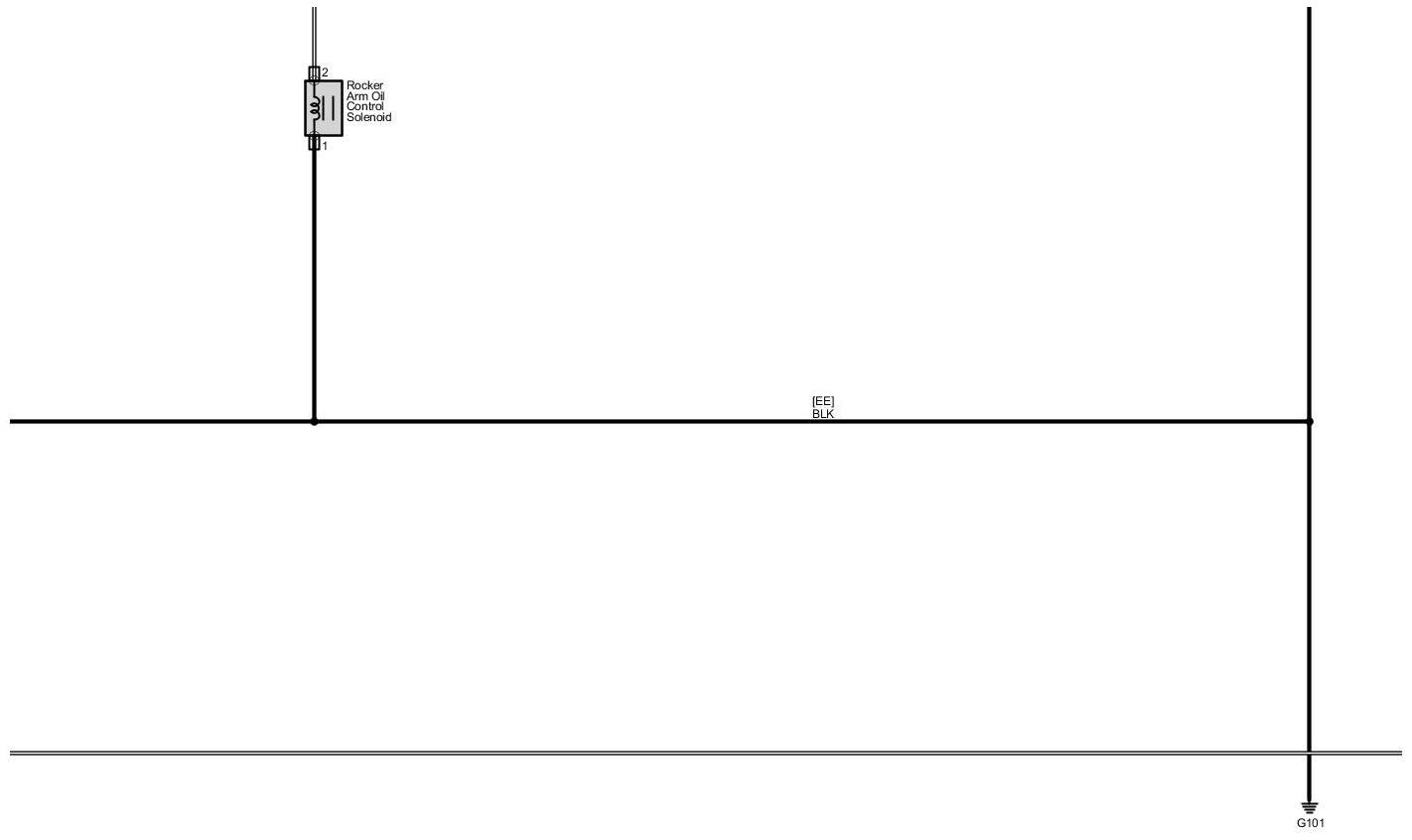

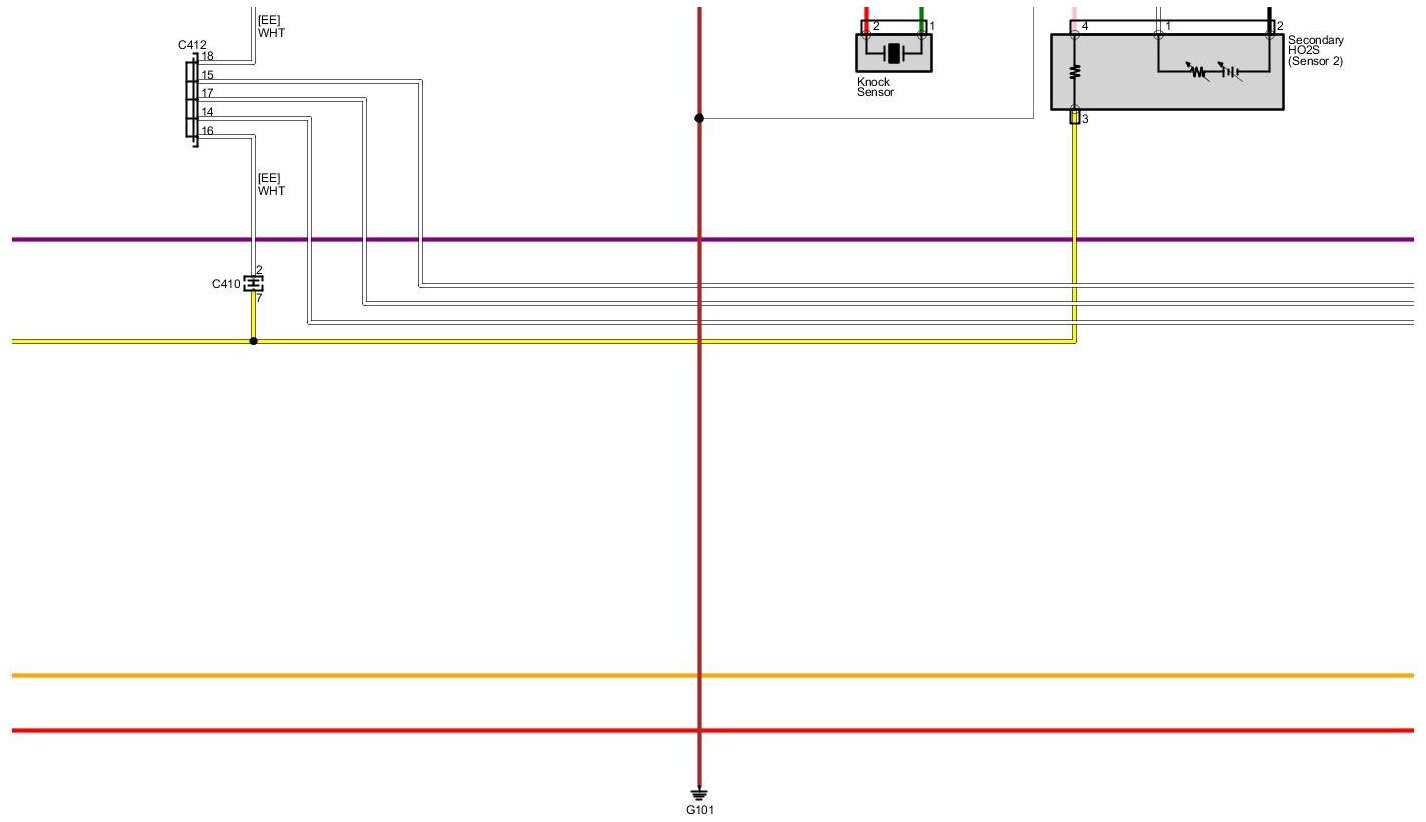

Fuel and Emissions - ECM/PCM (All)

KX Mexico Emissions, 4-door LX, FB2(1.8L_4door), MT Transmission with these options (Manual A/C)































































KX Mexico Emissions, 4-door EX, FB2(1.8L_4door), MT Transmission with these options (Cruise Control, Manual A/C)































































KX Mexico Emissions, 4-door SI, FB6(2.4L_4door), MT Transmission with these options (Moonroof/Sunroof, Cruise Control, Climate Control)
