Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
Civic HF L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

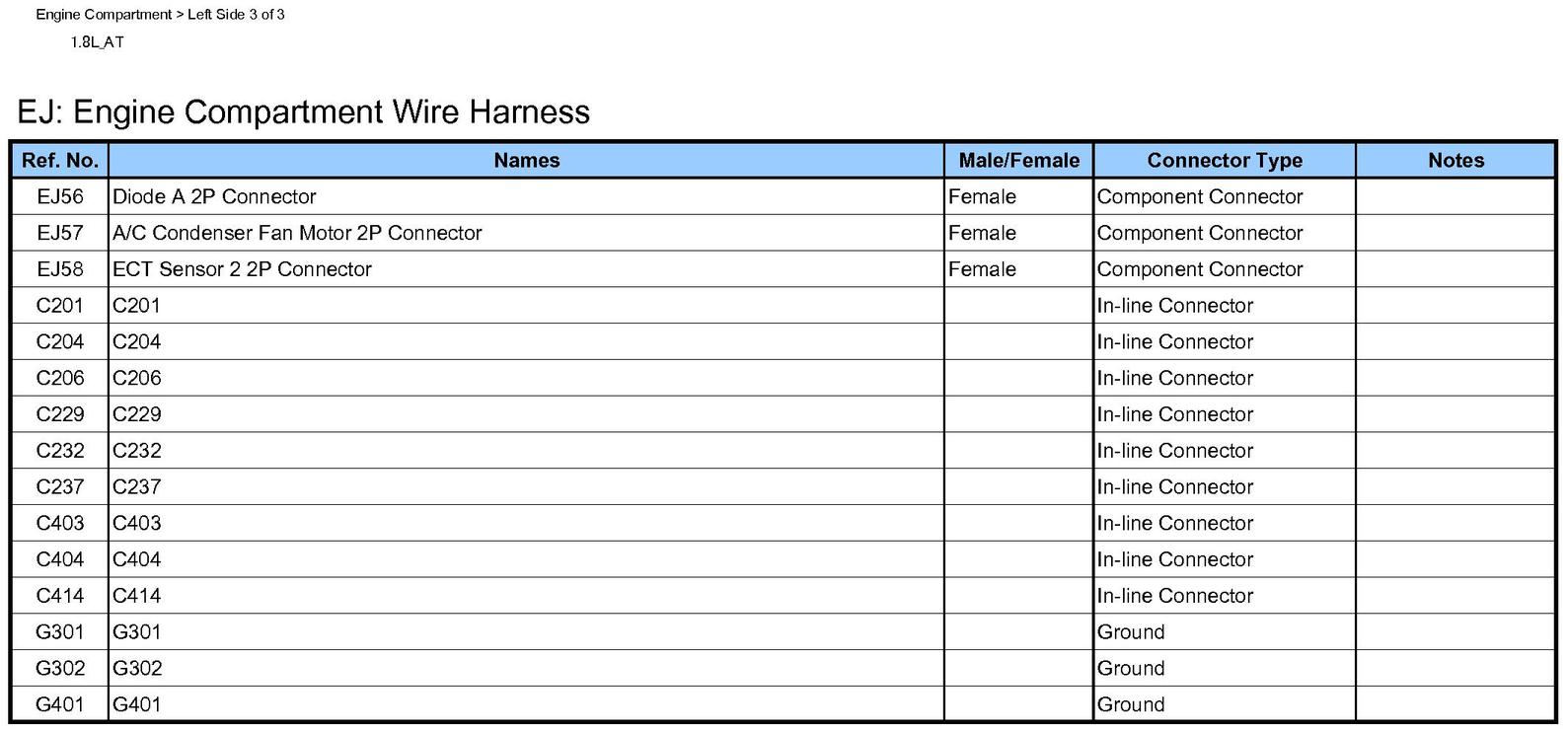

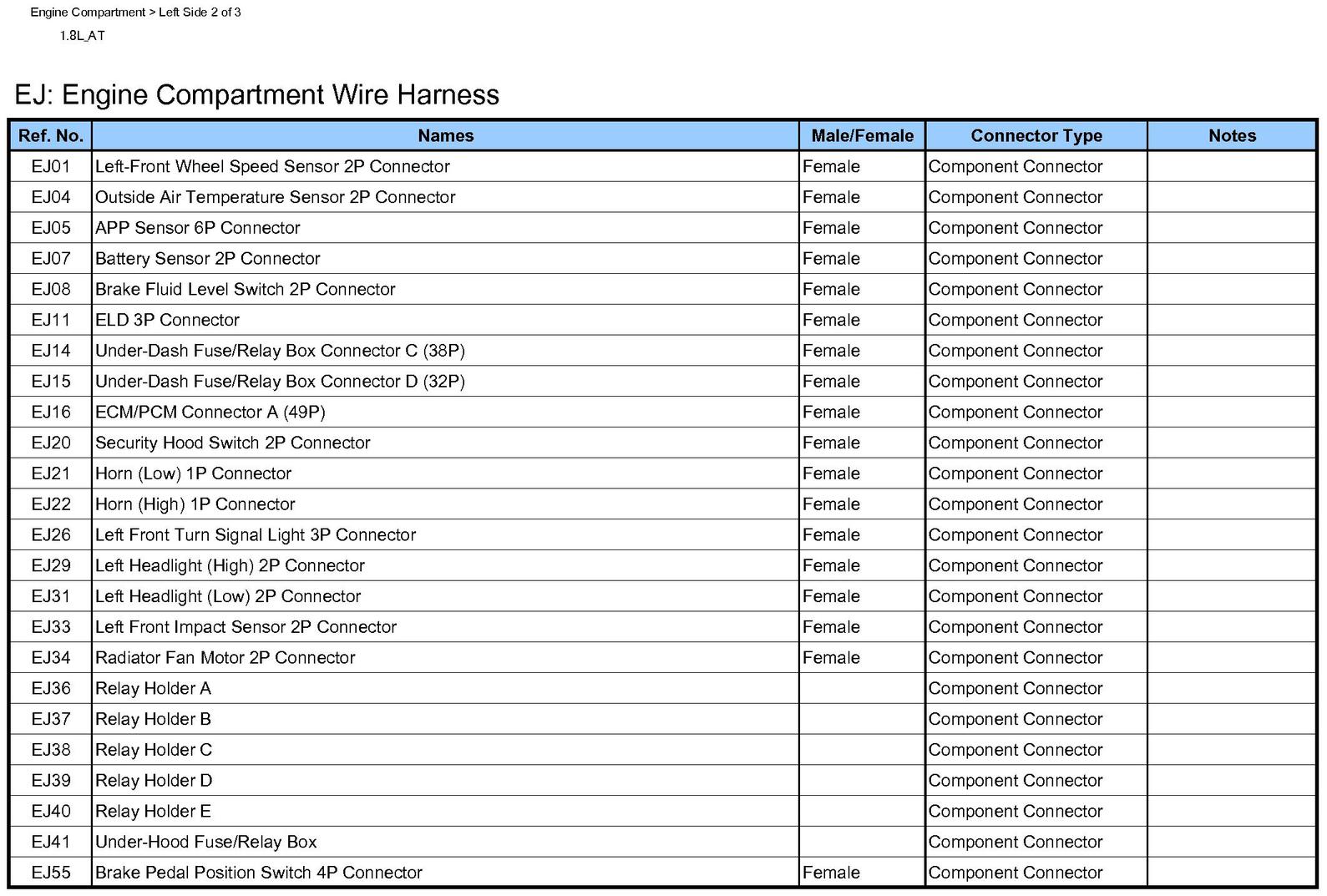

Connector and Harness Locations
>>

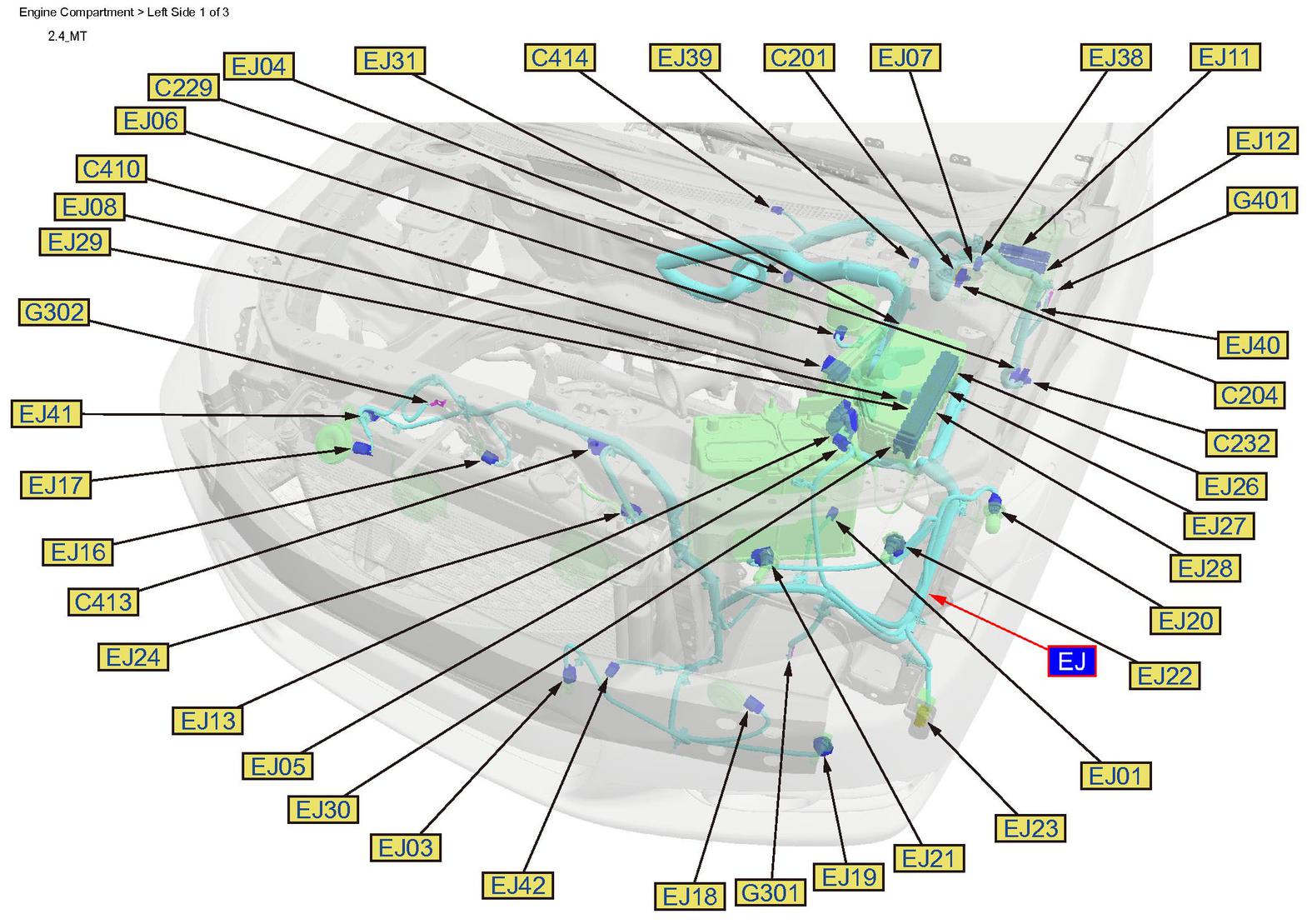

Engine Compartment - Left Side
Engine Compartment - Left Side
