Removal

Rocker Arm Assembly Removal and Installation

Removal

1. Engine Cover

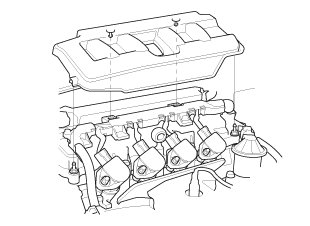

1. Remove the engine cover.

2. Cylinder Head Cover Peripheral Assembly

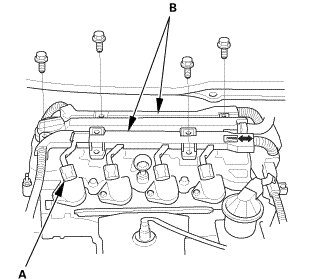

1. Disconnect the connecters (A).

2. Remove the harness holders (B).

3. Alternator Cable - Move

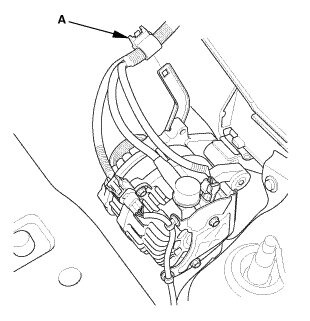

1. Remove the harness clamp (A).

4. Cylinder Head Cover and/or Packing

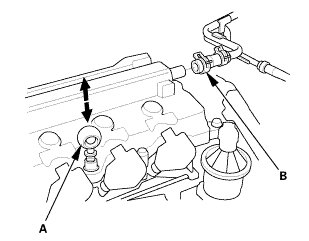

1. Remove the dipstick (A).

2. Disconnect the breather hose (B).

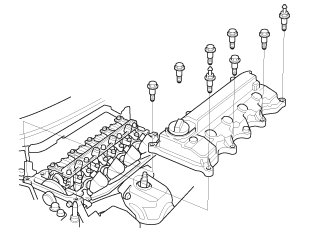

3. Remove the cylinder head cover.

5. Rocker Arm Assembly

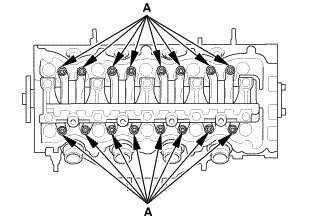

1. Loosen the locknuts and the adjusting screws (A).





2. Remove the lost motion holder bolts. To prevent damaging the lost motion holder and the rocker shaft.

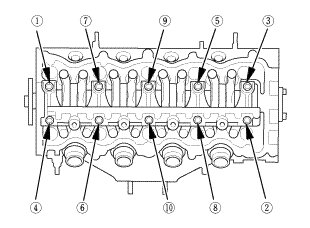

3. loosen the bolts, in sequence, two turns at a time.

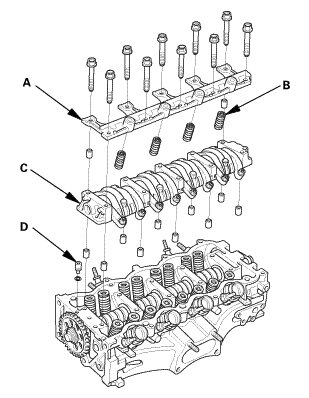

4. Remove the lost motion holder (A) and the lost motion assemblies (B).

5. Remove the rocker arm assembly (C).

6. Remove the oil control orifice (D).
