Engine Mode Switch: Service and Repair






ECON Switch Removal and Installation

Removal

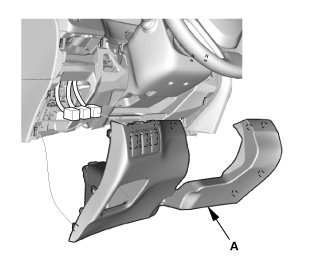

1. Driver's Dashboard Lower Cover





1. Remove the driver's dashboard lower cover (A).

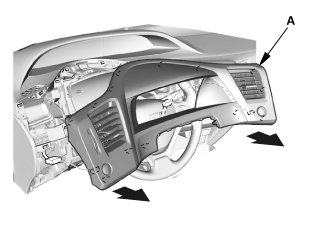

2. Dashboard Subdisplay Visor





1. Remove the dashboard subdisplay visor (A).

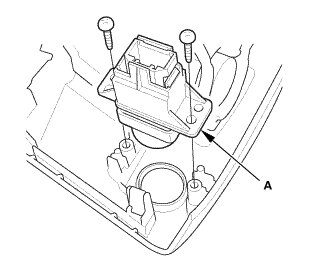

3. ECON Switch





1. Remove the ECON switch (A).

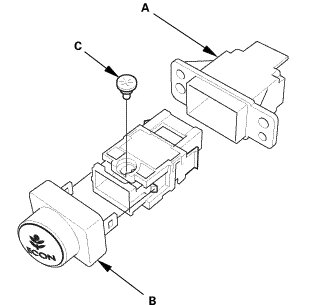

4. ECON Switch Bulb





1. Remove the rear cover (A).

2. Remove the front cover (B).

3. Remove the ECON switch bulb (C).

Installation

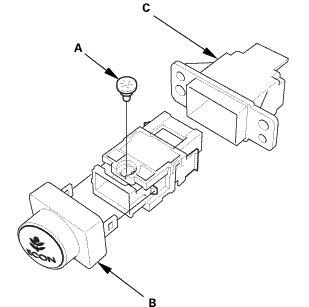

1. ECON Switch Bulb





1. Install the ECON switch bulb (A).

2. Install the front cover (B).

3. Install the rear cover (C).

2. ECON Switch





1. Install the ECON switch (A).

3. Dashboard Subdisplay Visor





1. Install the dashboard subdisplay visor (A).

4. Driver's Dashboard Lower Cover





1. Install the driver's dashboard lower cover (A).
