PCM A/T Control System PCM Inputs and Outputs




Trans/ Driveline

PCM A/T Control System PCM Inputs and Outputs

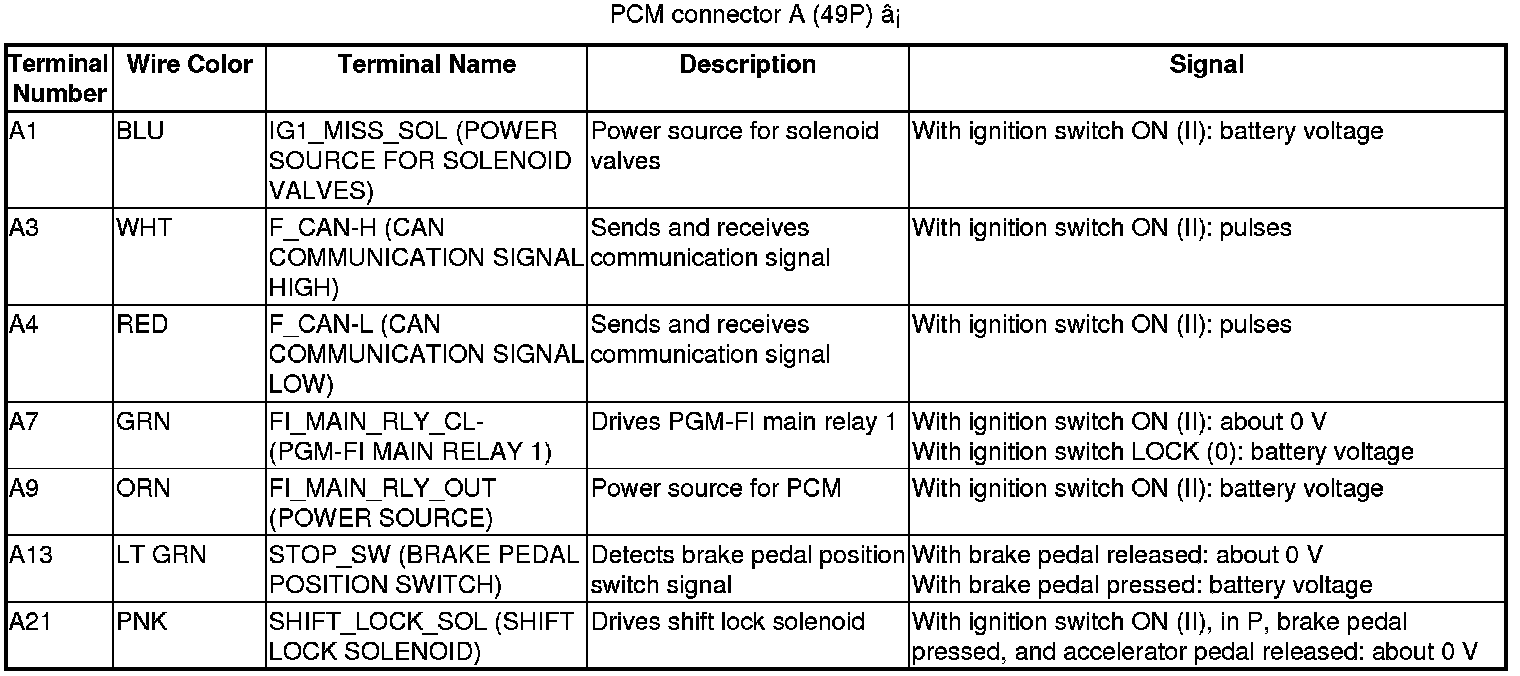

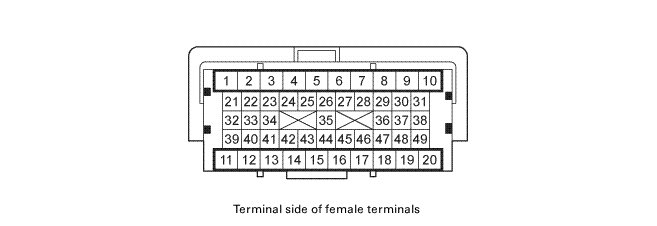

PCM A/T Control System Inputs and Outputs at PCM connector A (49P) (square)

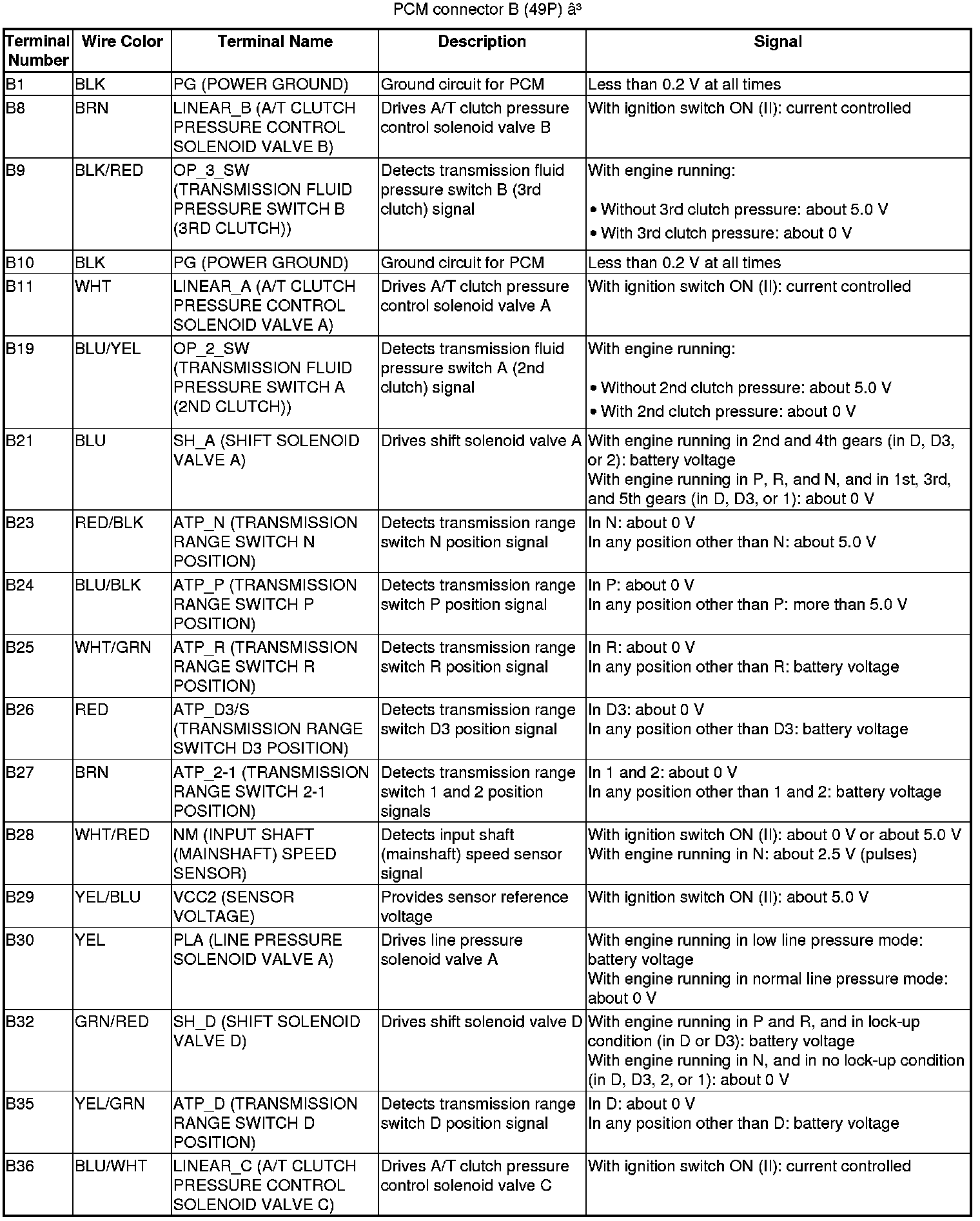

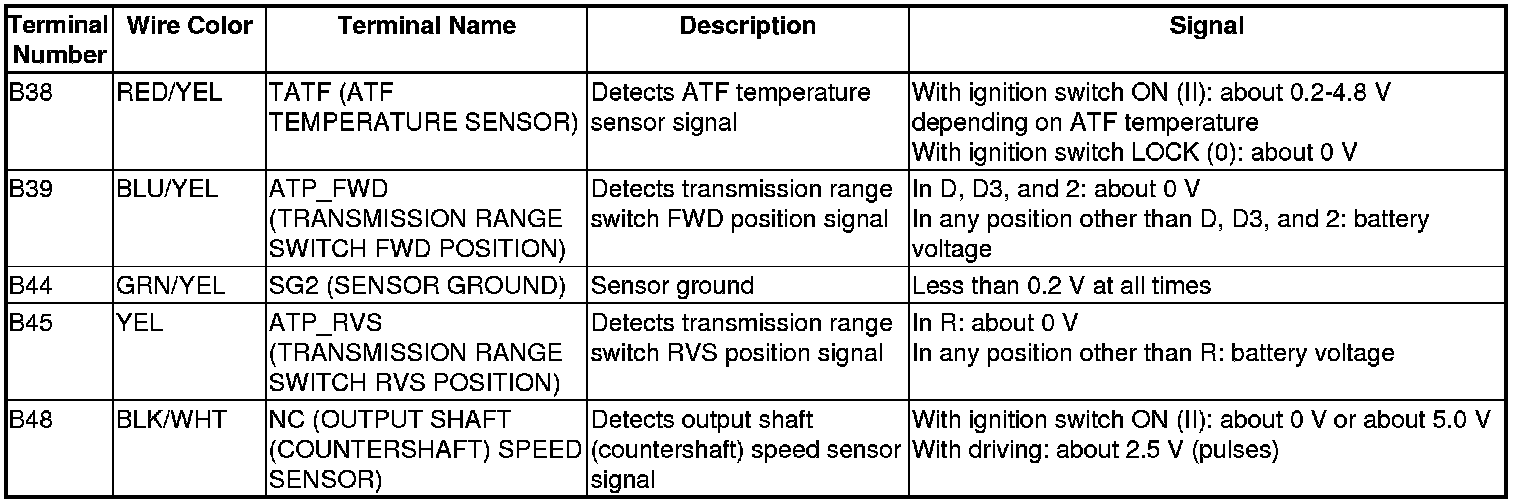

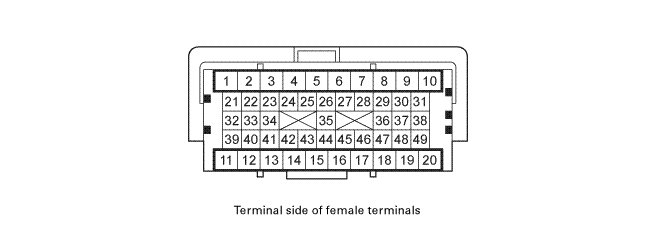

PCM A/T Control System Inputs and Outputs at PCM connector B (49P) (triangle)

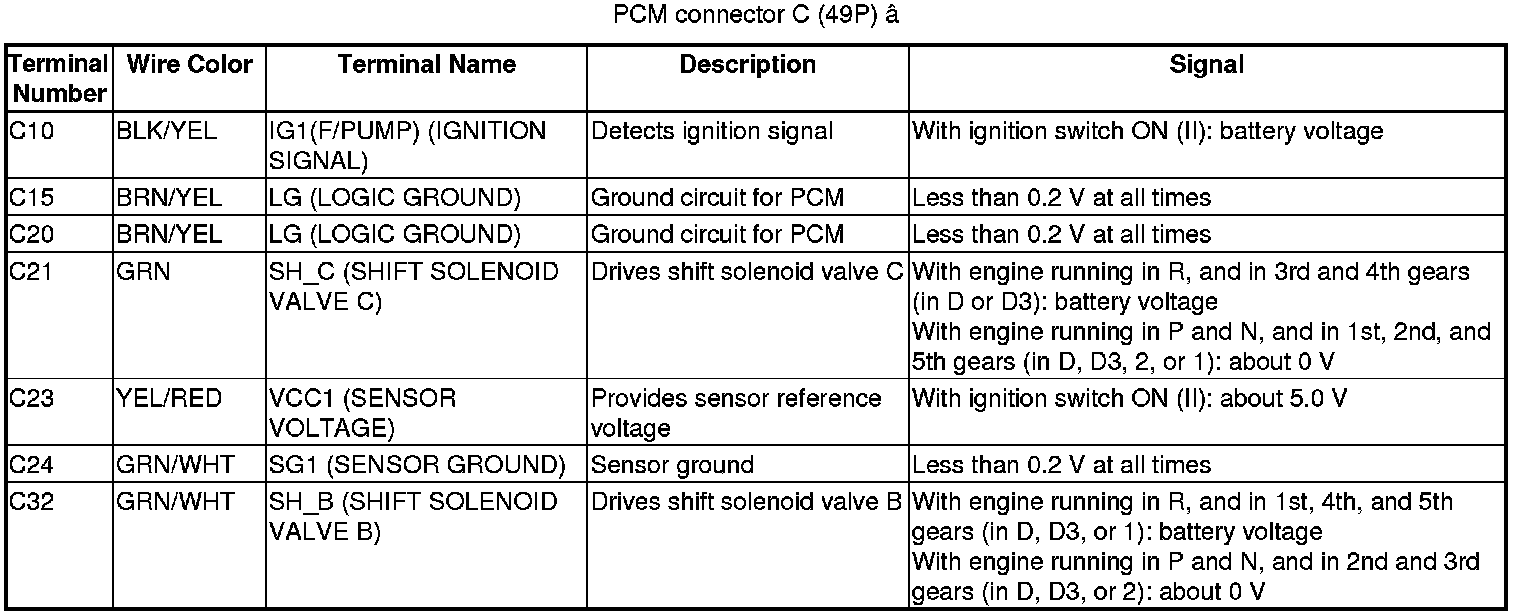

PCM A/T Control System Inputs and Outputs at PCM connector C (49P) (circle)
