Pinout Values and Diagnostic Parameters

Driving Support & Restraints

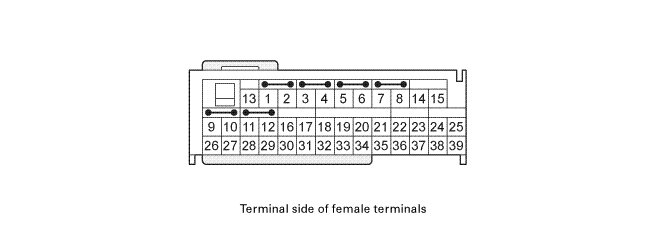

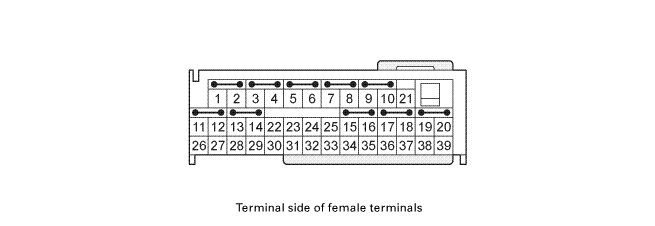

SRS Unit Connector for Inputs and Outputs

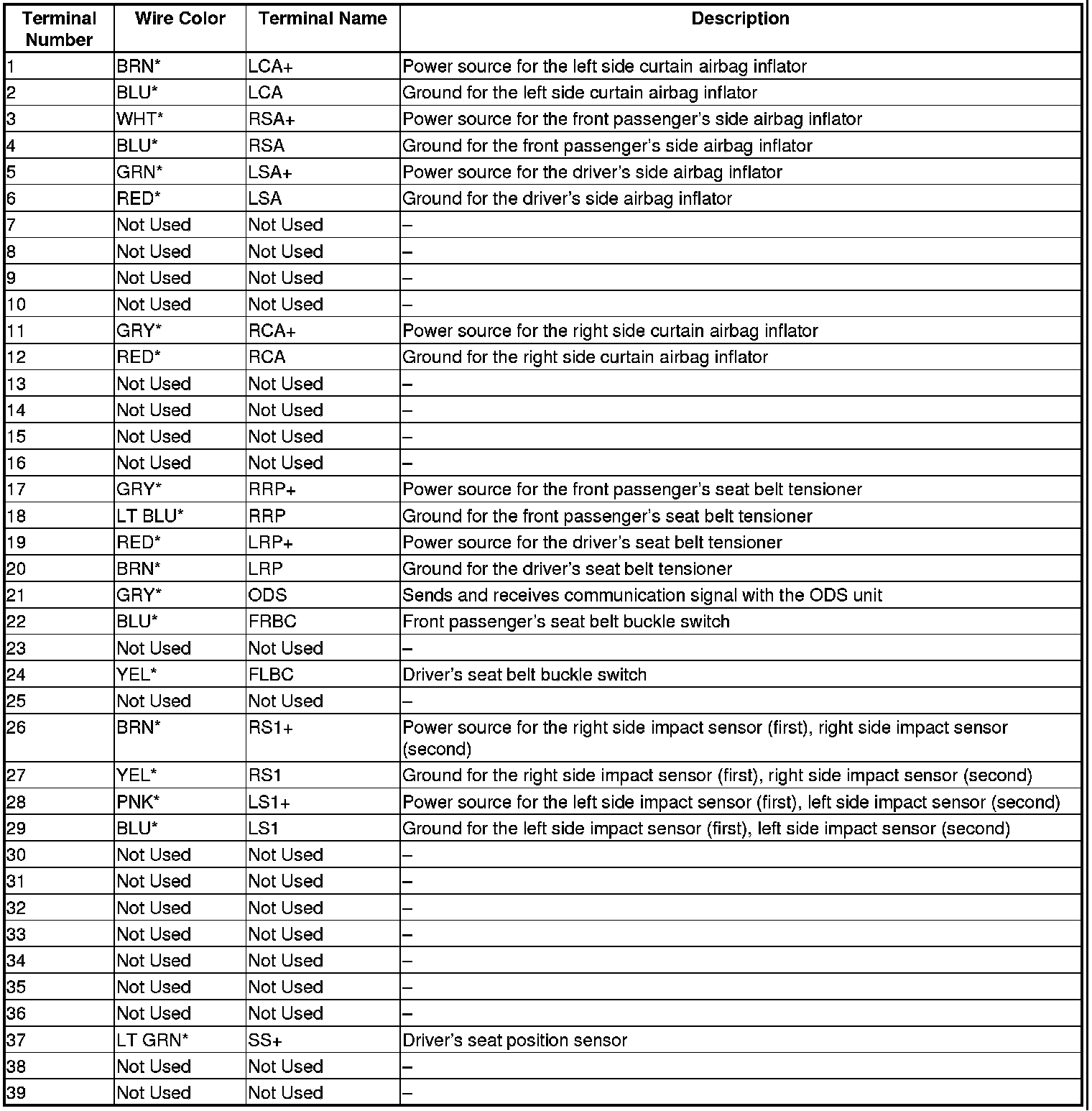

SRS Unit Inputs and Outputs at Connector A (39P) (USA and Canada models)










*: Wire colors may be substituted in this table.

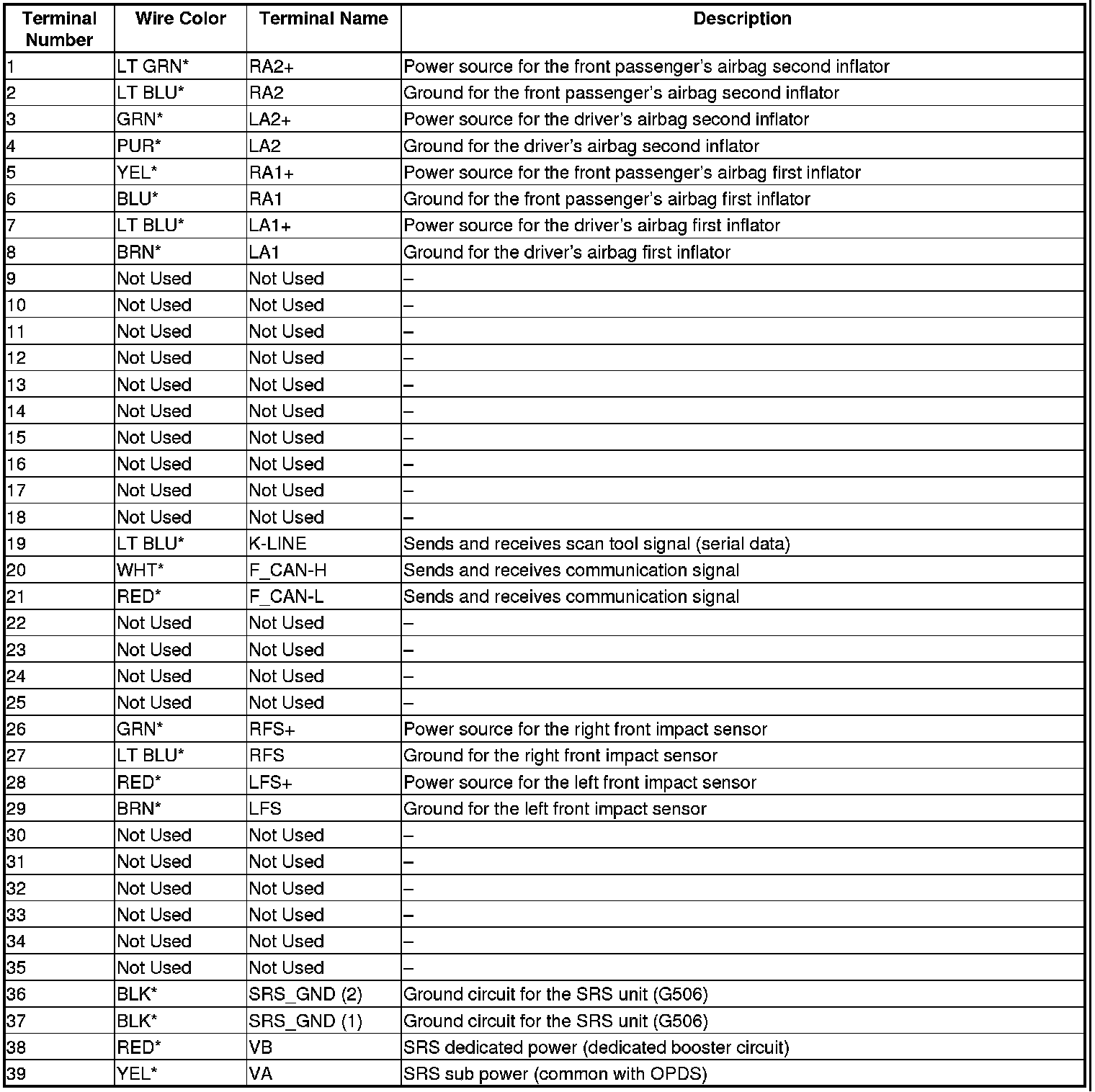

SRS Unit Inputs and Outputs at Connector B (39P) (USA and Canada models)










*: Wire colors may be substituted in this table.

SRS Unit Inputs and Outputs at Connector A (39P) (Mexico models)










*: Wire colors may be substituted in this table.

SRS Unit Inputs and Outputs at Connector B (39P) (Mexico models)










*: Wire colors may be substituted in this table.
