Removal

Front Passenger's Weight Sensor Removal and Installation

Removal

NOTE:
* SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.
* The front passenger's weight sensor is part of the seat rail and must be replaced as an assembly.

1. Battery Terminal (SRS) - Disconnection





1. Make sure the ignition switch is in LOCK (0).

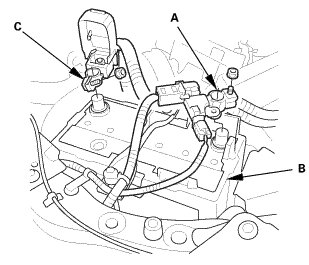

2. Disconnect and isolate the negative cable and battery sensor (A) from the battery (B).

NOTE: Always disconnect the negative side first.

3. Disconnect the positive cable (C) from the battery.

4. Wait at least 3 minutes before starting work.

2. Front Seat Belt Lower Anchor Bolt - Passenger's Side





2-door

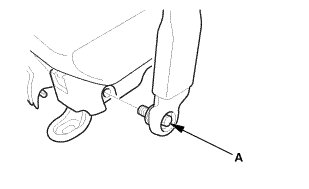

1. Remove the lower anchor bolt (A).





4-door

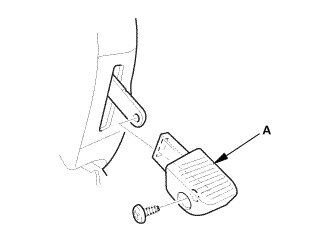

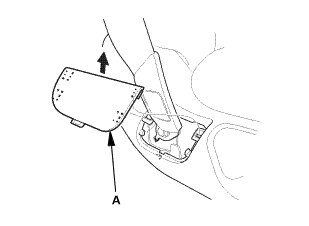

1. Remove the anchor cover (A).





2. Remove the lower anchor bolt (A).

3. Head Restraint - Passenger's Side

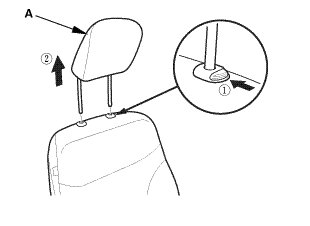

1. Remove the head restraint (A).

4. Front Seat - Passenger's Side

2-door





4-door

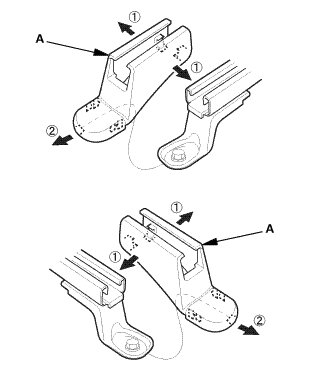

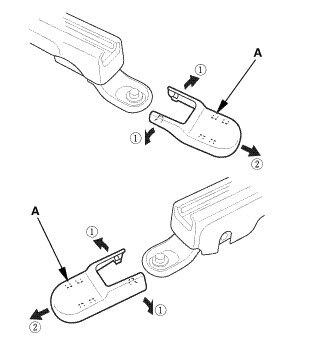

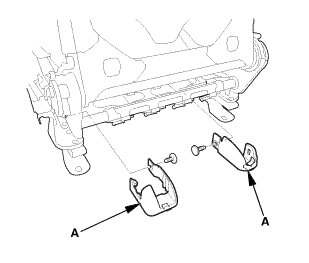

1. Remove both seat track end covers (A).

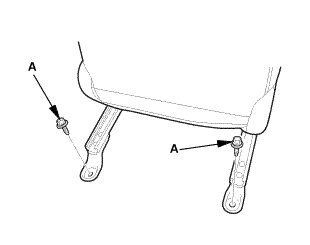

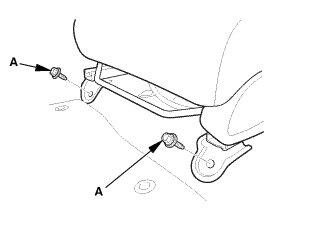

2. Remove the seat mounting front bolts (A).





3. Remove the seat mounting rear bolts (A).

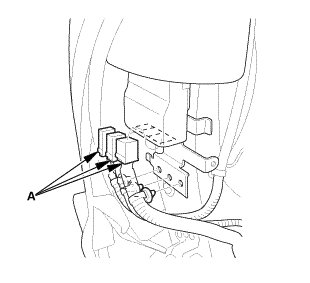

4. Disconnect the connectors (A).

5. Front Seat Recline Cover - Passenger's Side

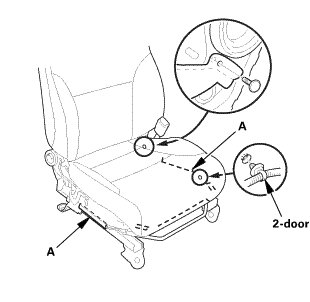

1. 2-door: Remove the rear seat access knob (A).

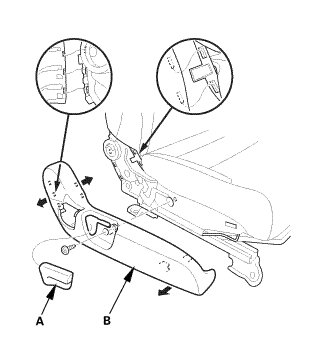

2. Remove the recline knob (A).

3. Remove the recline cover (B).

6. Front Seat Center Cover - Passenger's Side

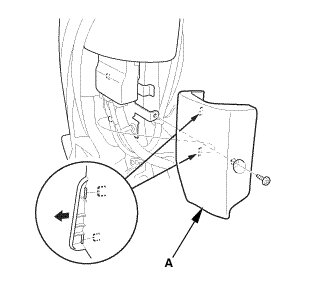

1. Remove the center cover (A).

7. Front Seat Cushion - Passenger's Side

2-door





4-door





1. Release the hooks (A).





2. With seat heater: Disconnect the connector (B).

3. With seat heater: Detach the harness clip (C).

4. With seat heater: Release the holders (D).

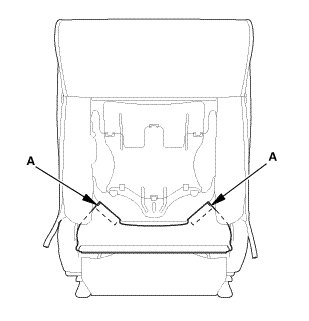

5. Release the Velcro fasteners (A).

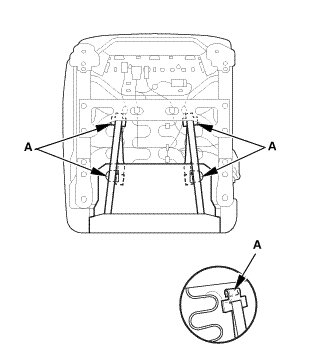

6. Release the hook strips (A).





7. Release the hook strips (A).

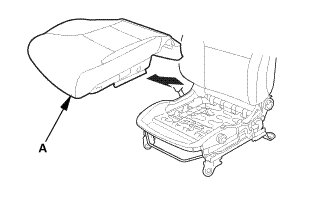

8. Remove the seat cushion cover/pad (A).

8. Front Seat-Back As Needed - Passenger's Side

2-door





4-door

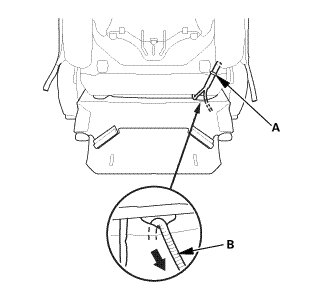

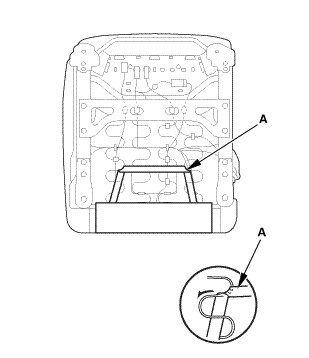

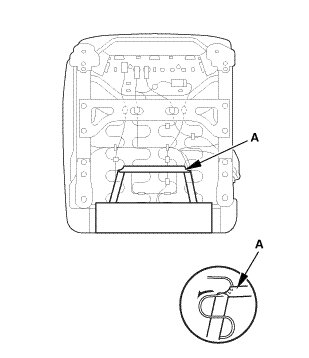

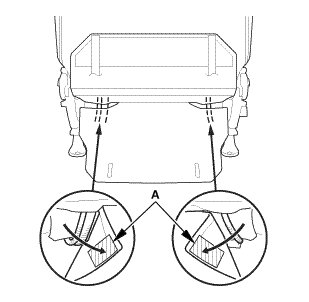

1. Release the strap(s) (A).

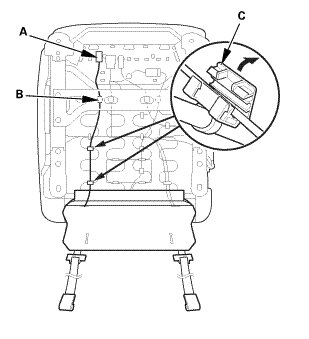

2. Detach the connector clip (A).

3. Detach the harness clip (B).

4. Release the holders (C).

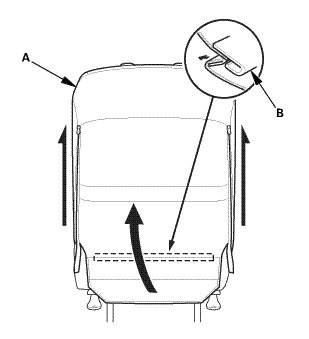

5. Unzip the seat-back cover (A).

6. Release the hook strip (B).

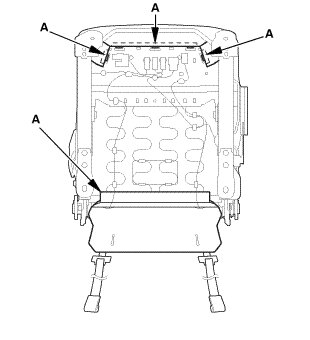

7. Release the hook strips (A).





8. Detach the harness clips (A).

9. Pull out the harness (B).

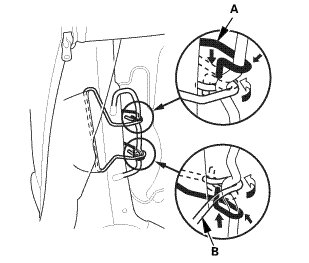

10. Release airbag attachment wires A and B.





11. Remove the cover (A).

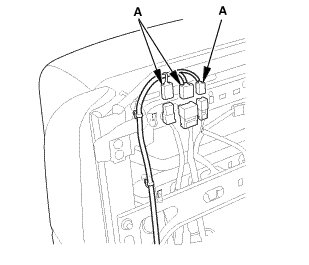

12. Disconnect the connectors (A).





13. Release the hooks (A).

14. Detach the harness clips (B).

9. Front Seat Belt Buckle - Passenger's Side

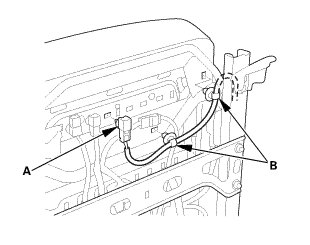

1. Detach the connector clip (A) and the harness clip(s) (B).





2. Remove the seat belt buckle (A).

10. Front Seat Frame - Passenger's Side

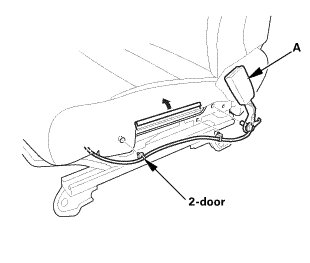

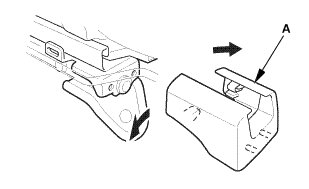

1. 2-door: Remove the front rail cover (A).

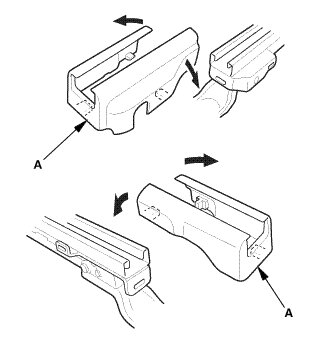

2. 2-door: Remove both rear rail covers (A).

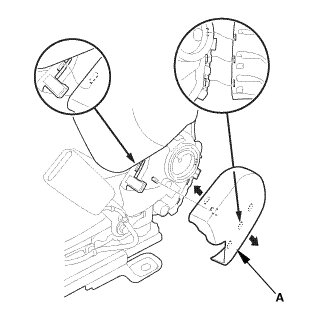

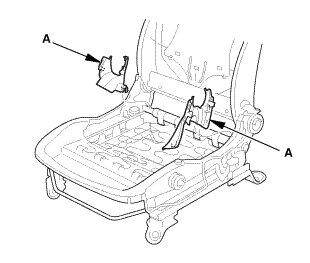

3. Remove the recline inner covers (A).





4. Remove the upper rail covers (A).

2-door





4-door

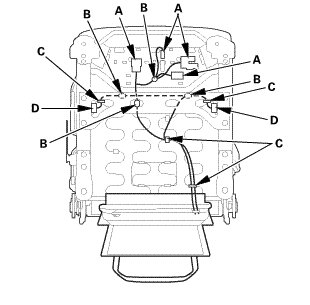

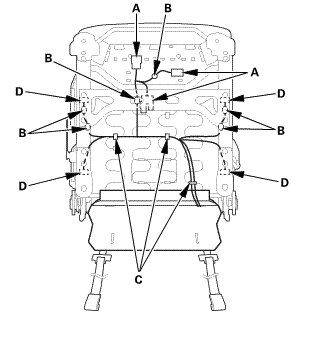

5. Detach the connector clips (A) and the harness clips (B).

6. Remove the wire ties (C).

7. Disconnect the connectors (D).

11. Front Passenger's Seat Rail/Front Passenger's Weight Sensors as an Assembly

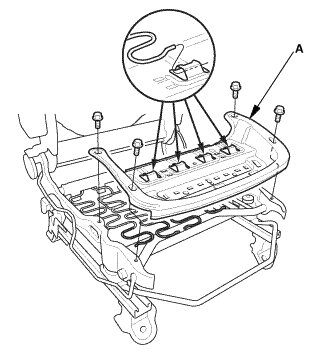

1. Remove the seat cushion frame (A).

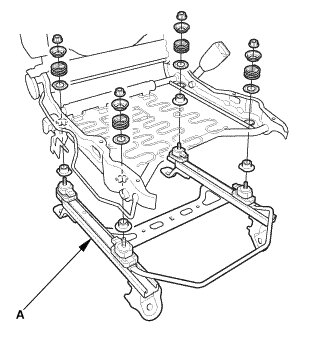

2. Remove the TORX nuts using a TORX E18 socket, then remove the front passenger's seat rail/front passenger's weight sensors as an assembly (A).
