Seat Occupant Sensor: Testing and Inspection

Front Passenger's Weight Sensor Output Check After a Vehicle Collision

Procedure

NOTE: Check the front passenger's weight sensor output after this action:
* After a vehicle collision.

1. Test Drive

1. Drive the vehicle, accelerate to 22 mph (36 km/h), then stop on level ground.

2. HDS DLC - Connection

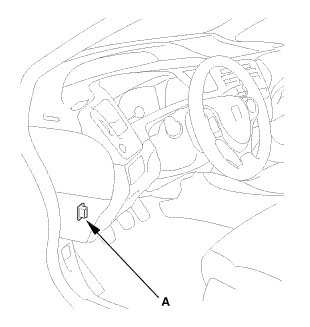

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

3. Front Passenger's Weight Sensor Output Check After a Vehicle Collision

Pre-Operation Check Set-Up

* Make sure all the components of the front passenger's seat are correctly installed.
* Position the front passenger's seat all the way rearward, and adjust the seat-back to the forward most position. Do not move the seat from this position until the output check is completed.
* Make sure nothing is on the front passenger's seat, including aftermarket seat covers or mats.
* Make sure there is nothing in the front passenger's seat-back pocket.
* Keep the windows and the moonroof closed.
* Do all initialization procedures, except test-driving, in the service bay.
* Make sure the vehicle is on level ground.
* Dehumidify inside of the vehicle with A/C.
* Do not touch the front passenger's seat during the operation check.
* Do not expose the front passenger's seat to sudden temperature changes.
* Make sure all aftermarket devices such as amplifiers, fluorescent light, air purifiers, CB or HAM radios, etc. are turned off.

1. From the HDS Main Menu, select SRS, then Inspection. In the Inspection Menu, select AFTER A VEHICLE COLLISION. Follow the prompts until the front passenger's weight sensor output check has been completed.

2. Turn the ignition switch to LOCK (0).
