Seat Temperature Switch: Service and Repair

Seat Heater Switch Removal and Installation

Removal

1. Center Lower Panel

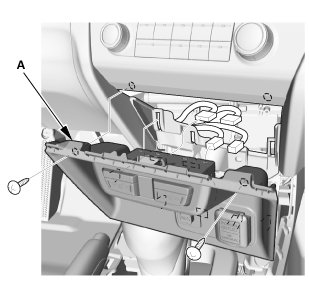

1. Remove the center lower panel (A).

NOTE: Take care not to scratch the center console panel or the related parts.

2. Seat Heater Switch

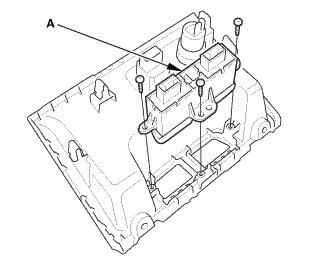

1. Remove the seat heater switch (A).

Installation

1. Seat Heater Switch





1. Install the seat heater switch (A).

2. Center Lower Panel





1. Install the center lower panel (A).

NOTE: Take care not to scratch the center console panel or the related parts.
