Seat Temperature Switch: Testing and Inspection

Seat Heater Switch Test

Removal

1. Center Lower Panel

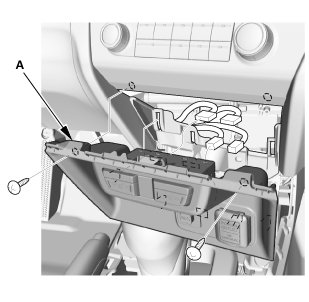

1. Remove the center lower panel (A).

NOTE: Take care not to scratch the center console panel or the related parts.

Test

1. Seat Heater Switch - Test









1. Check for continuity between the terminals in each switch position according to the table.

NOTE:
* Make sure the correct test lead (+or -) is placed on the terminal.
* When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
* Be aware of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

2. If the continuity is not as specified, replace the switch.

Installation

1. Center Lower Panel





1. Install the center lower panel (A).

NOTE: Take care not to scratch the center console panel or the related parts.
