Clutch Pedal Position Switch A Removal and Installation

Engine

Clutch Pedal Position Switch A Removal and Installation

Removal

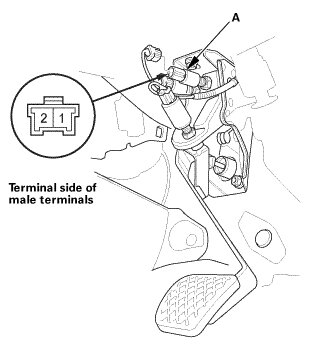

1. Clutch Pedal Position Switch A





1. Remove clutch pedal position switch A.

Installation

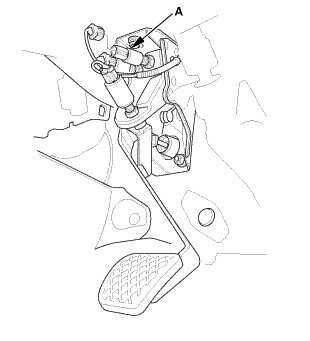

1. Clutch Pedal Position Switch A





1. Install clutch pedal position switch A.

2. HDS DLC - Connection

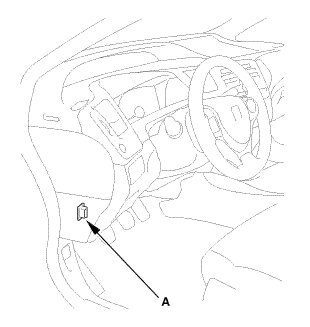

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

3. Clutch Pedal Position Switch A Adjustment

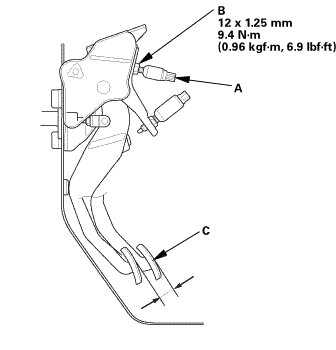

1. Loosen the clutch pedal position switch A locknut (B).

2. Fully press the clutch pedal to the floor, then release the clutch pedal 17.5-22.5 mm (0.689-0.886 in) and hold it there.

NOTE: Measure the clutch pedal height from middle of the clutch pedal cover or the clutch pedal pad cover (C).

3. Check CLUTCH PEDAL POSITION SWITCH A in the PGM-FI DATA LIST with the HDS.

4. Adjust clutch pedal position switch A when the HDS screen indicates CLOSE to OPEN.

NOTE: Be careful not to twist the wire.

5. While holding clutch pedal position switch A, tighten the locknut.

6. Check the clutch pedal does not contact to the clutch pedal position switch A body when fully pressing the clutch pedal to the floor.

4. Check Operation Check

1. Check the clutch operation.
