Driveshaft Inspection

Driveshaft Inspection

Inspection

1. Driveshaft Inspection





1. Check the driveshaft for cracks and damage. If any damage is found, replace the driveshaft.

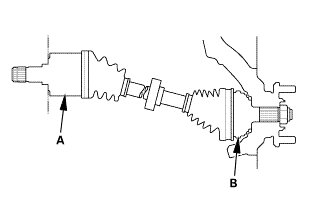

2. Check the inboard joint (A) and the outboard joint (B) for cracks and damage. If any damage is found, replace the inboard joint or the outboard joint as an assembly.

3. Hold the inboard joint and turn the front wheel by hand, then make sure the joint is not excessively loose. If necessary, replace the inboard joint or the outboard joint as an assembly.
