M/T Change Lever Assembly Disassembly and Reassembly

M/T Change Lever Assembly Disassembly and Reassembly

View

NOTE: Prior to reassembling, clean all parts in solvent, dry them, and apply grease to contact surfaces as shown. Do not wash the rubber parts with solvent.

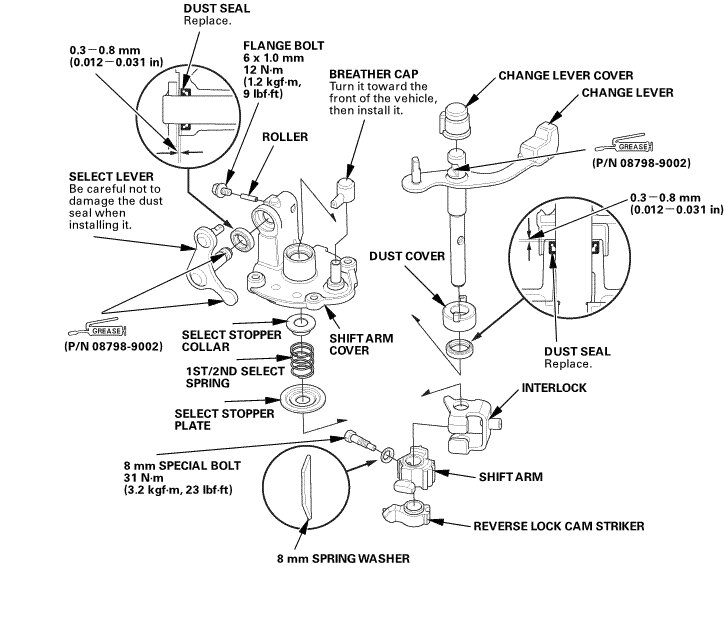

1. M/T Change Lever Exploded View

Exploded View
