Rear Door Window Regulator: Service and Repair

Rear Door Regulator Removal and Installation

Removal

1. Rear Door Power Window Switch Panel

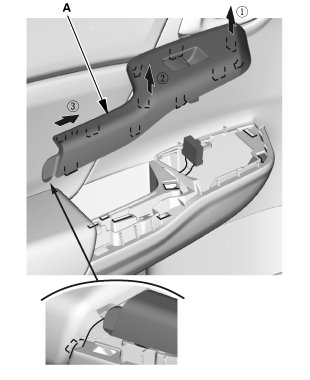

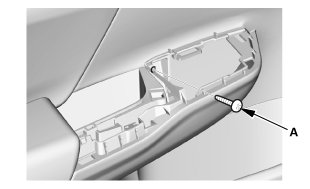

1. Remove the power window switch panel (A).

2. Rear Door Panel

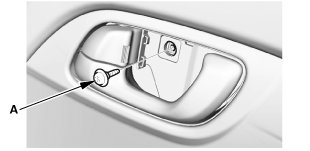

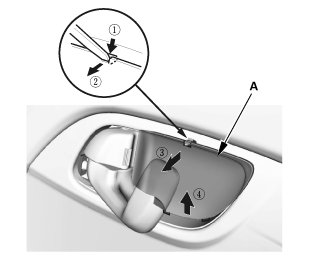

1. Remove the inner handle cap (A).

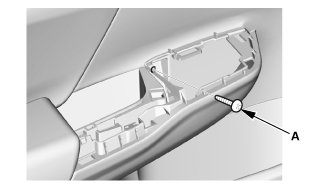

2. Remove the screw (A).





3. Remove the screw (A).

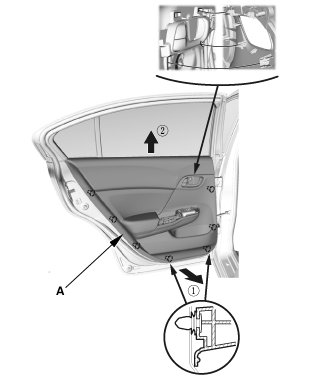

4. Remove the door panel (A).

3. Rear Door Plastic Cover

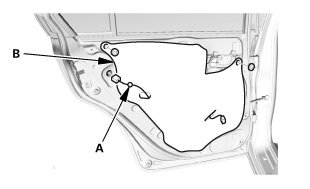

1. Detach the harness clip (A).

2. Remove the plastic cover (B).

4. Rear Door Glass - Support

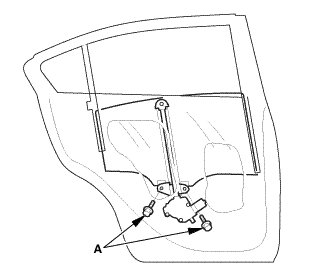

1. Remove the bolts (A).

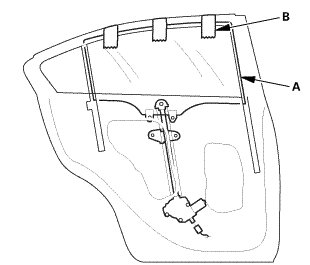

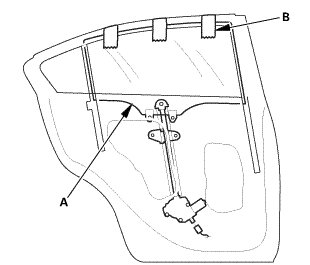

2. Secure the glass (A) with tape (B).

5. Rear Door Regulator

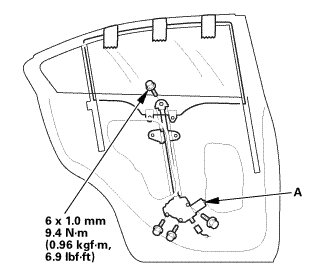

1. Remove the regulator (A).

Installation

1. Rear Door Regulator

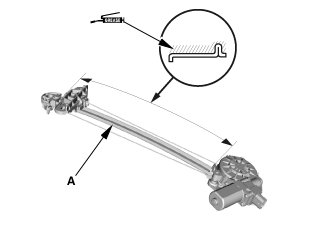

1. Apply multipurpose grease to all the sliding surfaces of the regulator (A).





2. Install the regulator (A).

2. Rear Door Glass - Support





1. While holding the glass (A), remove the tape (B).

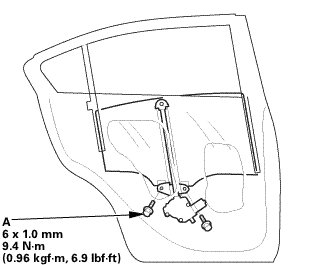

2. Install the bolts (A).

3. Rear Door Plastic Cover





1. Install the plastic cover (A).

2. Install the harness clip (B).

4. Rear Door Panel





1. Install the door panel (A).





2. Install the screw (A).





3. Install the screw (A).





4. Install the inner handle cap (A).

5. Rear Door Power Window Switch Panel





1. Install the power window switch panel (A).
