Camshaft Position Sensor: Service and Repair

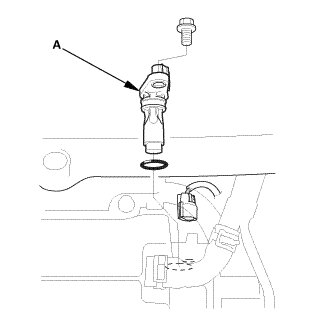

CMP Sensor Removal and InstallationRemoval1. CMP Sensor 1.
Disconnect the connector.
2.
Remove the CMP sensor (A).

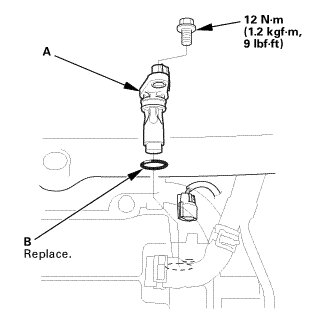

Installation1. CMP Sensor 1.
Install the CMP sensor (A) with a new O-ring (B).
2.
Connect the connector.
