Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
Civic Si L4-2.4L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Diagrams
>>
Electrical Diagrams
>>
Audio System Circuit Diagram (With Navigation)

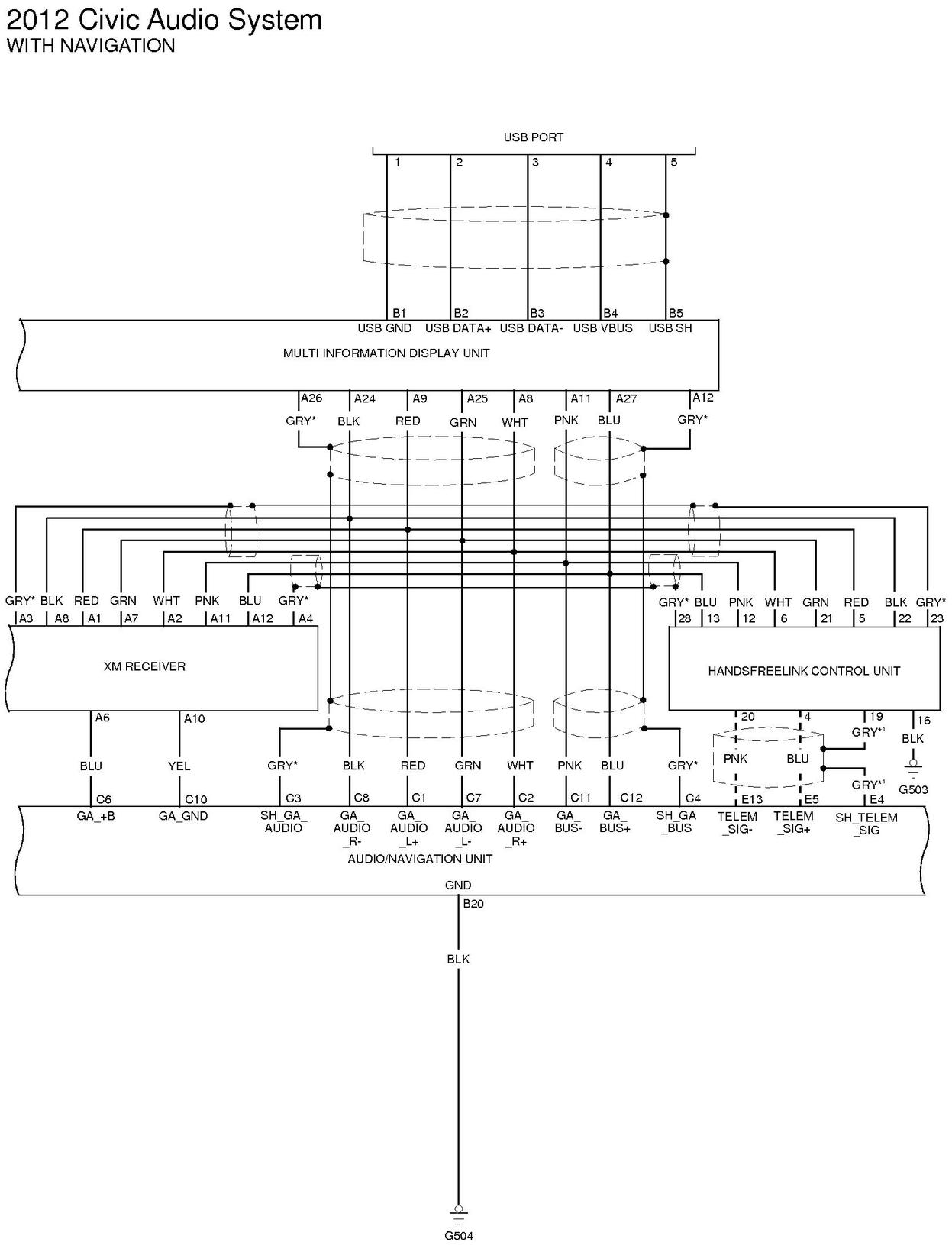

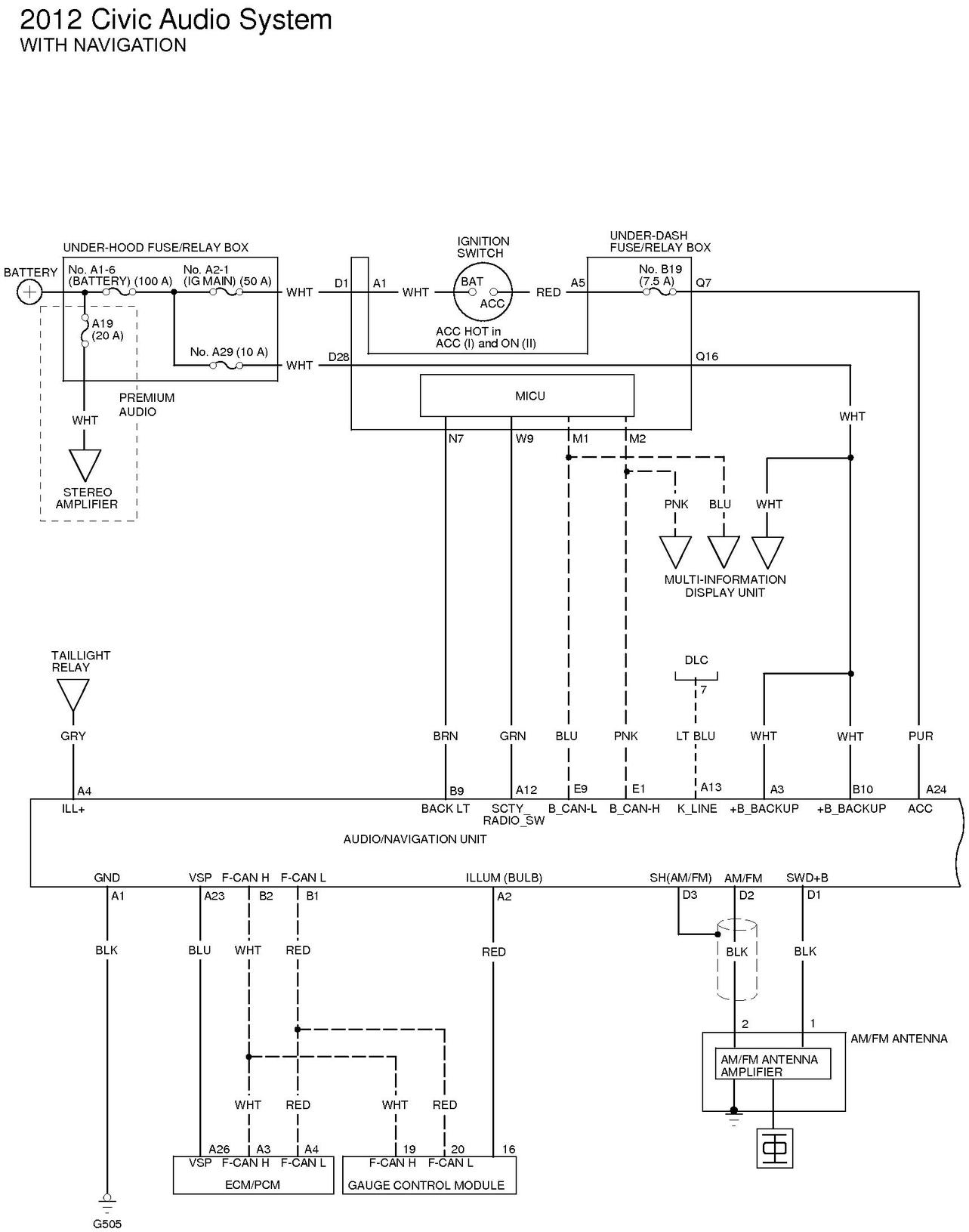

Audio System Circuit Diagram (With Navigation)
Audio System Circuit Diagram (Premium Audio with Navi)
