Front Door Speaker Removal, Installation, and Test (4-door)

Front Door Speaker Removal, Installation, and Test

Removal

1. Front Door Power Window Switch Panel (4-door)

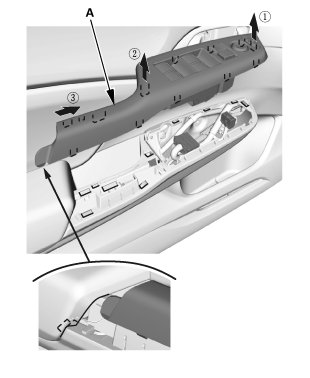

1. Remove the power window switch panel (A).

2. Front Door Panel - Driver's Side (4-Door)





1. Remove the inner handle cap (A).





2. Remove the screw (A).





3. Remove the screw (A).





4. Remove the door panel (A).

3. Front Door Speaker





1. Remove the screw, then lift the front door speaker (A) straight up to release the lower clips (B).

2. Disconnect the connector.

Test

1. Front Door Speaker - Test





1. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ohms.

2. If the resistance is not as specified, replace the front door speaker (A).

Installation

1. Front Door Speaker





1. Connect the connector.

2. Install the front door speaker (A).

2. Front Door Panel - Driver's Side (4-Door)





1. Install the door panel (A).





2. Install the screw (A).





3. Install the screw (A).





4. Install the inner handle cap (A).

3. Front Door Power Window Switch Panel (4-door)





1. Install the power window switch panel (A).
