Part One

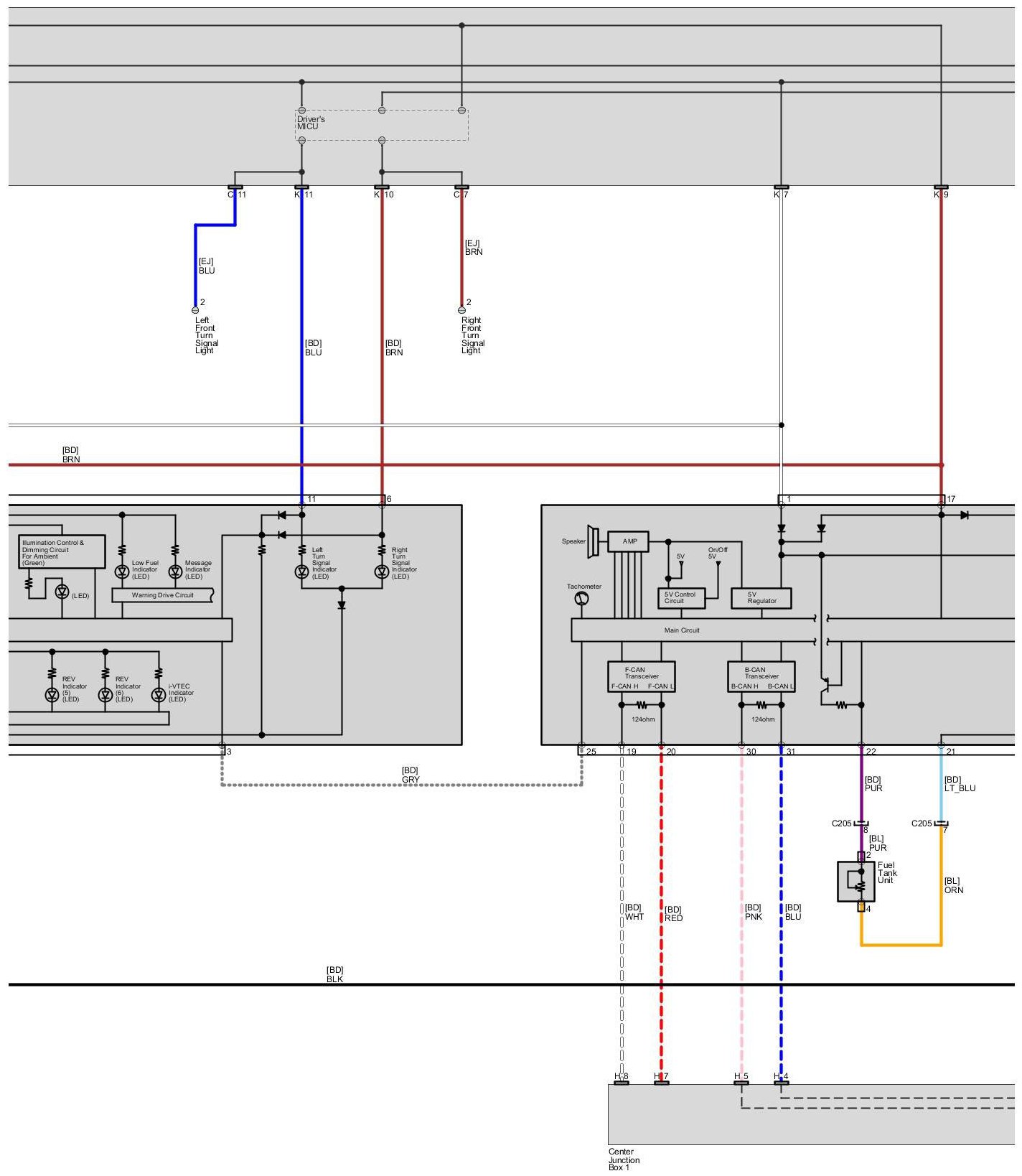

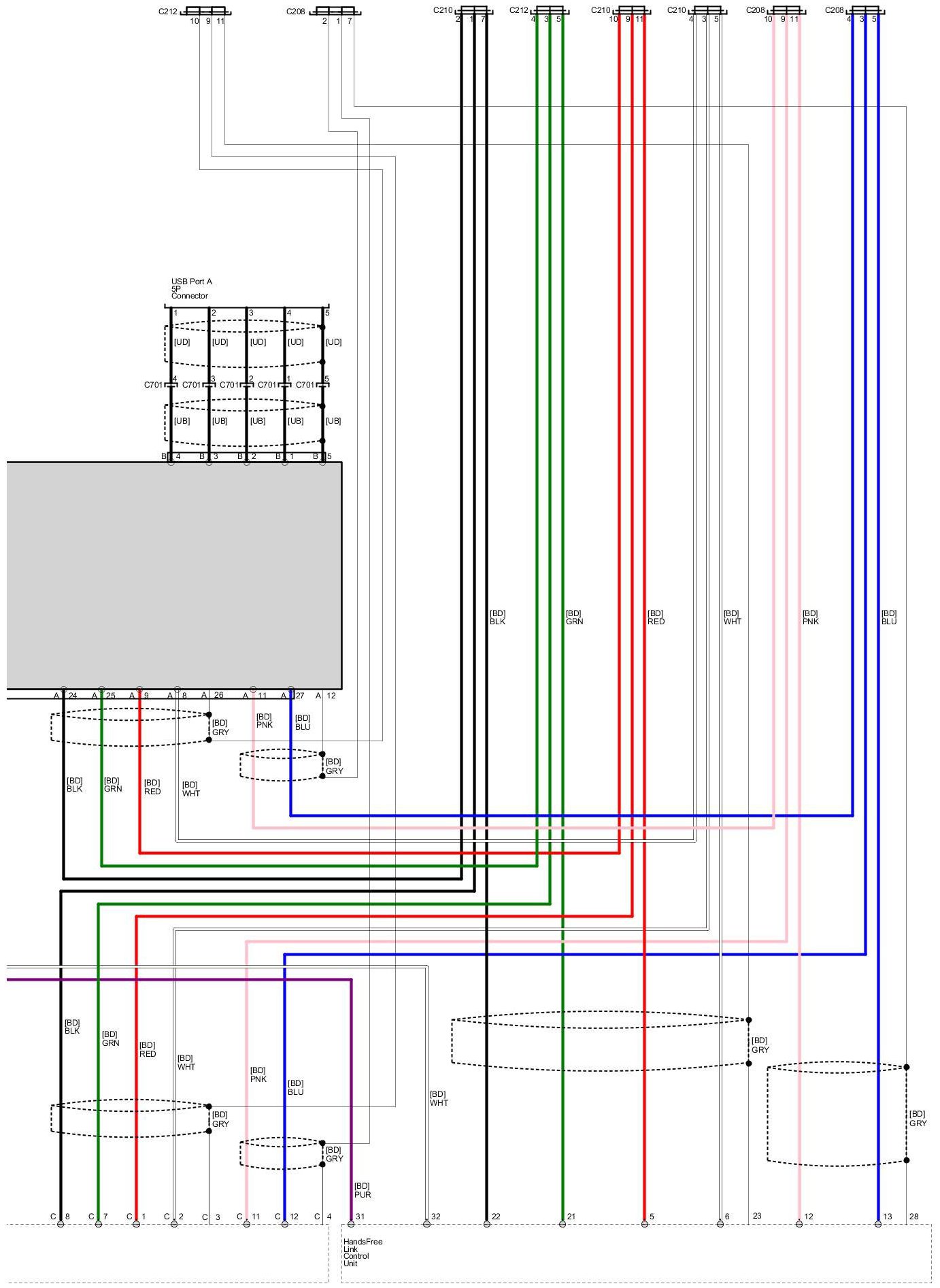

Body - Gauges

KC Canada Emissions, 4-door DX, FB2(1.8L_4door), MT Transmission
KC Canada Emissions, 4-door DX, FB2(1.8L_4door), MT Transmission with these options (Manual A/C)





















KC Canada Emissions, 4-door LX, FB2(1.8L_4door), MT Transmission with these options (Cruise Control, Manual A/C)
























KC Canada Emissions, 4-door EX, FB2(1.8L_4door), MT Transmission with these options (Moonroof/Sunroof, Cruise Control, Manual A/C)
























KC Canada Emissions, 4-door SI, FB6(2.4L_4door), MT Transmission with these options (Moonroof/Sunroof, Cruise Control, Manual A/C)
























KC Canada Emissions, 4-door SI, FB6(2.4L_4door), MT Transmission with these options (Moonroof/Sunroof, Navigation, Cruise Control, Manual A/C)
