Part Three

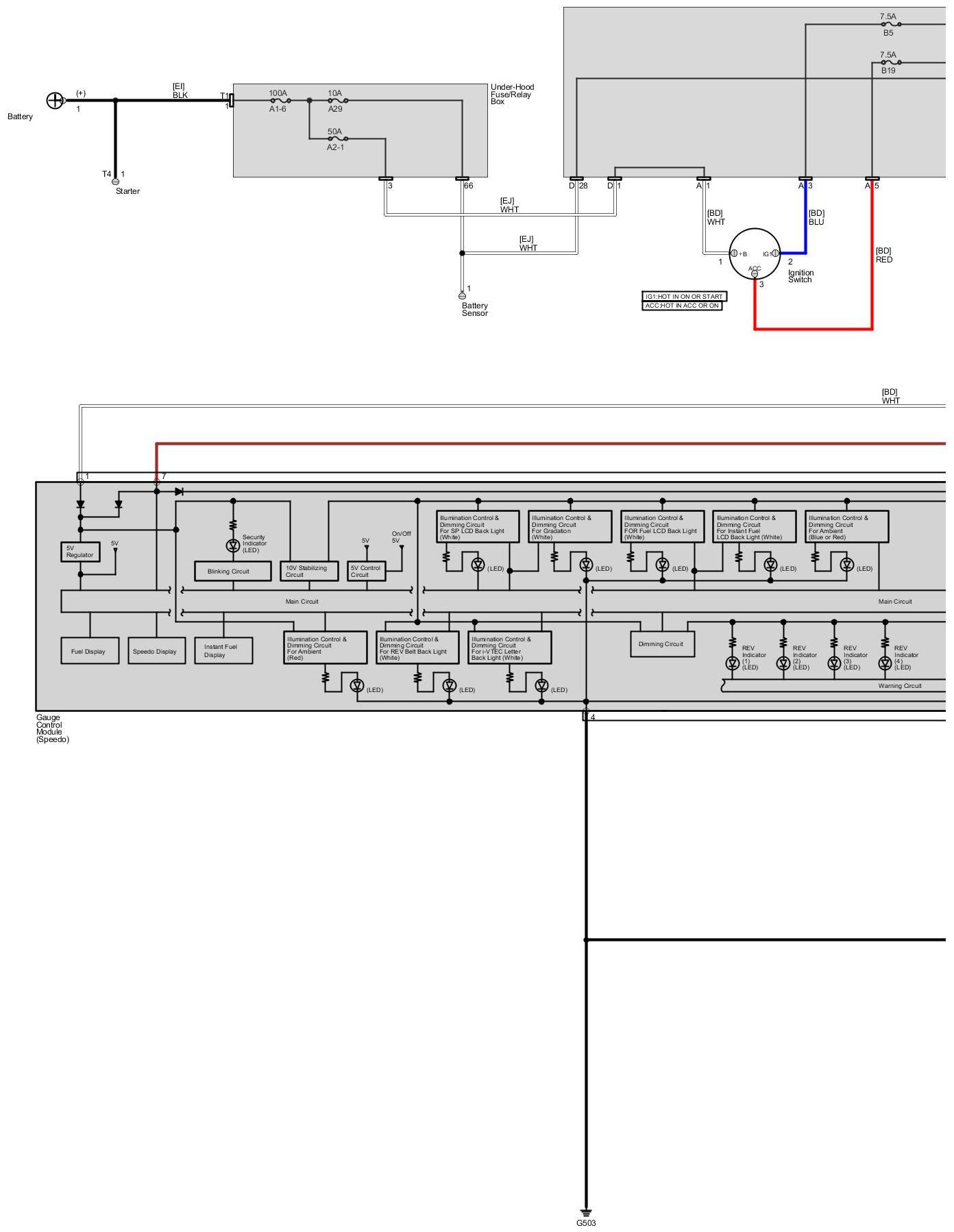

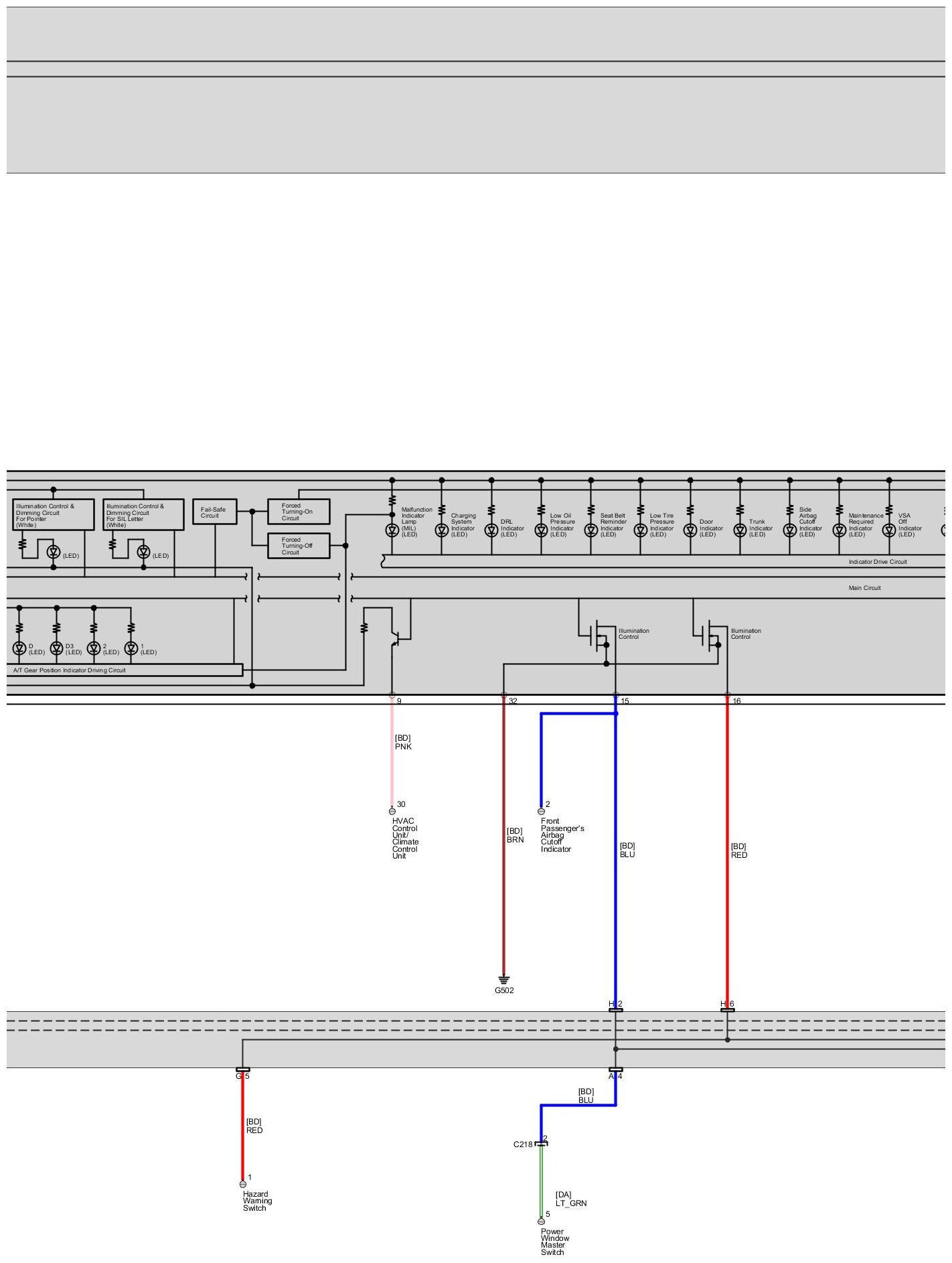

Body - Gauges



KC Canada Emissions, 2-door DX, FG3(1.8L_2door), MT Transmission with these options (Manual A/C)





















KC Canada Emissions, 2-door LX, FG3(1.8L_2door), MT Transmission with these options (Cruise Control, Manual A/C)
























KC Canada Emissions, 2-door EX, FG3(1.8L_2door), MT Transmission with these options (Moonroof/Sunroof, Cruise Control, Manual A/C)
























KC Canada Emissions, 2-door SI, FG4(2.4L_2door), MT Transmission with these options (Moonroof/Sunroof, Cruise Control, Manual A/C)
























KC Canada Emissions, 2-door SI, FG4(2.4L_2door), MT Transmission with these options (Moonroof/Sunroof, Navigation, Cruise Control, Manual A/C)
