Horn: Service and Repair
Horn Test/Replacement 1.
Remove the front grille cover
Front Grille Cover Replacement.
2.

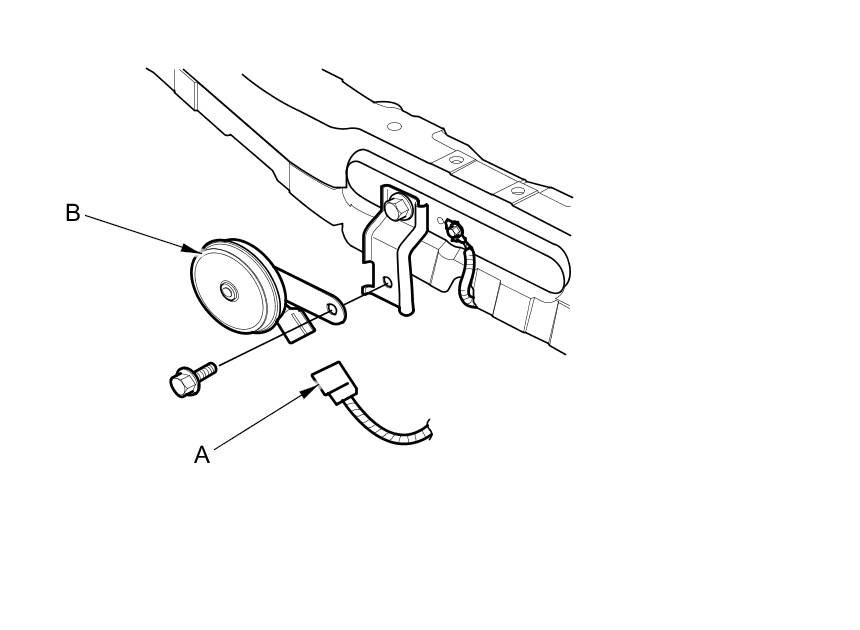

Disconnect the 1P connector (A) from the
horn (B).
3.

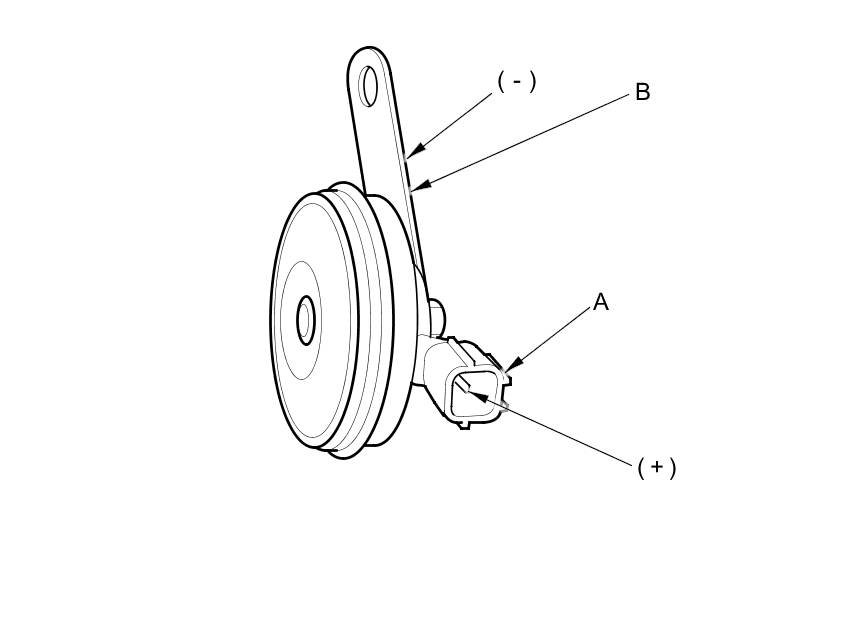

Test the
horn by momentarily connecting battery power to the terminal (A) and body ground to the bracket (B).
The
horn should sound.
4.
If the
horn does not sound, replace it.
