Entertainment System Control Panel: Service and Repair

Rear Controller and Screen Removal/Installation

Ultrawide RES Type

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the headliner and display cover.

1. Remove the wireless remote control.

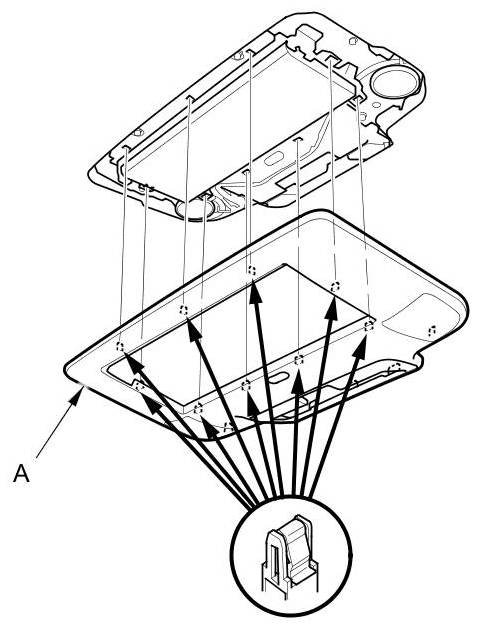

2. Remove the display cover (A).

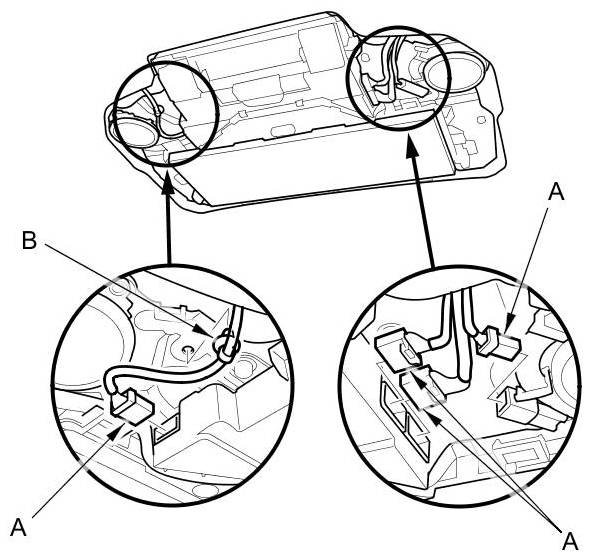

3. Disconnect the connectors (A), and detach the clip (B).






4. Remove the bolts (A). Pull the rear controller (B) forward, under the headliner to release the hooks, then pull the rear controller back and down to remove.





5. Install the rear controller and screen in the reverse order of removal, and make sure the rear controller and screen connector are plugged in properly.

RES Type

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the headliner and display cover.

1. Remove the wireless remote control.

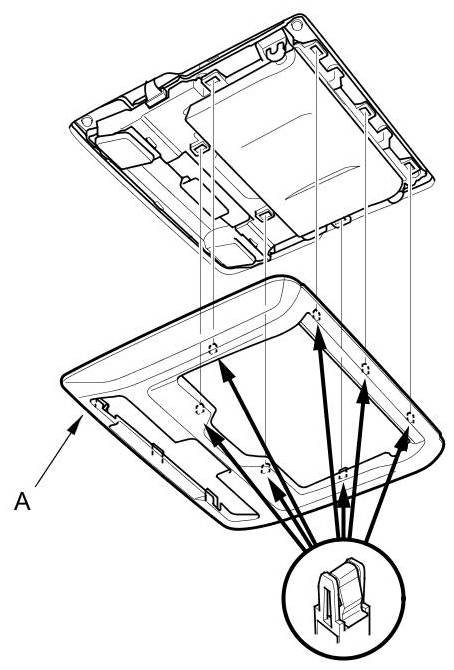

2. Remove the display cover (A).






3. Disconnect the connector (A).

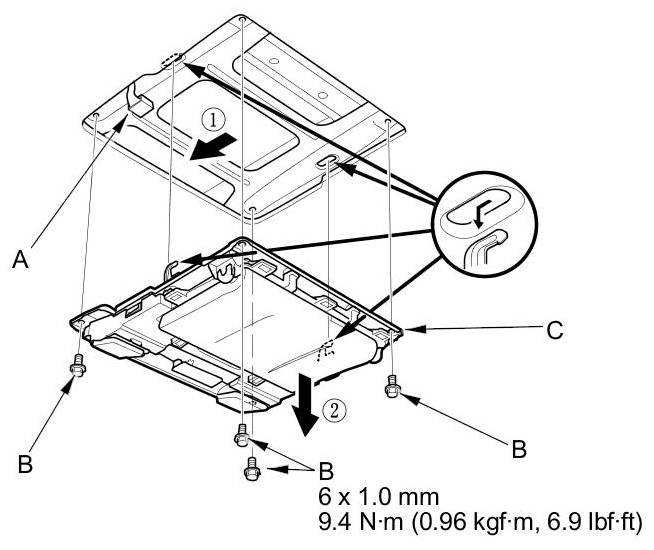

4. Remove the bolts (B). Pull the rear controller (C) forward, under the headliner to release the hooks, then pull the rear controller back and down to remove.

5. Install the rear controller and screen in the reverse order of removal, and make sure the rear controller and screen connector are plugged in properly.
