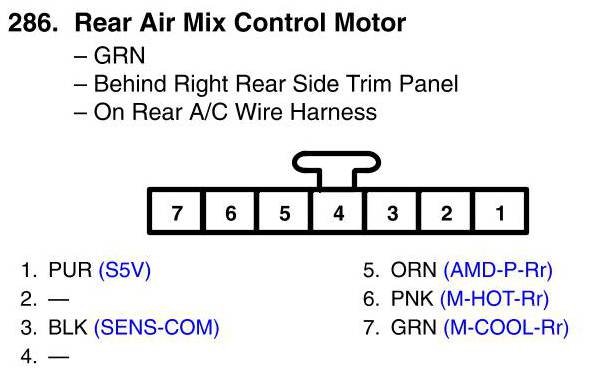

View 286 - Rear Air Mix Control Motor Connector View
View 286 - Rear Air Mix Control Motor Connector View
