Rear Evaporator Temperature Sensor Replacement (With Climate Control)

Rear Evaporator Temperature Sensor Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service Precautions before doing repairs or service.

1. Remove the rear HVAC unit Rear HVAC Unit Removal/Installation.

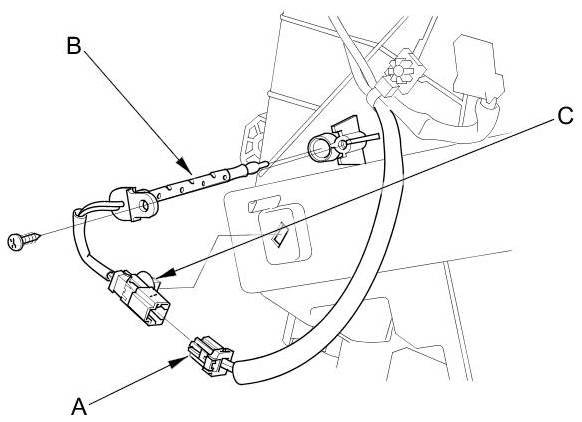

2. Disconnect the 2P connector (A) from the rear evaporator temperature sensor (B), then detach the connector clip (C). Remove the self-tapping screw and the rear evaporator temperature sensor from the rear HVAC unit.





3. Install the sensor in the reverse order of removal.
