Audio Wire Harness




Connector and Harness Locations

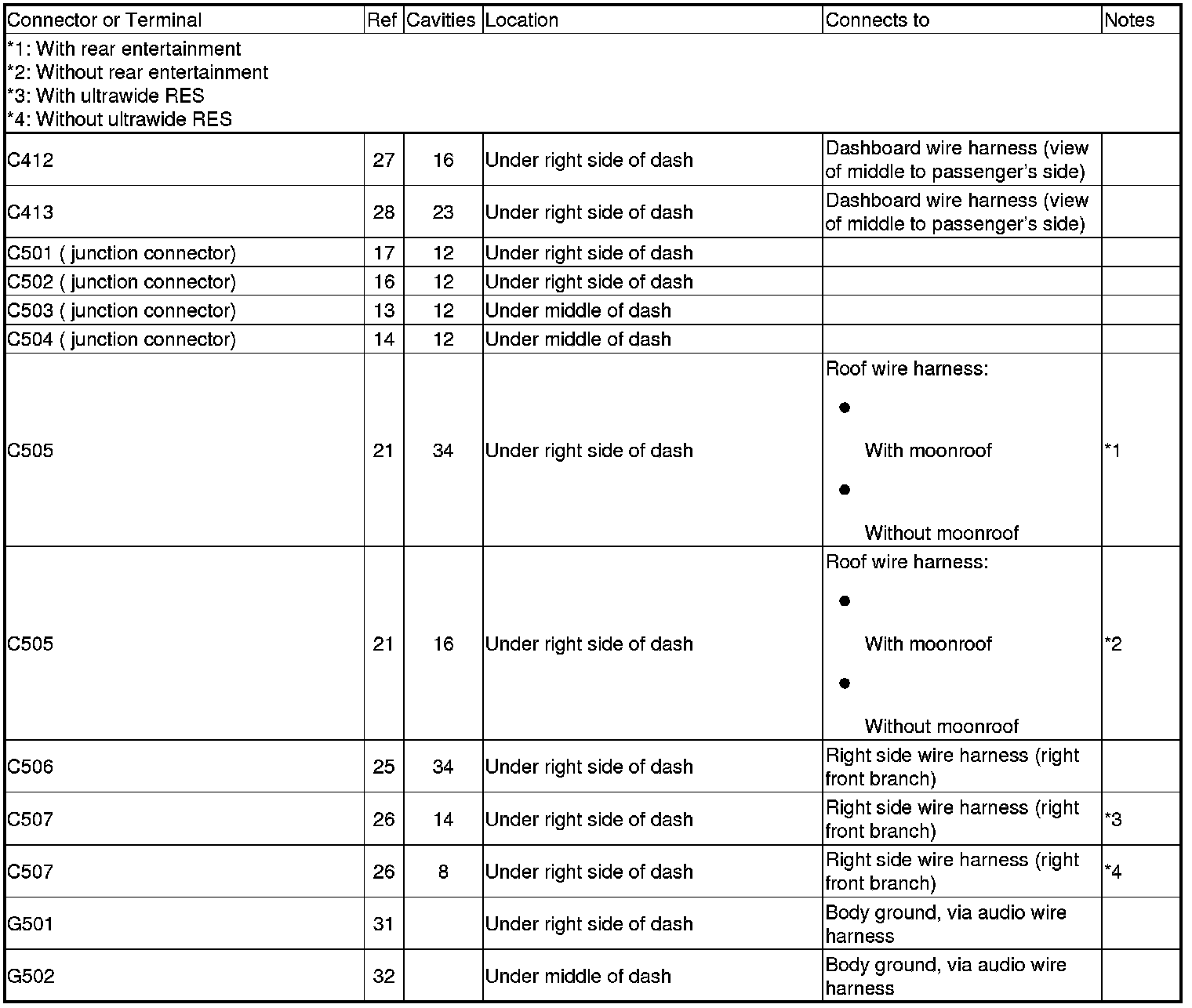

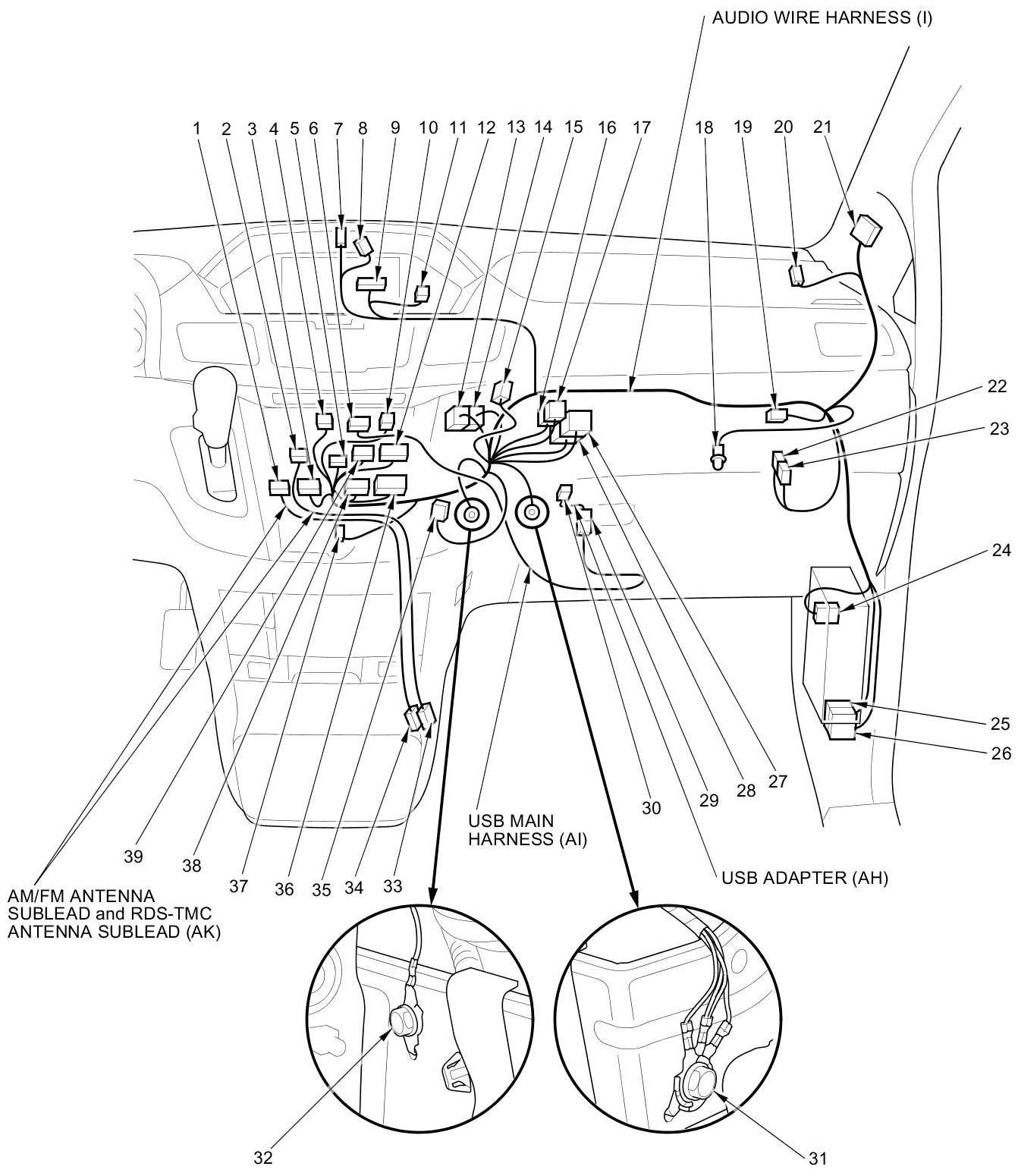

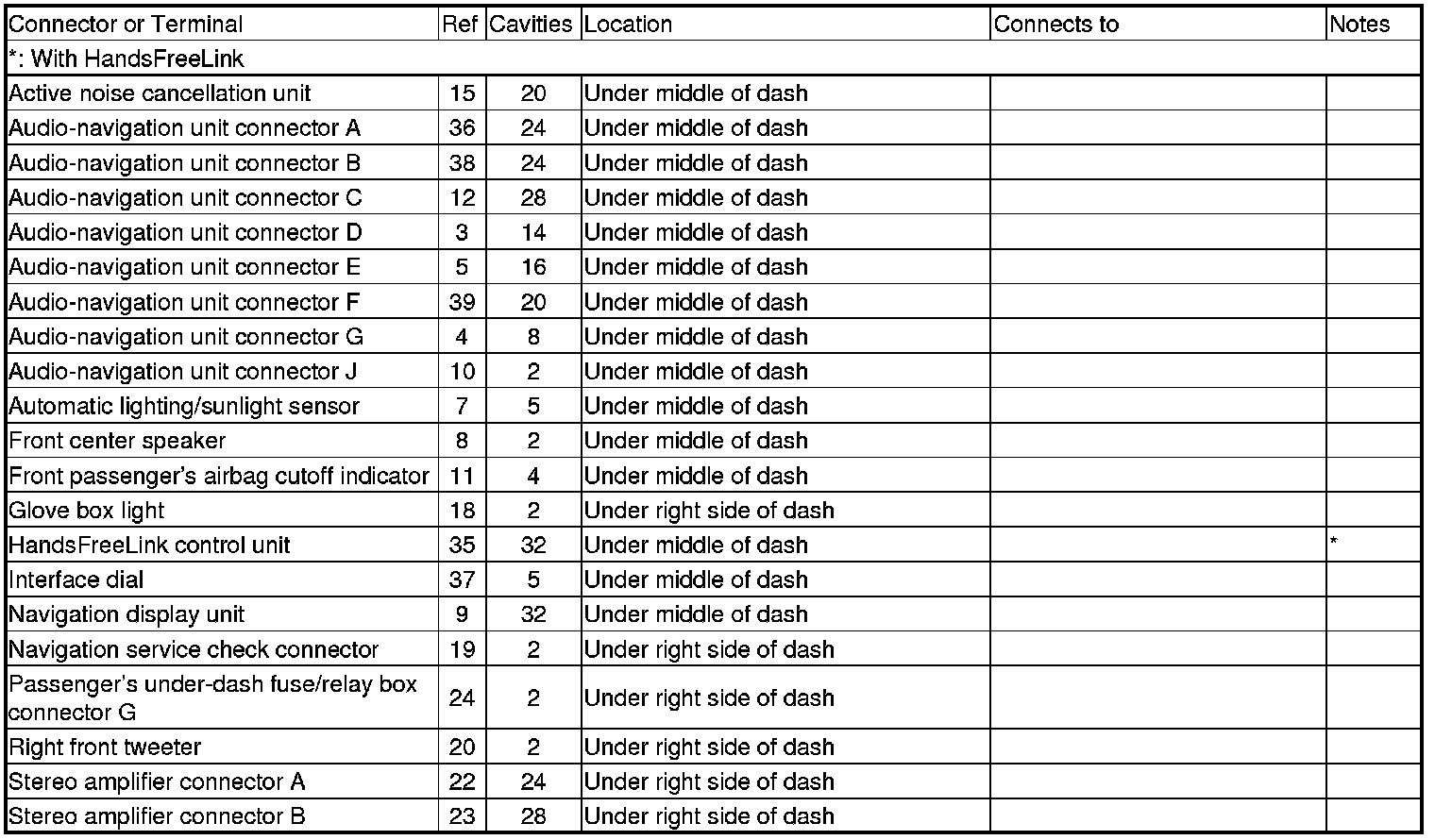

Audio Wire Harness (With Navigation) (I)










Audio Wire Harness (With Navigation) (I) (cont'd)










Audio Wire Harness (Without Navigation) (I)
