Dashboard Wire Harness

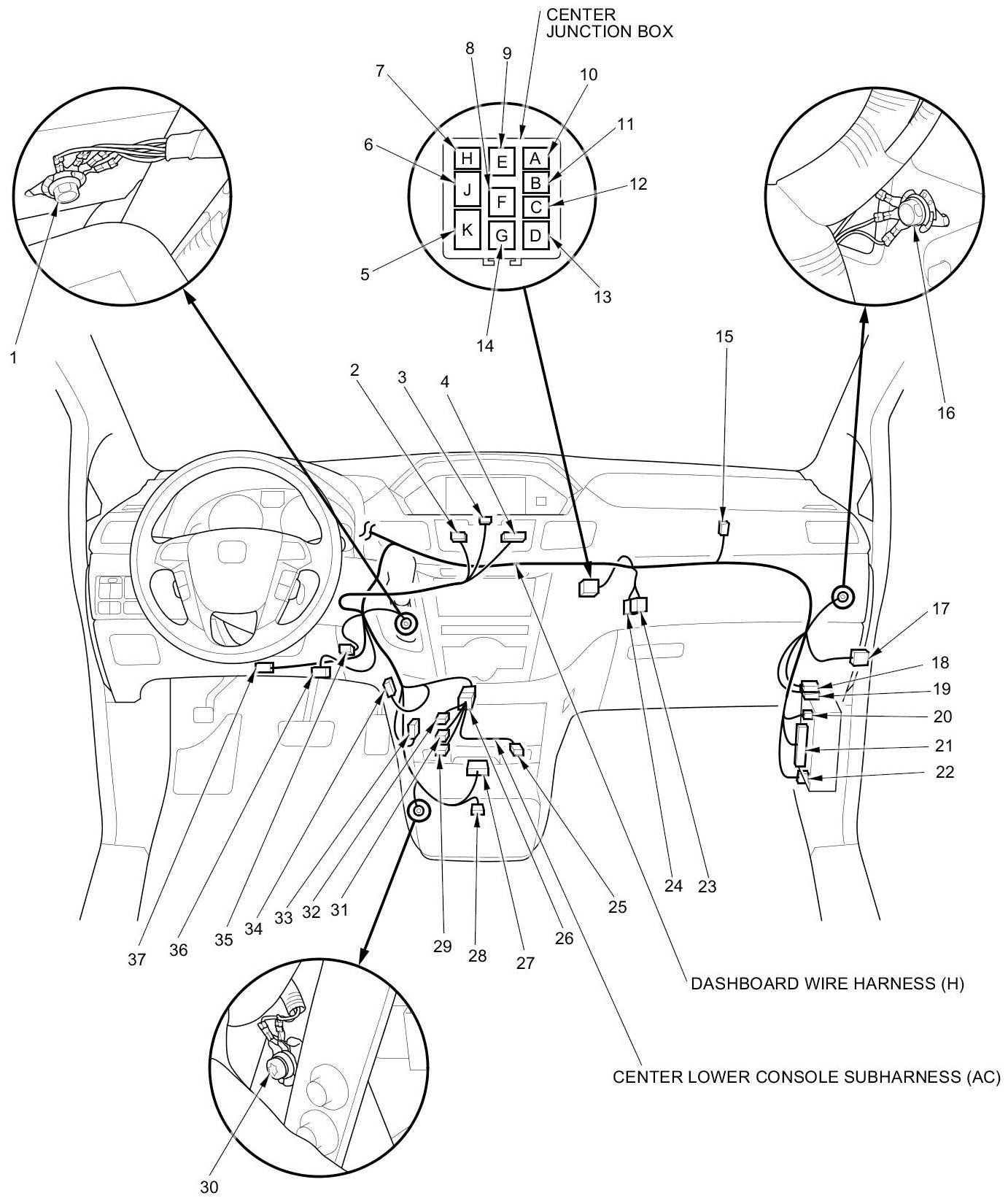

Connector and Harness Locations

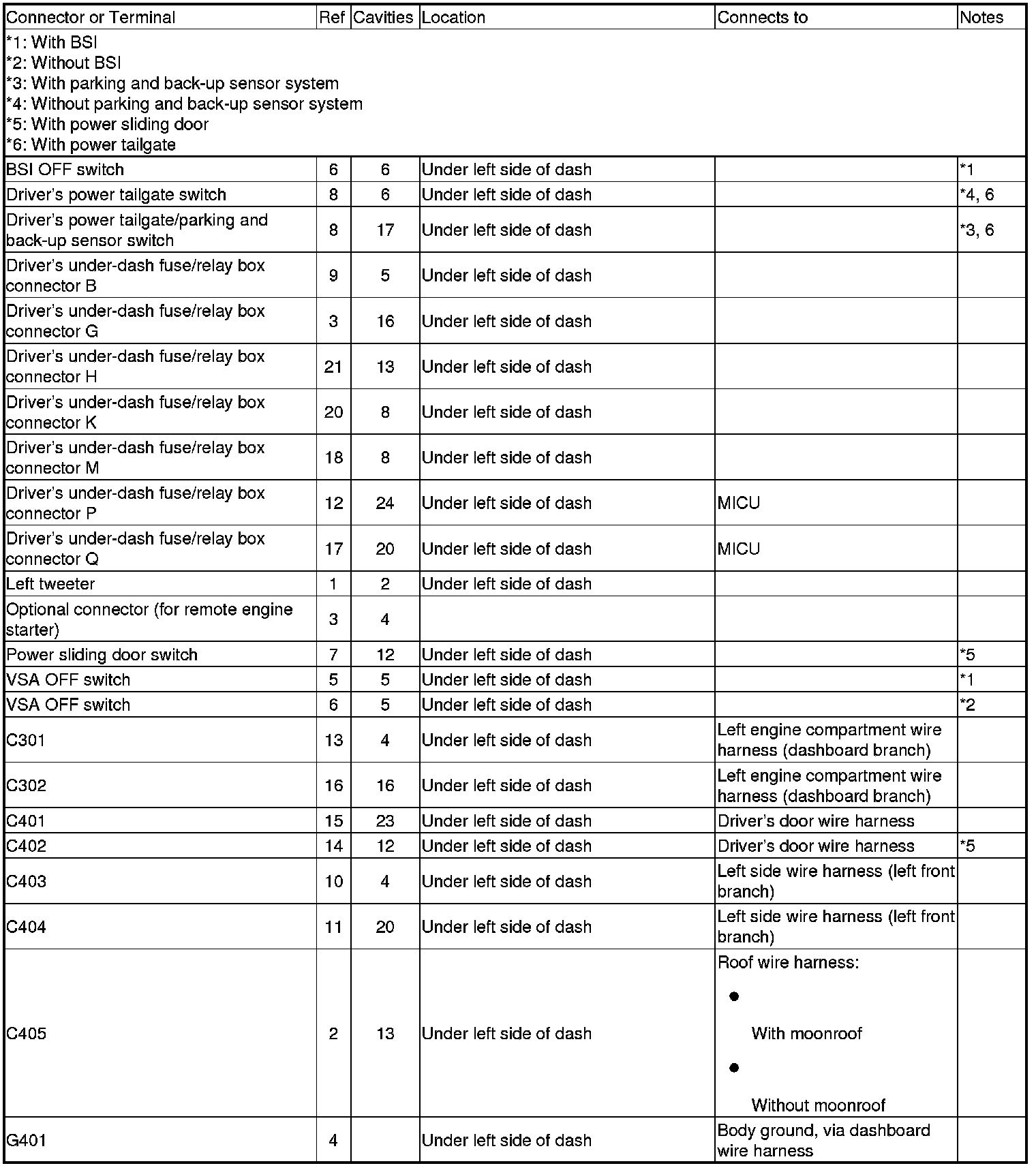

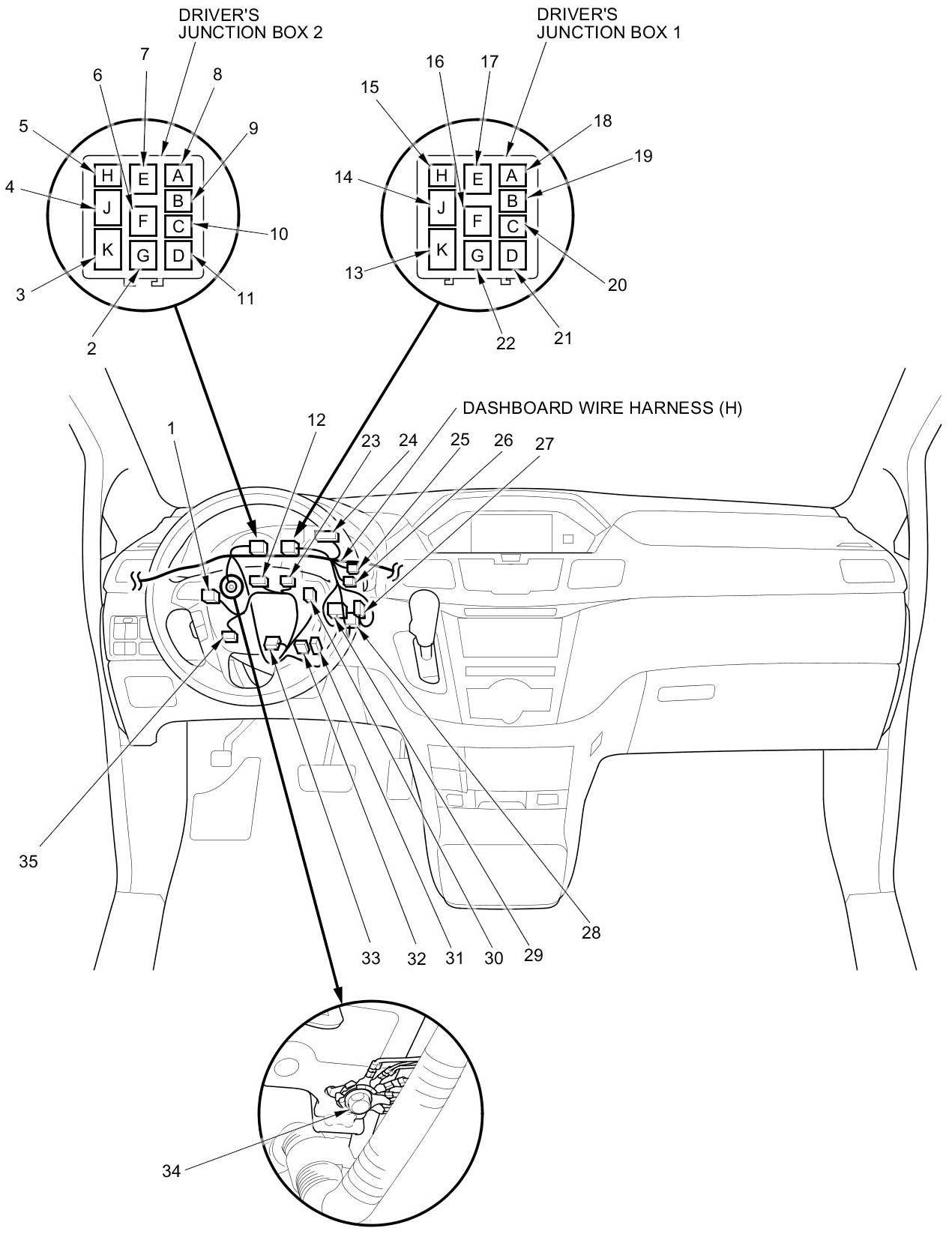

Dashboard Wire Harness (View of Driver's Side) (H)

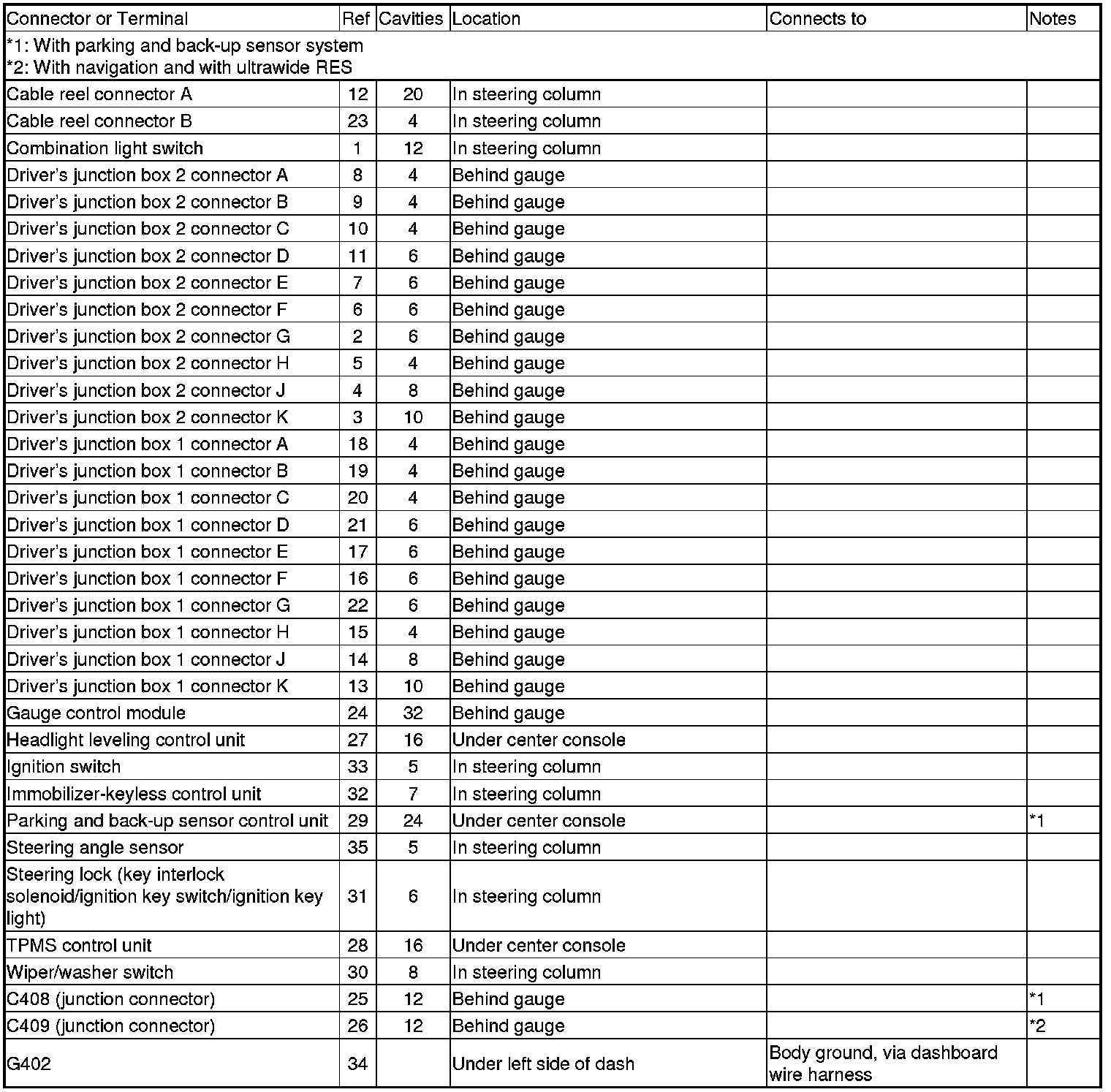

Dashboard Wire Harness (View of Left Side) (With DPMS) (H)

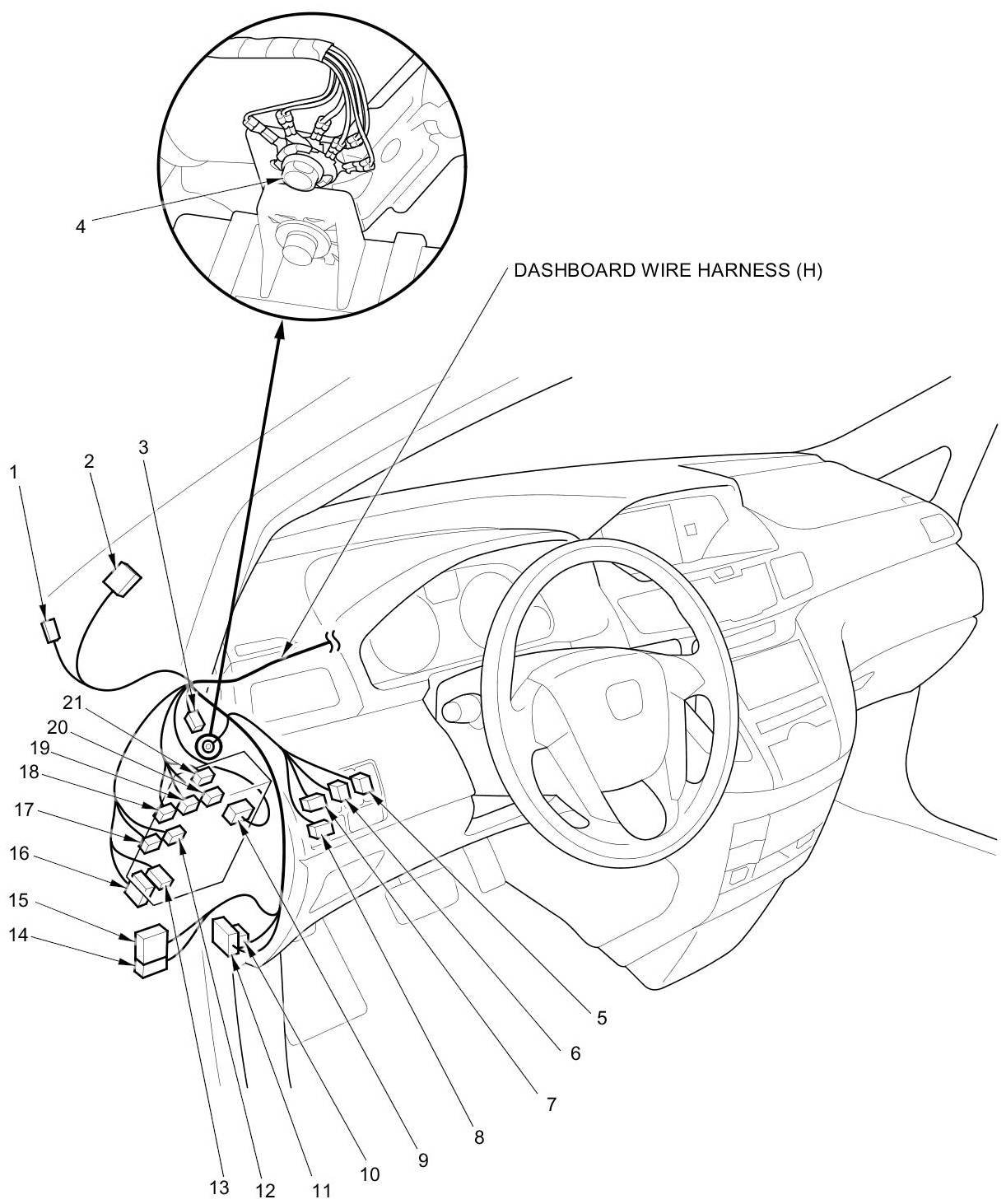

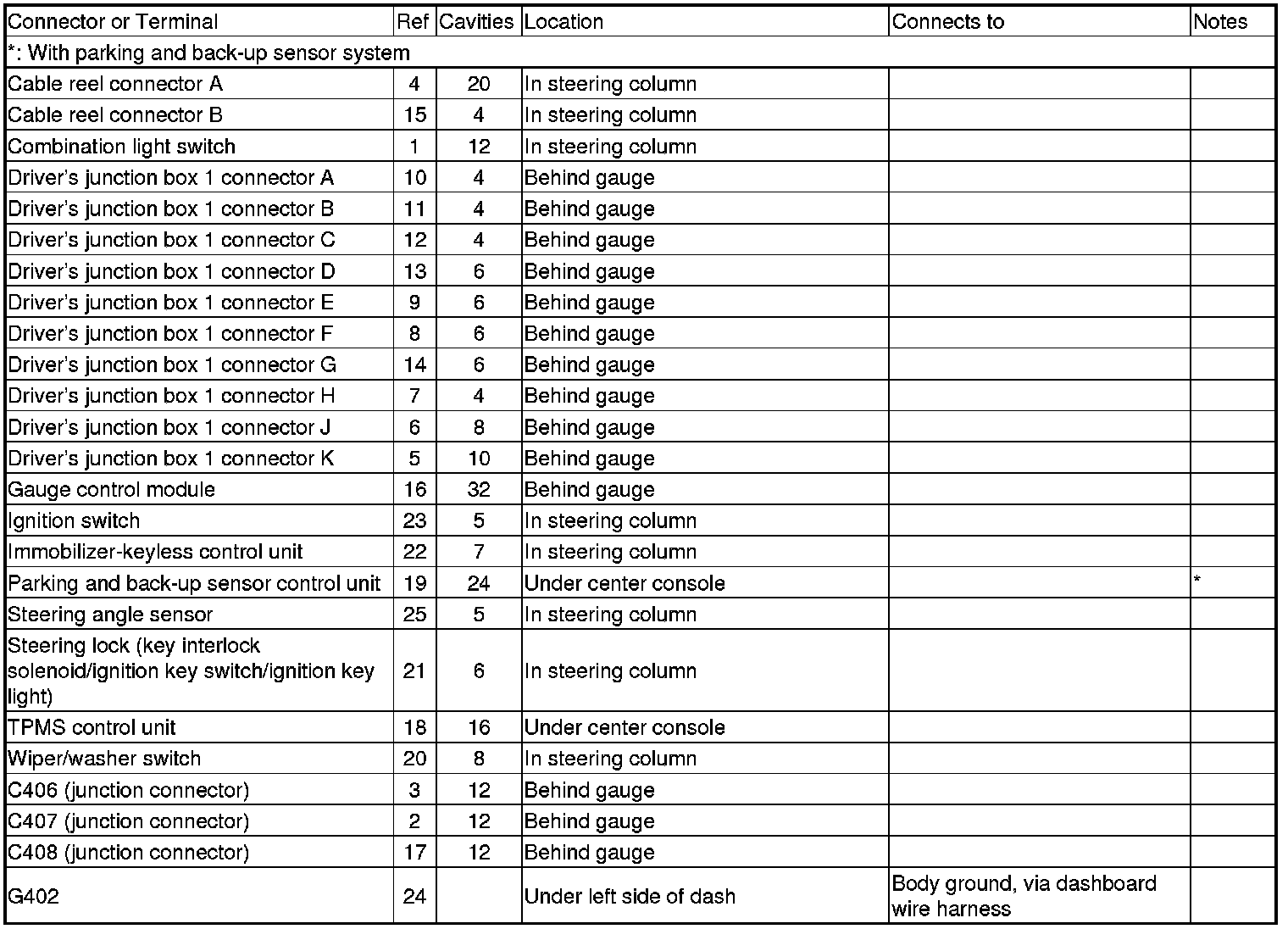

Dashboard Wire Harness (View of Left Side) (Without DPMS) (H)

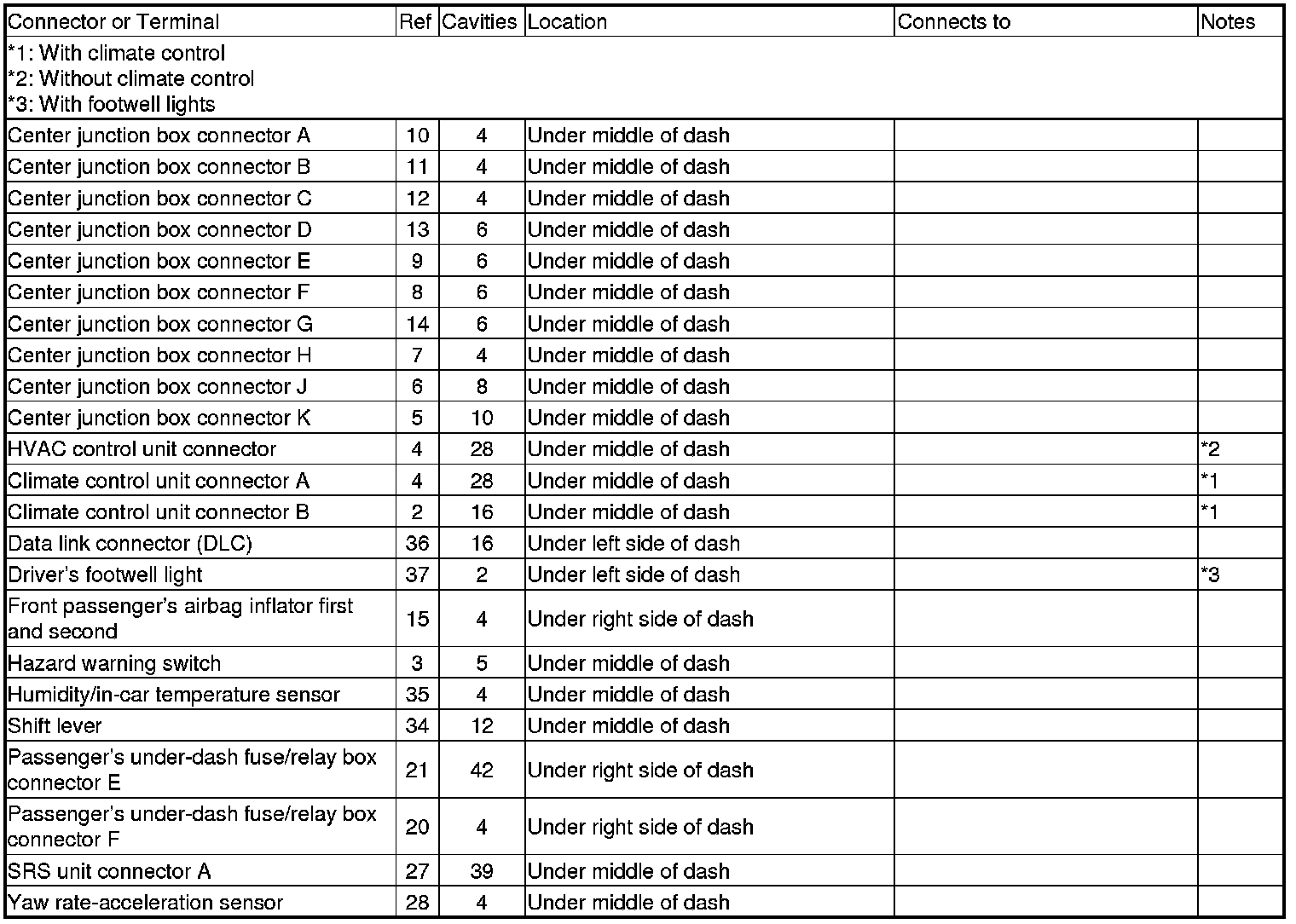

Dashboard Wire Harness (View of Middle to Passenger's Side) (H)

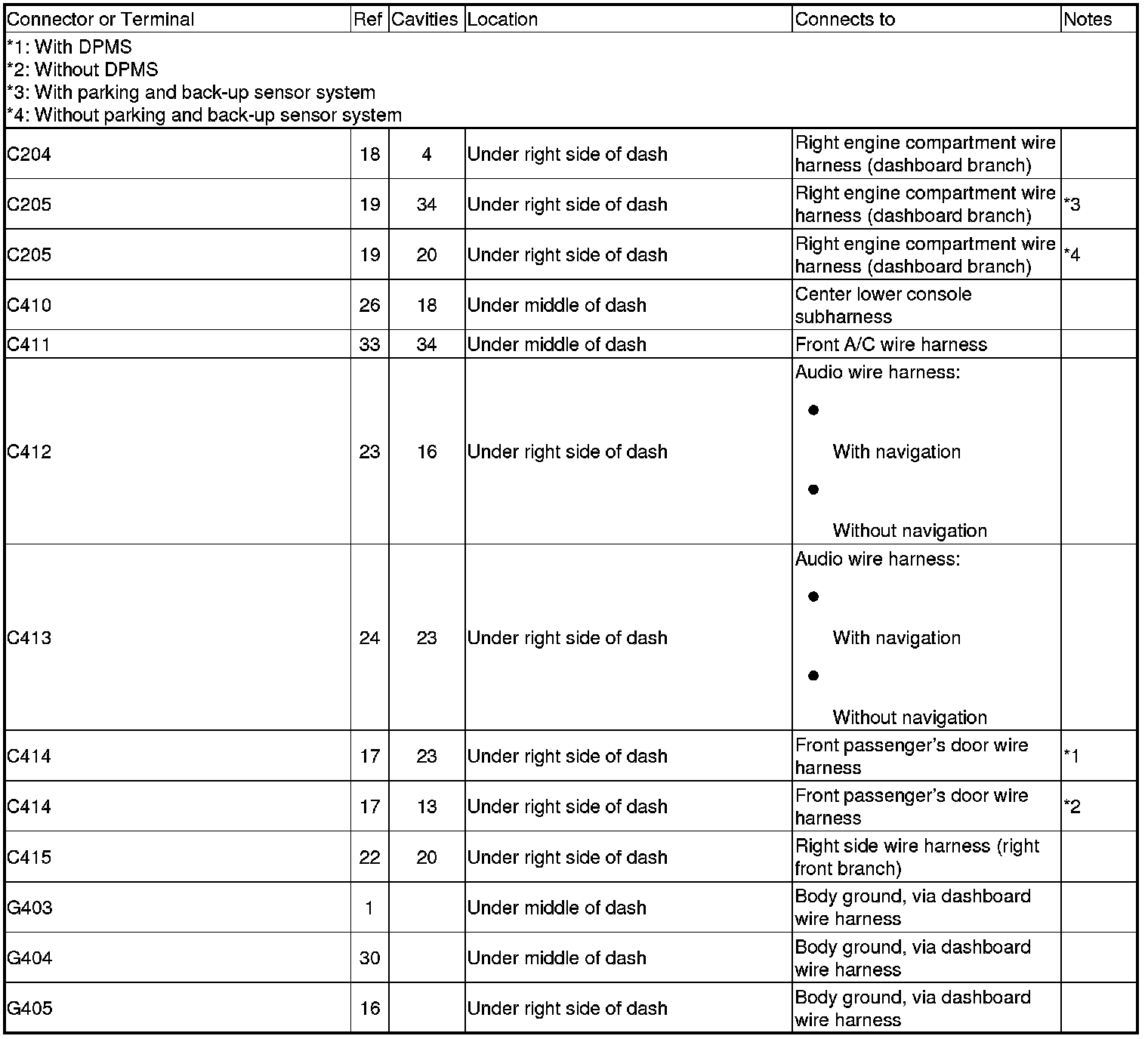

Dashboard Wire Harness (View of Middle to Passenger's Side) (H) (cont'd)
