Left Side Wire Harness




Connector and Harness Locations

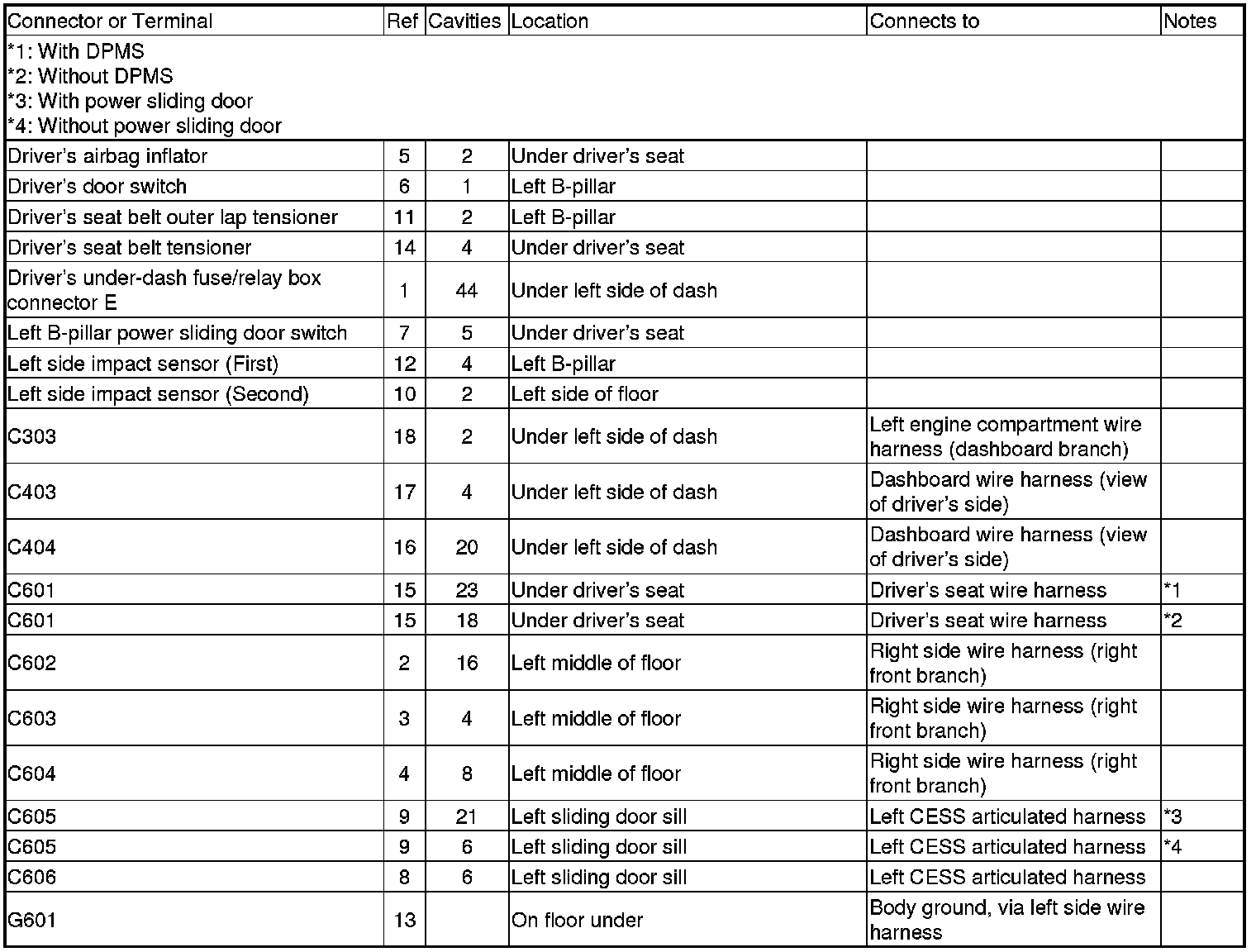

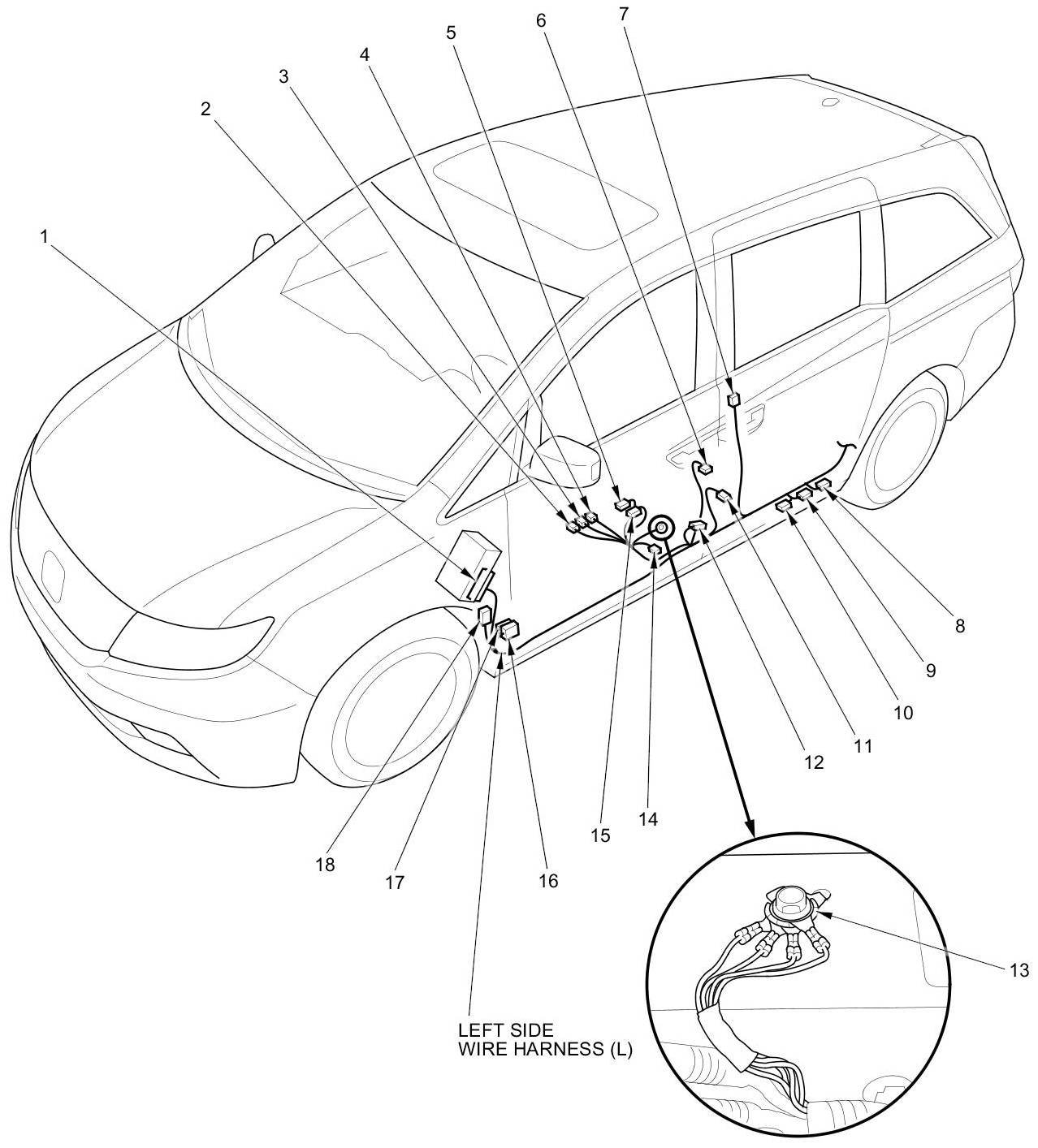

Left Side Wire Harness (Left Front Branch) (L)

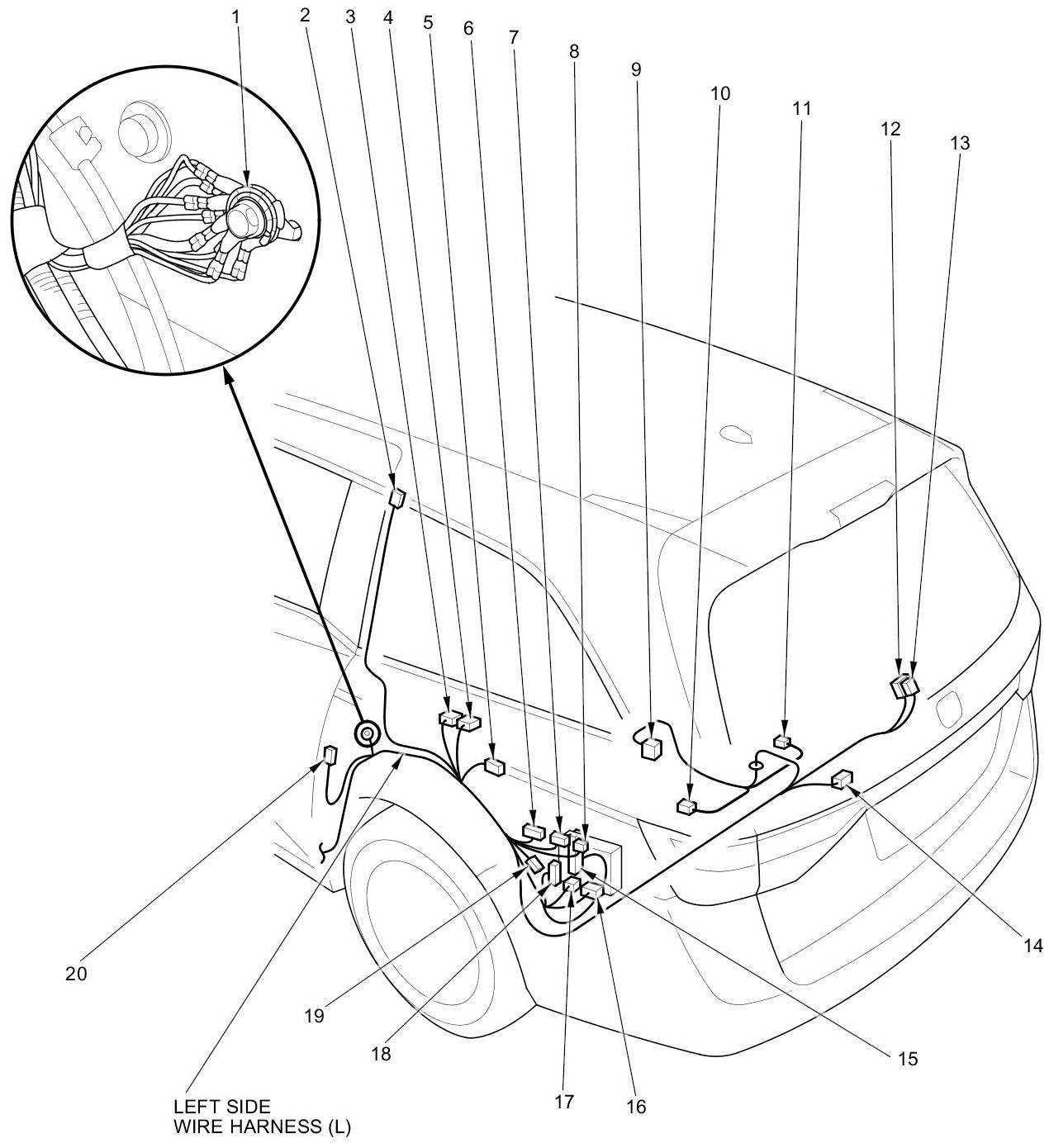

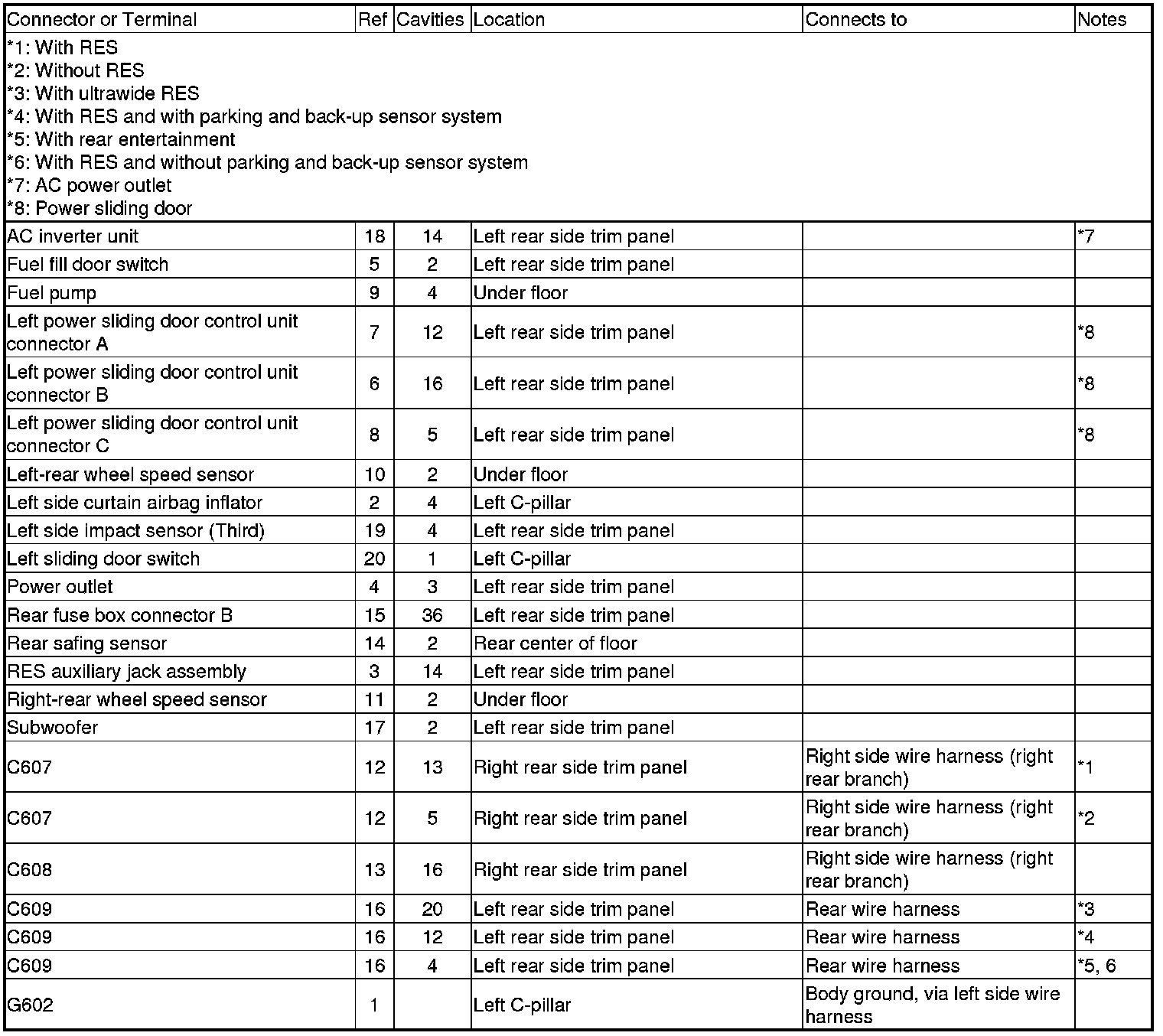

Left Side Wire Harness (Left Rear Branch) (L)
