Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Rear Bumper Subharness
Rear Bumper Subharness

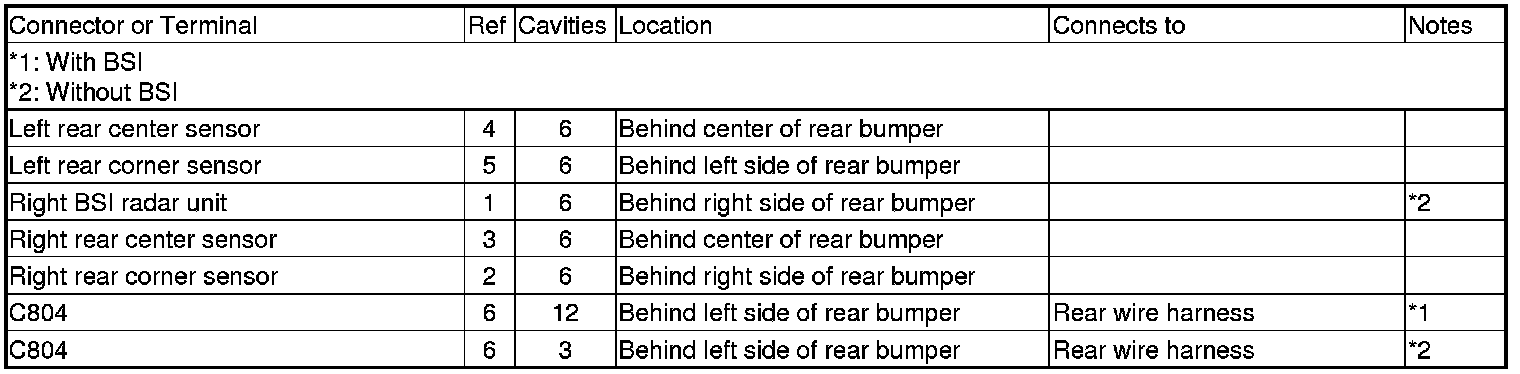

Connector and Harness Locations

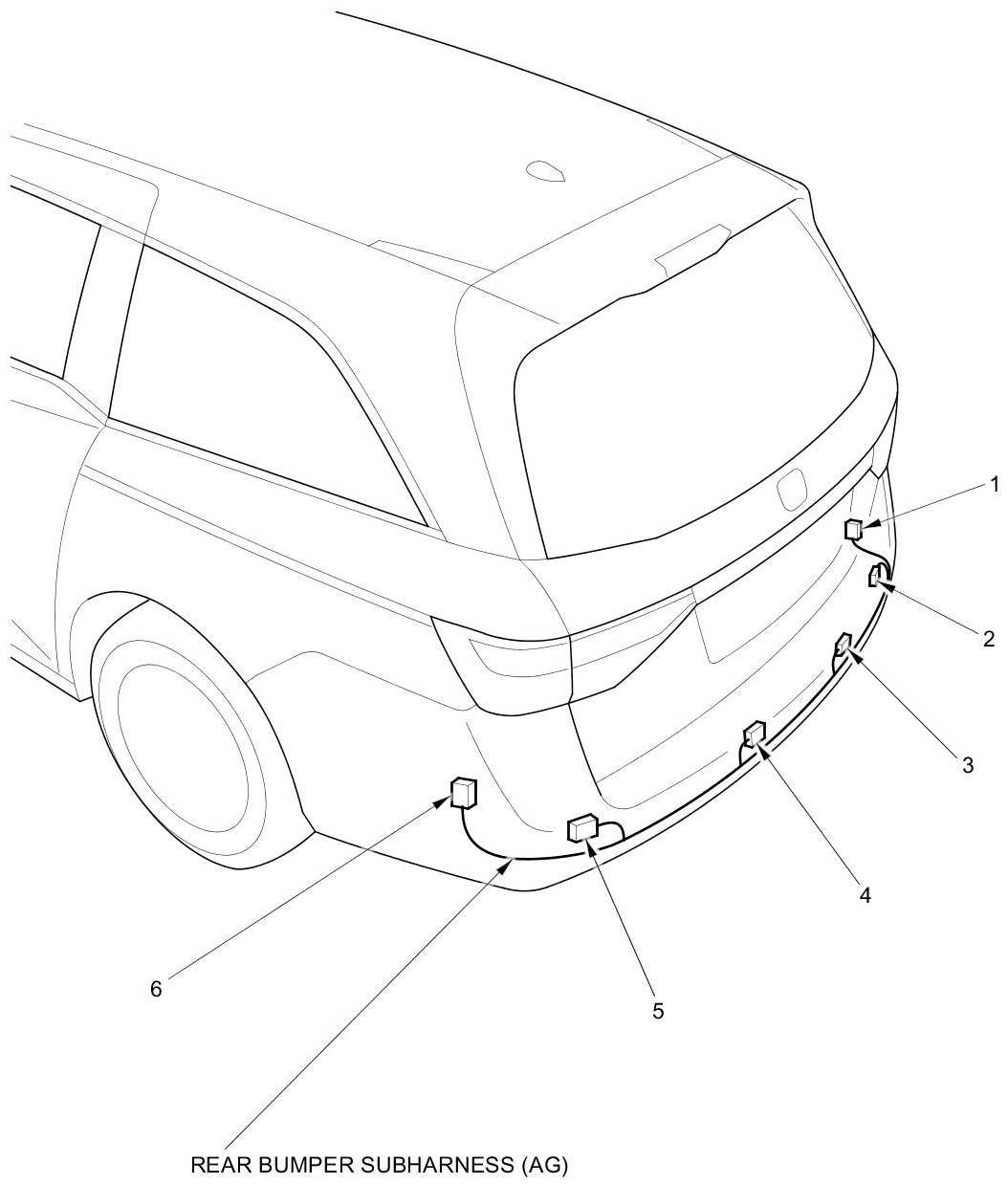

Rear Bumper Subharness (AG)
