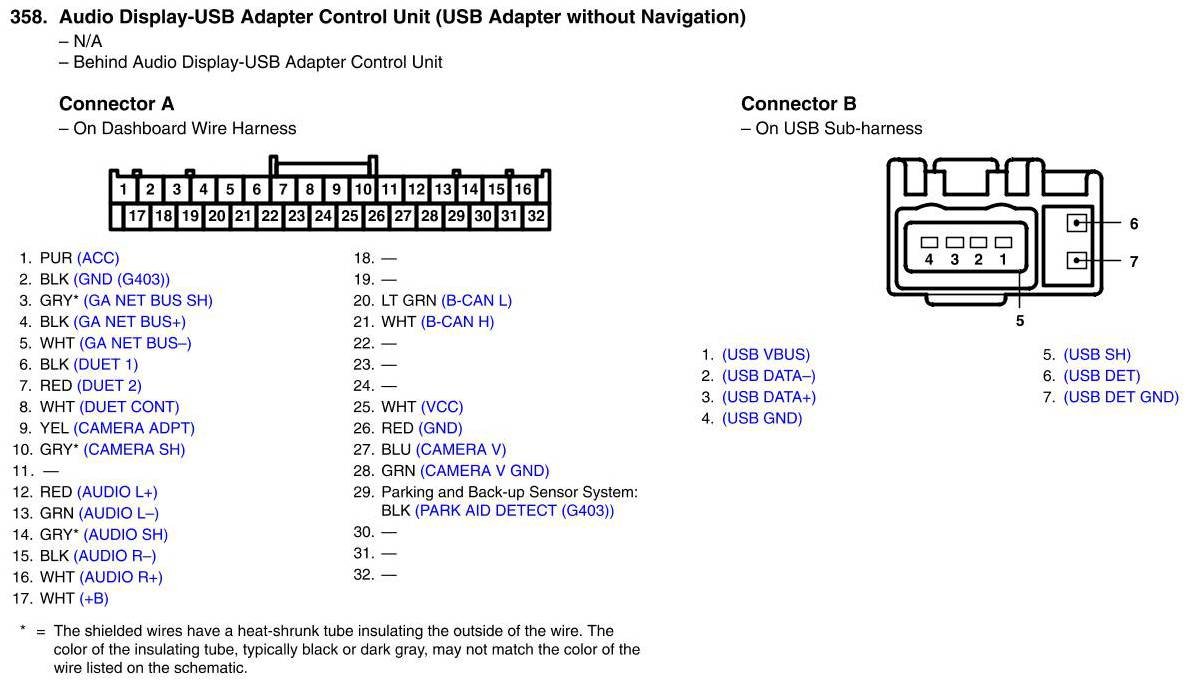

Audio Display-USB Adapter Control Unit Connector View (USB Adapter Without Navigation)
Audio Display-USB Adapter Control Unit Connector View (USB Adapter Without Navigation)
