Cabin Ventilation Duct: Service and Repair

Rear Air Outlet Replacement

NOTE: Take care not to scratch the body.

1. Remove the rear bumper Rear Bumper Removal/Installation.

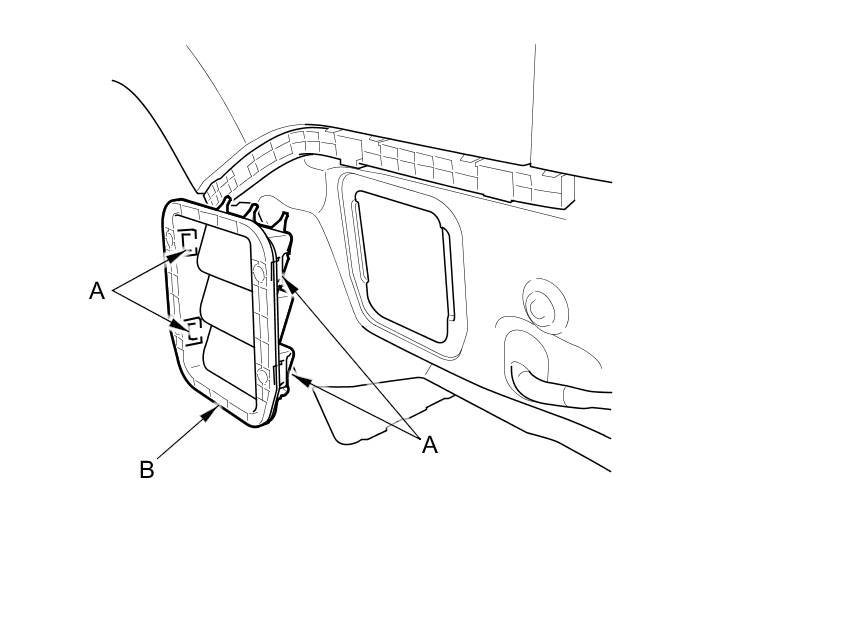

2. Detach the hooks (A), then remove the rear air outlet (B).





3. Install the air outlet by pushing on the hook areas until the hooks snap into place.
