Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Open the hood, and remove the front bumper Service and Repair.

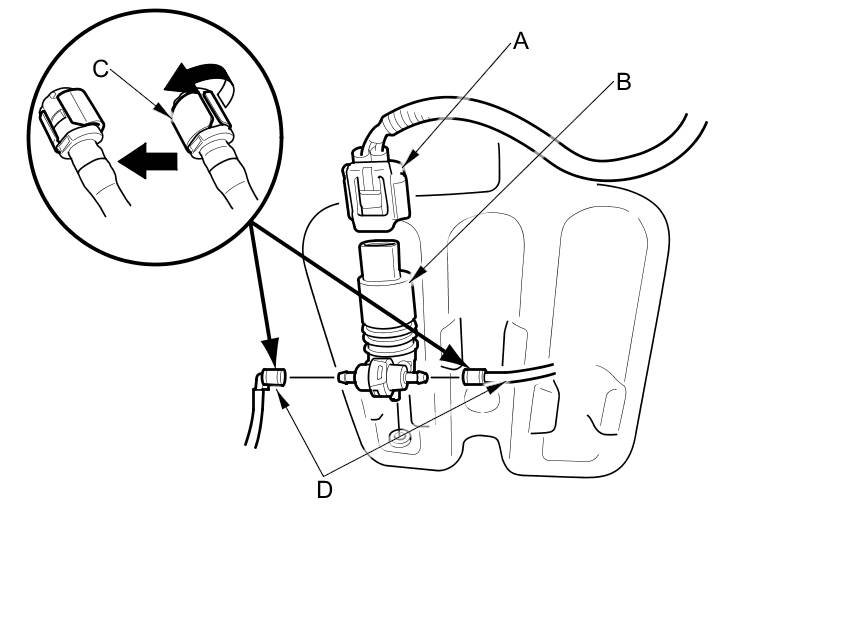

2. Disconnect the 2P connectors (A) from the washer motors (B), and the washer fluid level switch (if equipped) Washer Fluid Level Switch Test.

Washer Reservoir Capacity










3. Turn the hose clamp (C) 45°, disconnect the washer tubes (D).

4. Remove the horn (HIGH) Service and Repair.

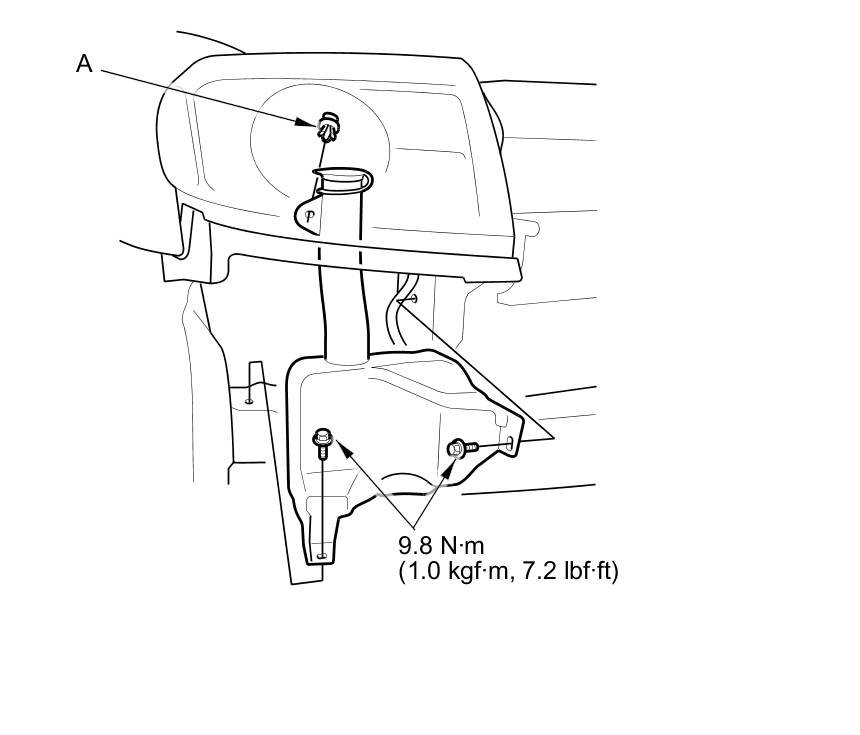

5. Remove the two bolts and clip (A), then remove the washer reservoir.






6. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
