Danger/Warning/Caution Label Locations (FFV Models)

Danger/Warning/Caution Label Locations

Front Passenger's Compartment:

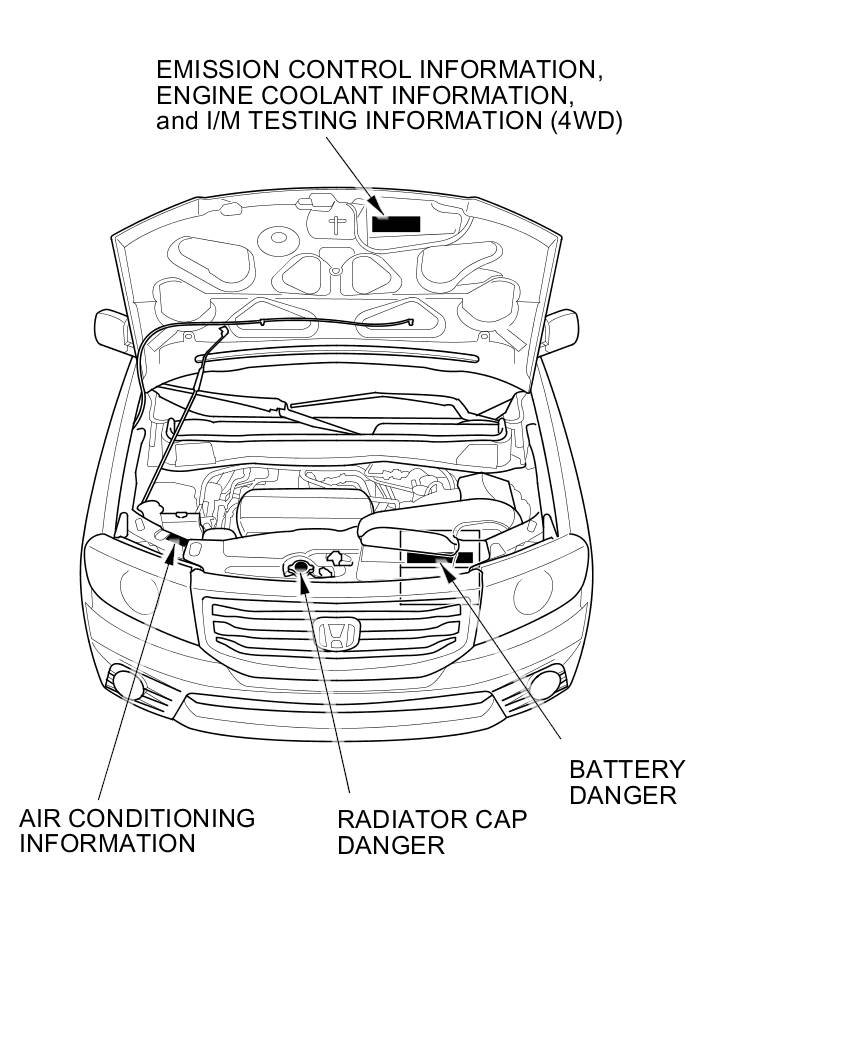

Engine Compartment:

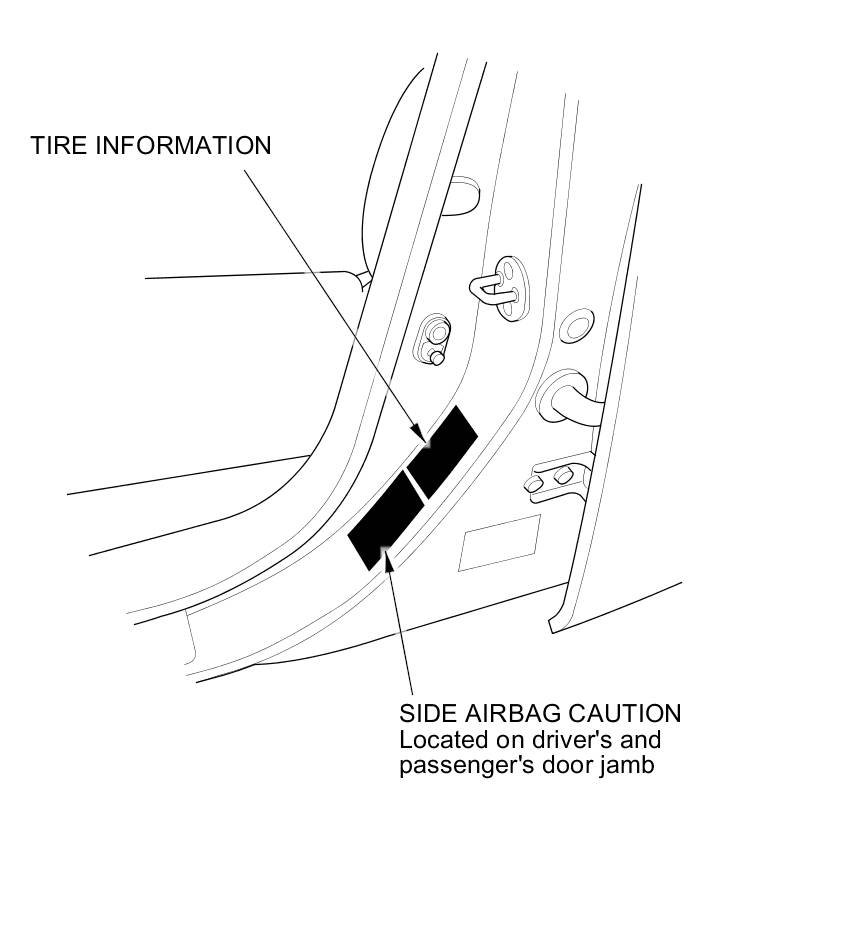

Doorjamb Area:

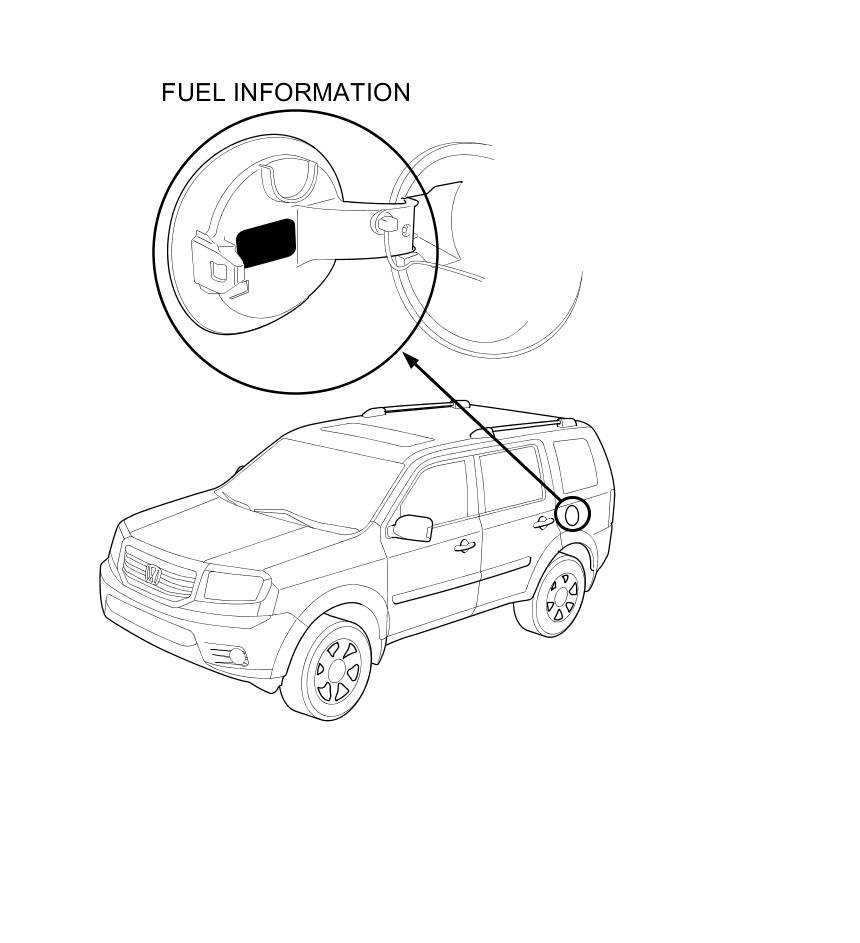

Fuel Fill Door Area:
