Left Front Splash Guard Reinforcement Replacement

Left Front Splash Guard Reinforcement Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:

- Left front inner fender, as needed Front Inner Fender Replacement
- Left side sill panel

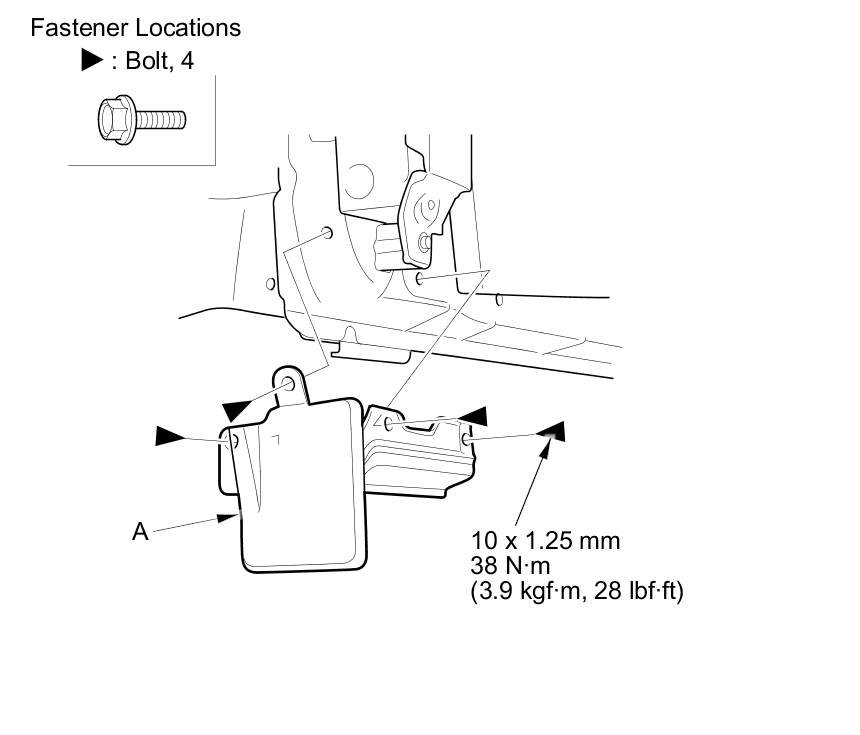

2. Remove the bolts, then remove the left front splash guard reinforcement (A).

3. Install the reinforcement in the reverse order of removal.
