Differential Vent Box: Service and Repair




Rear Differential Breather Box and Hose Replacement

1. Remove the cargo floor box Interior Trim Removal/Installation - Cargo Area.

2. Remove the rear right side trim panel Interior Trim Removal/Installation - Rear Side Area.

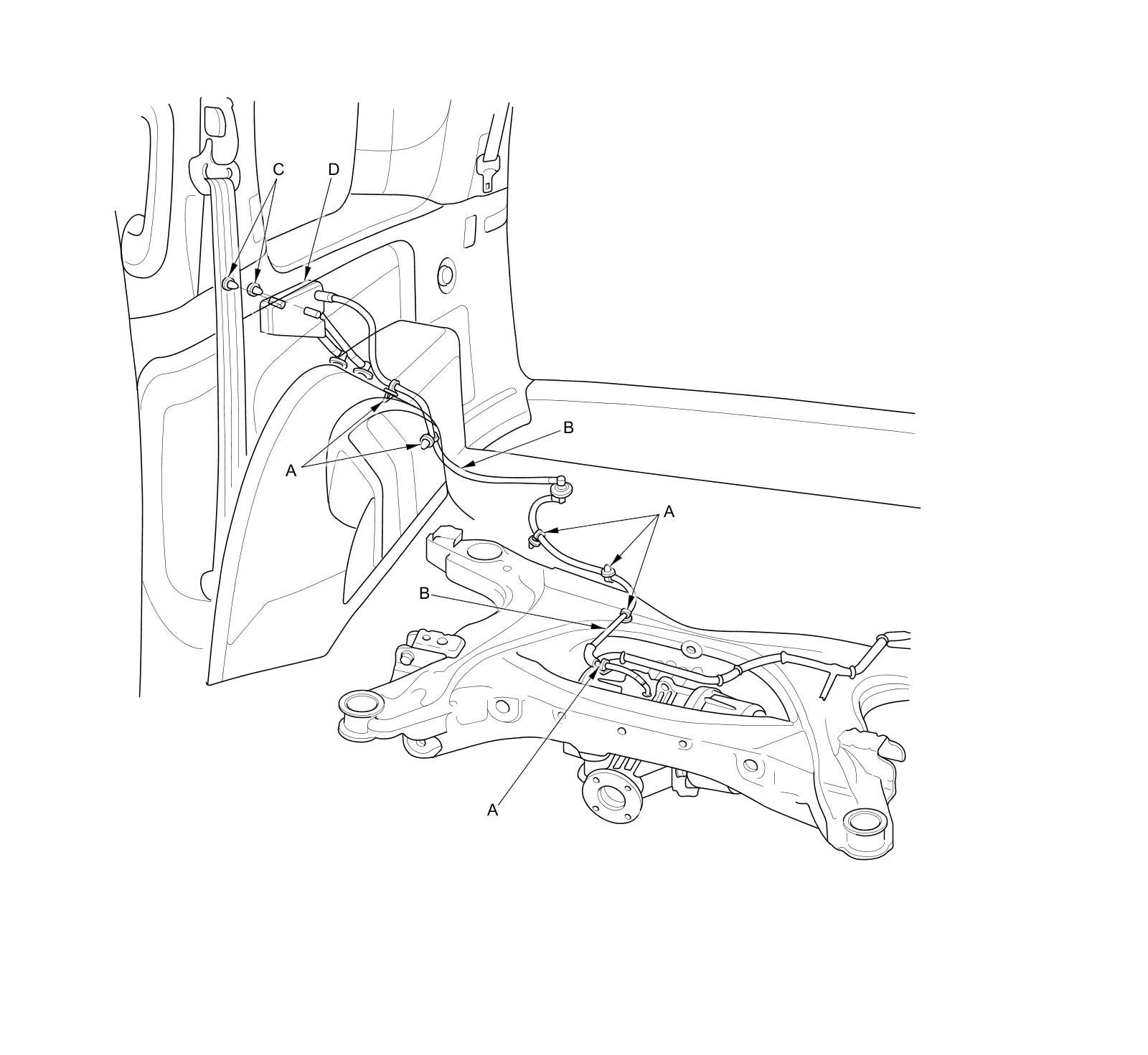

3. Remove the breather hose clips (A), then disconnect the breather hoses (B).





4. Remove the rear differential breather box clips (C) and the rear differential breather box (D).

5. Install the breather box and the hose in the reverse order of removal.
