Transfer Output Shaft (Hypoid Gear) Bearing Removal/Installation (With VTM-4)

Transfer Output Shaft (Hypoid Gear) Bearing Removal/Installation

Special Tools Required

- Driver Handle, 40 mm I.D. 07746-0030100

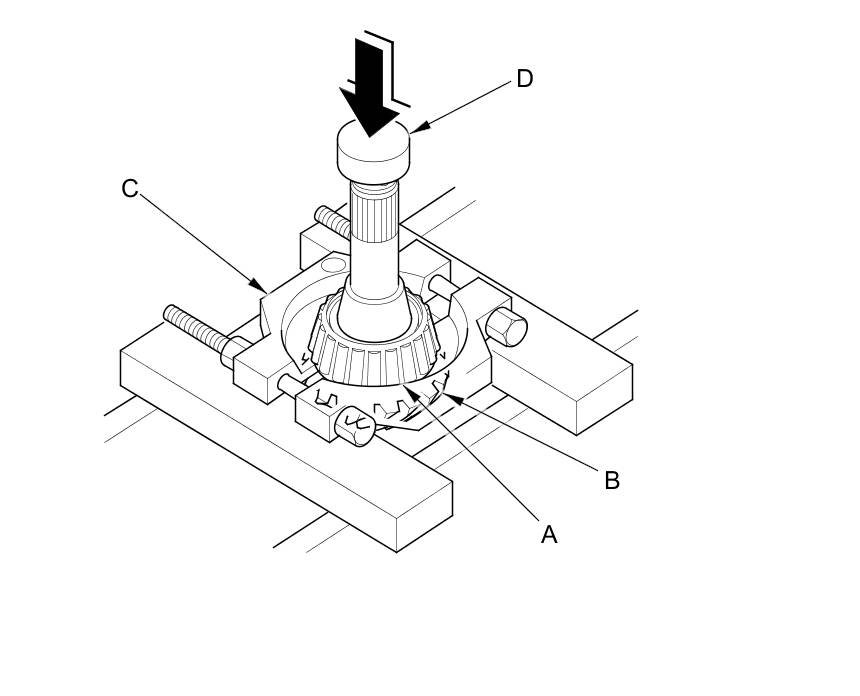

1. Remove the tapered roller bearing (A) from the transfer output shaft (hypoid gear) (B) using a bearing separator (C) and a press. Place a spacer (D) between the transfer output shaft (hypoid gear) and a press to prevent damage to the transfer output shaft (hypoid gear).






2. Install the 40 mm thrust shim (A) over the transfer output shaft (hypoid gear) (B).





3. Install the tapered roller bearing (C) over the transfer output shaft (hypoid gear) using the 40 mm driver handle and a press.
