Alarm Module, (Vehicle Antitheft)
>>

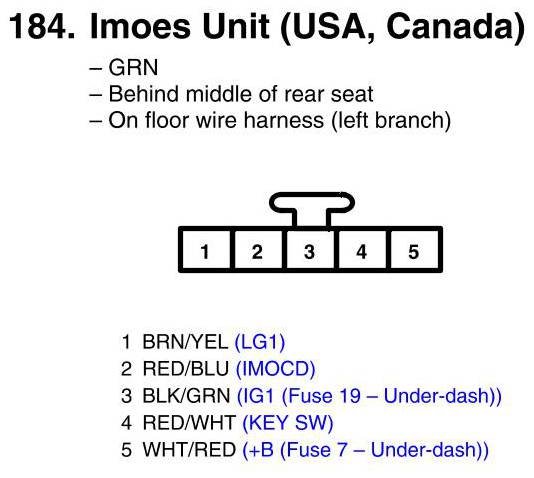

IMOES Unit Connector View (USA, Canada)
IMOES Unit Connector View (USA, Canada)
