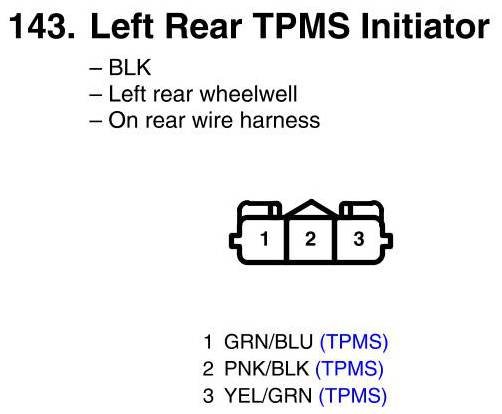

View 143 - Left Rear TPMS Initiator Connector View
View 143 - Left Rear TPMS Initiator Connector View
