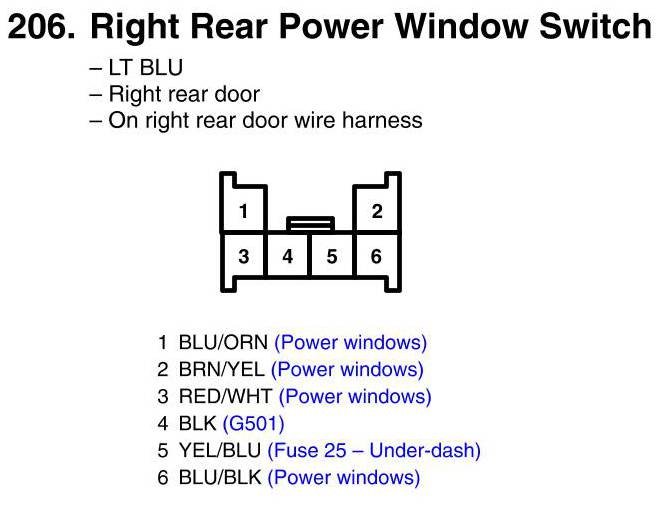

View 206 - Right Rear Power Window Switch Connector View
View 206 - Right Rear Power Window Switch Connector View
