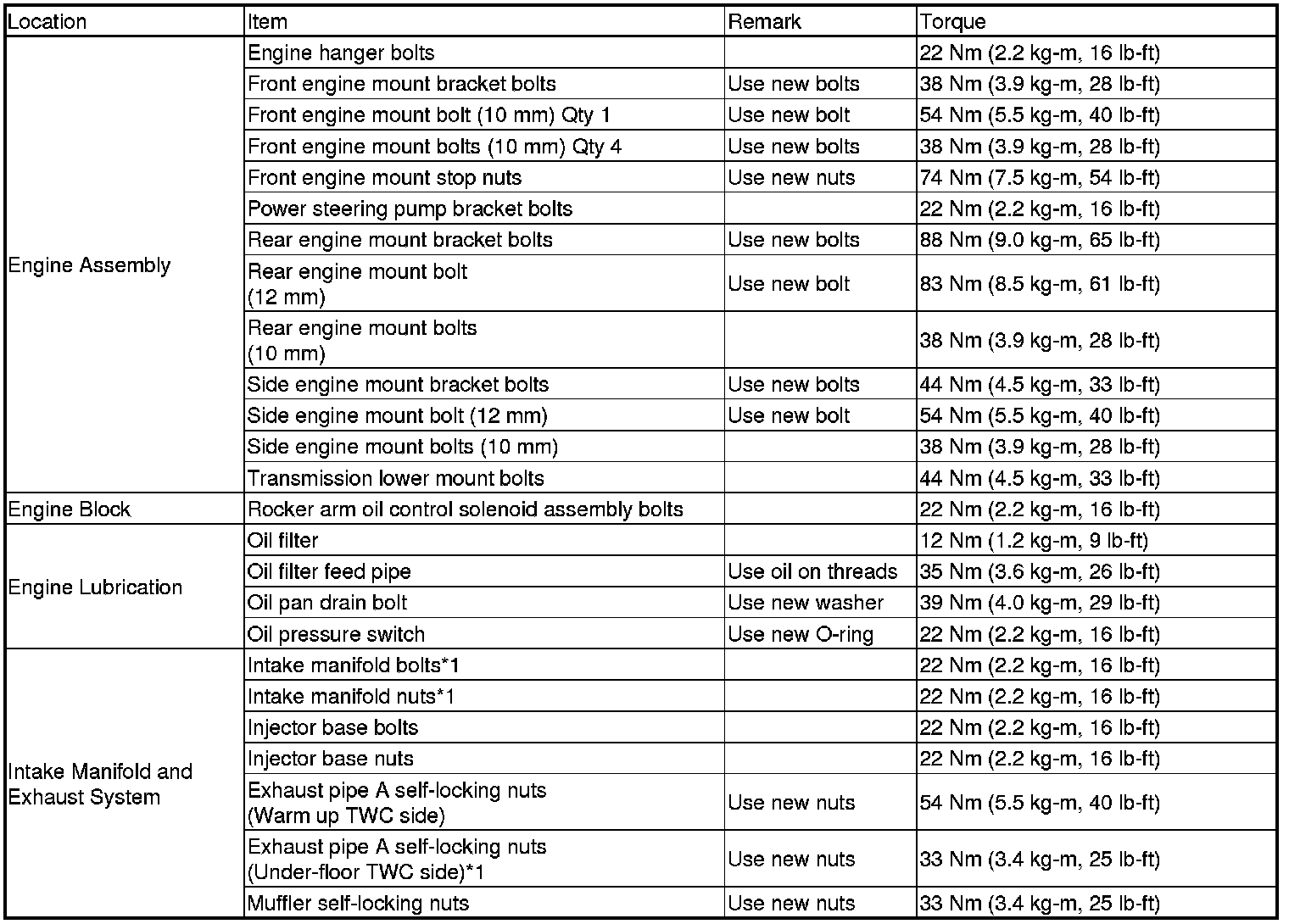

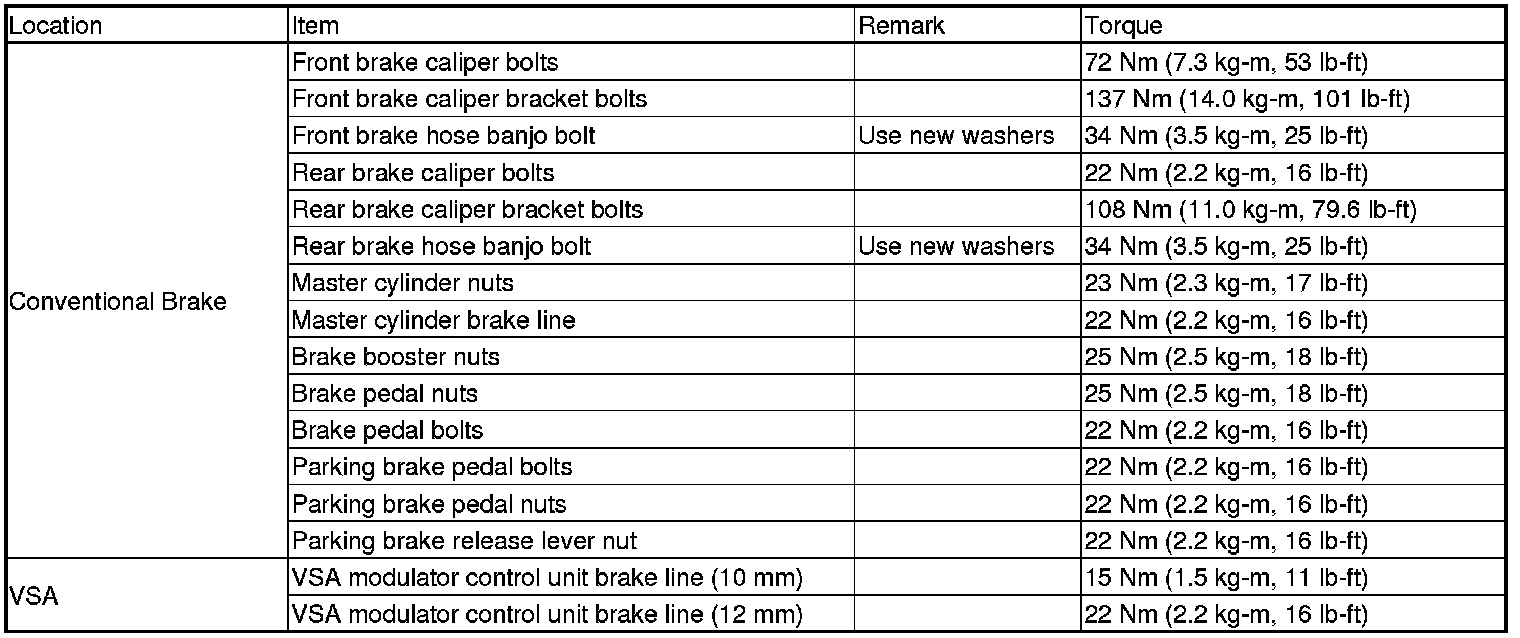

Torque Specifications

Torque Specifications

NOTE
*Refer to the service data for the precautions and complete procedures.
*Refer to the service data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the service procedures closely for torque, sequence, and special steps.

Engine Electrical






Engine Mechanical






Engine Cooling






Fuel Emissions






Automatic Transmission






Rear Differential






Driveline/Axle






Steering






Suspension






Brakes






Body






Heating, Ventilation, and Air Conditioning






Body Electrical
