Fluid Line/Hose: Service and Repair

ATF Cooler Hose Replacement

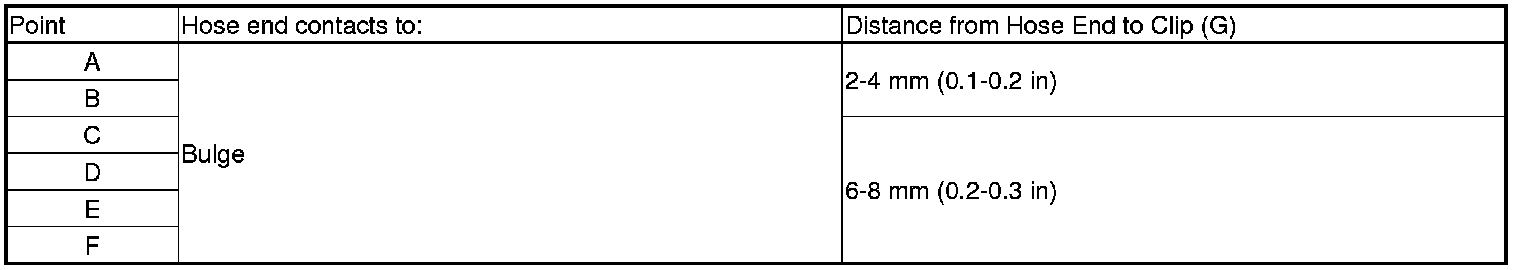

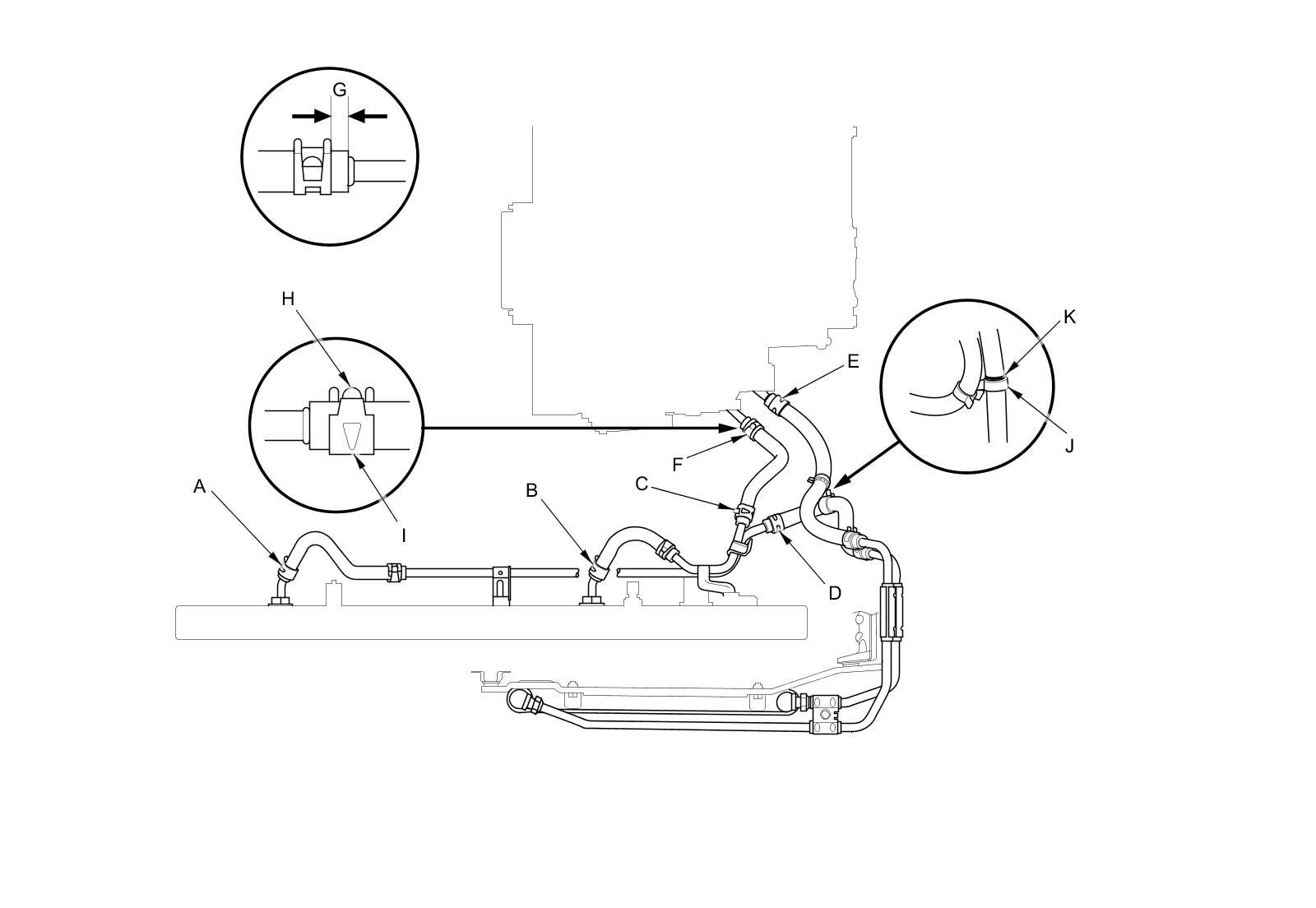

1. Install the ATF cooler hoses over the ATF cooler lines, and secure the hoses with the clips at the points (A), (B), (C), (D), (E), and (F) as the details in the table below. Keep the tabs of the clips clear of other parts.










2. Face the tab (H) of the clip (I) up at the point (F).

3. Secure the ATF cooler hose with the clamp (J) at the mark (K).

4. Refill the transmission with ATF to the proper level ATF Level Check.
