Fuse: Locations
Fuse Locations

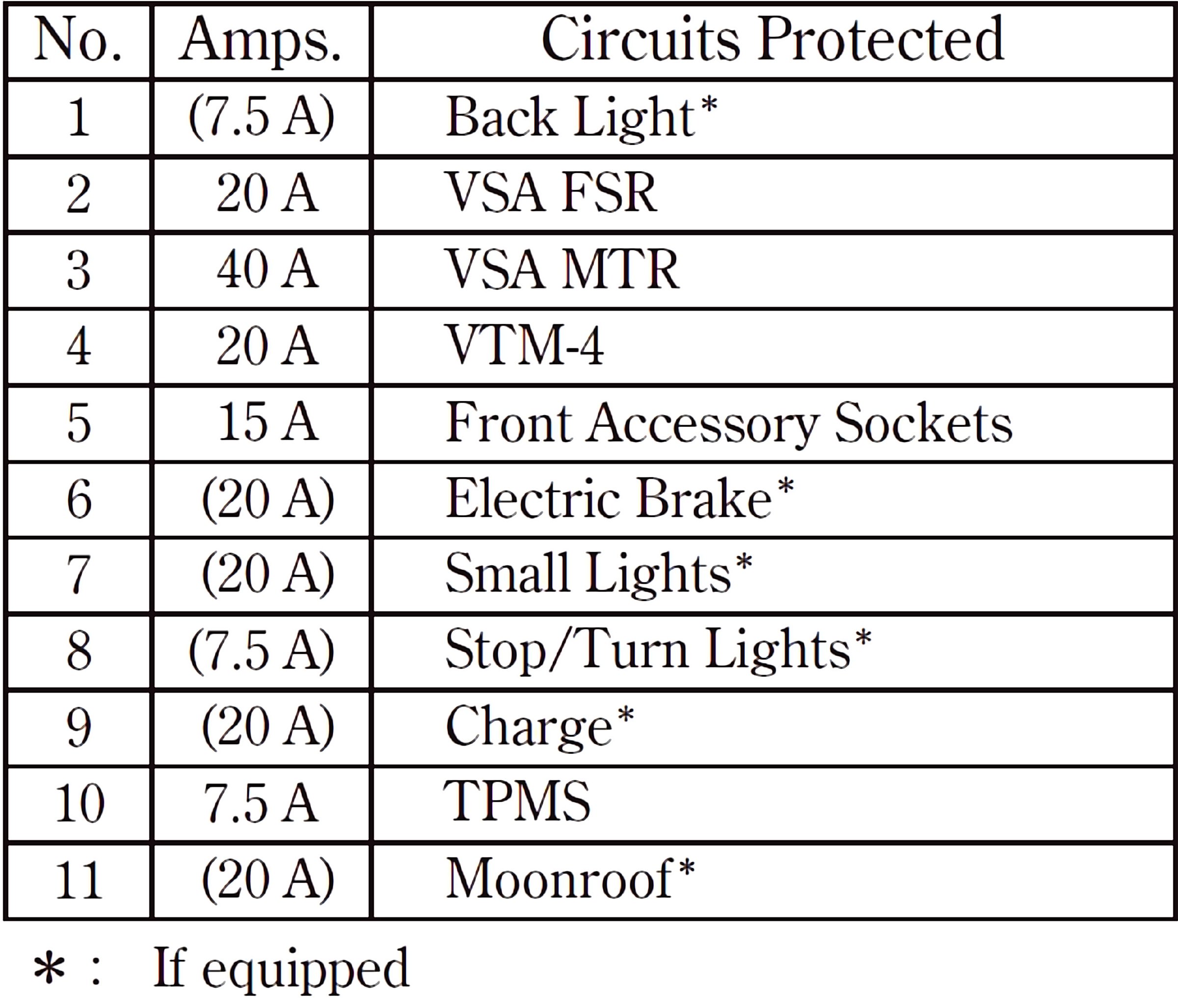

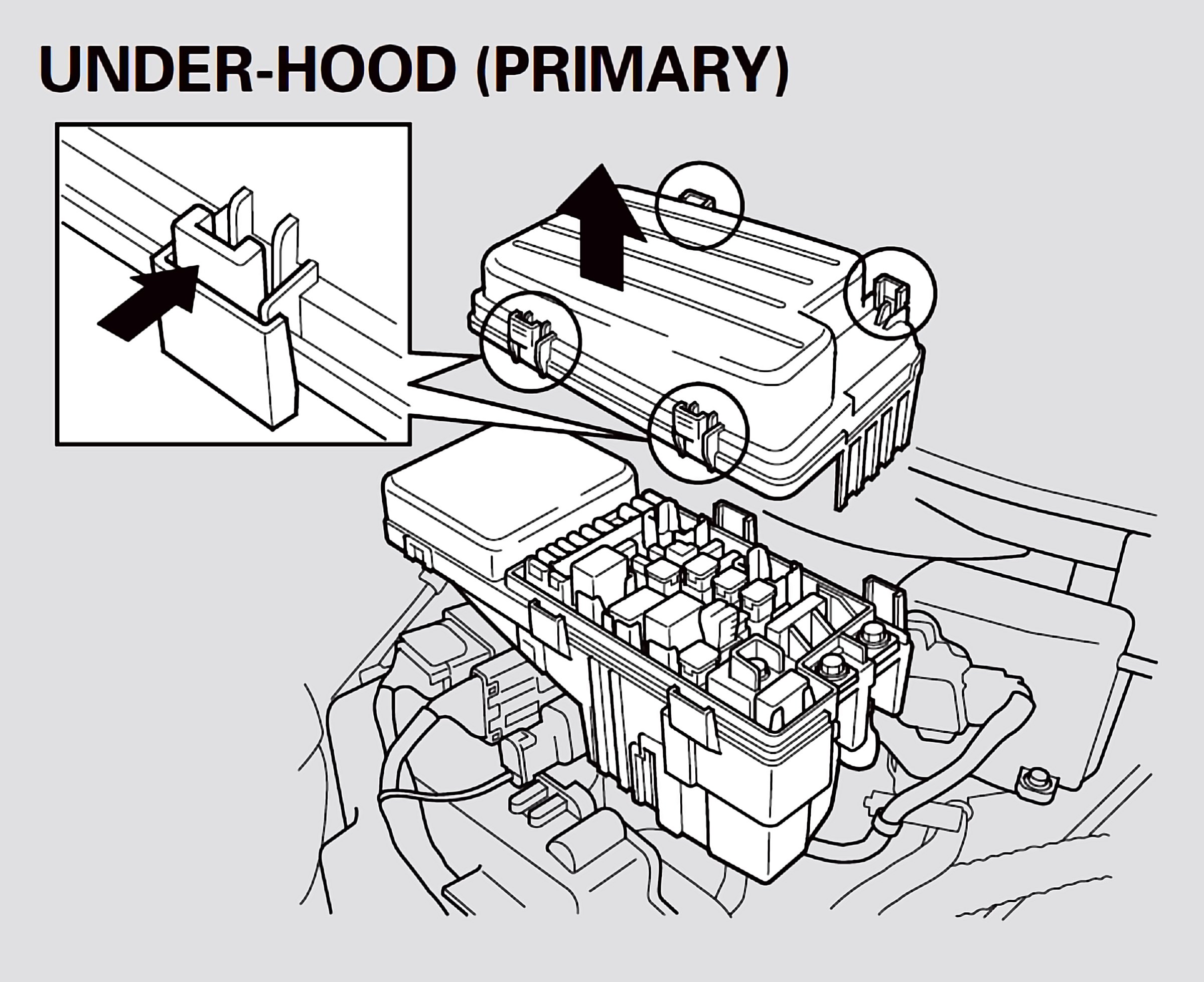

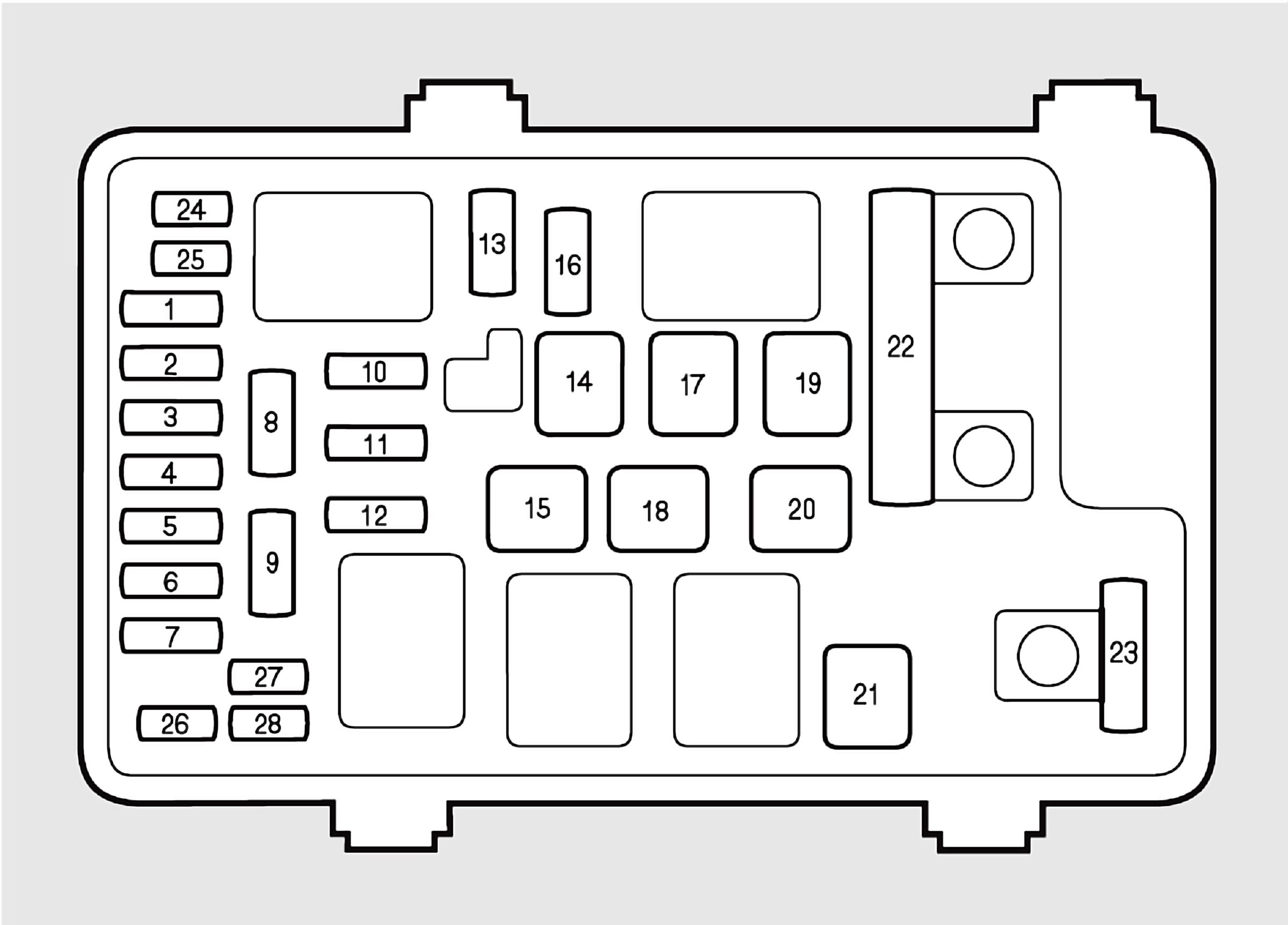

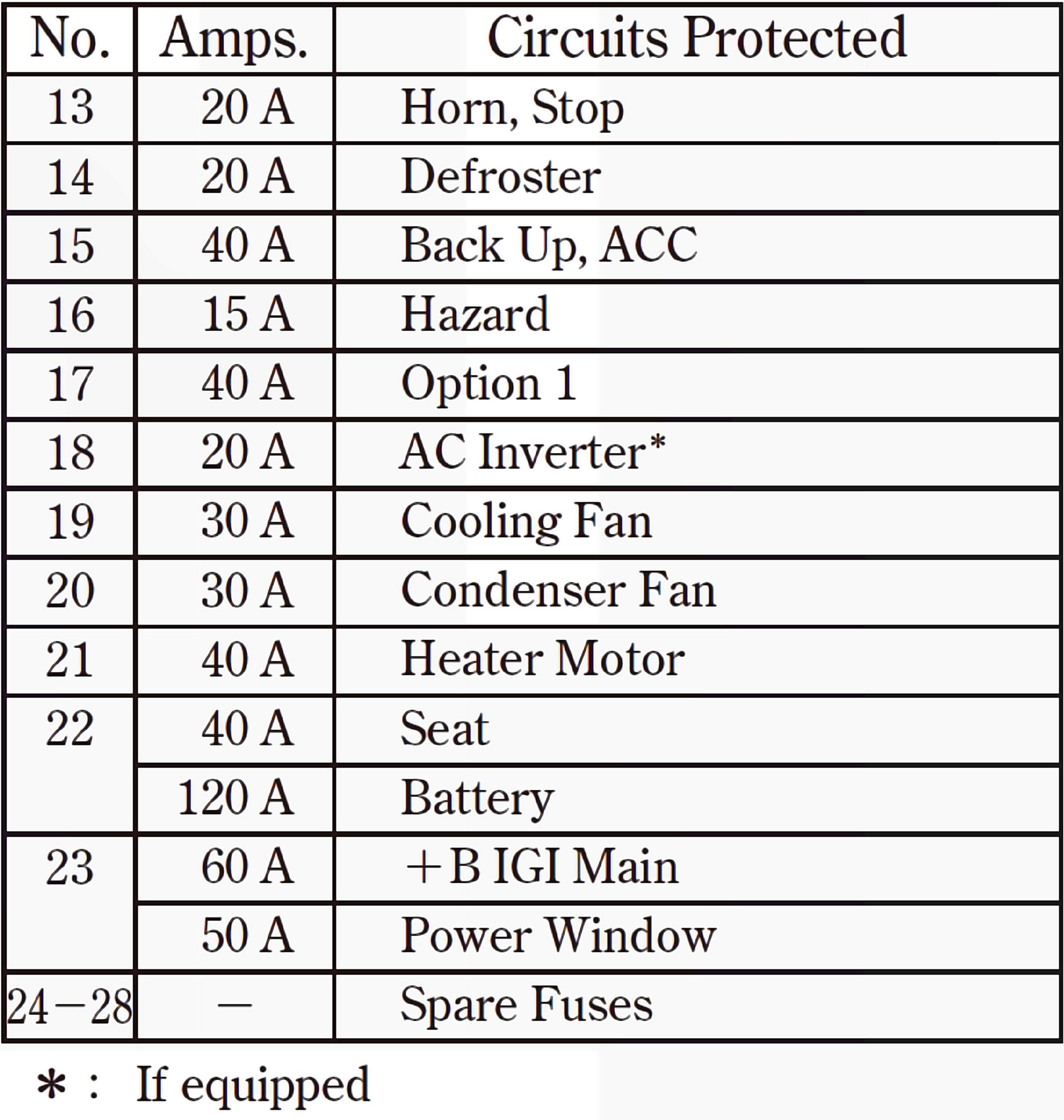

Under-Hood (Primary)

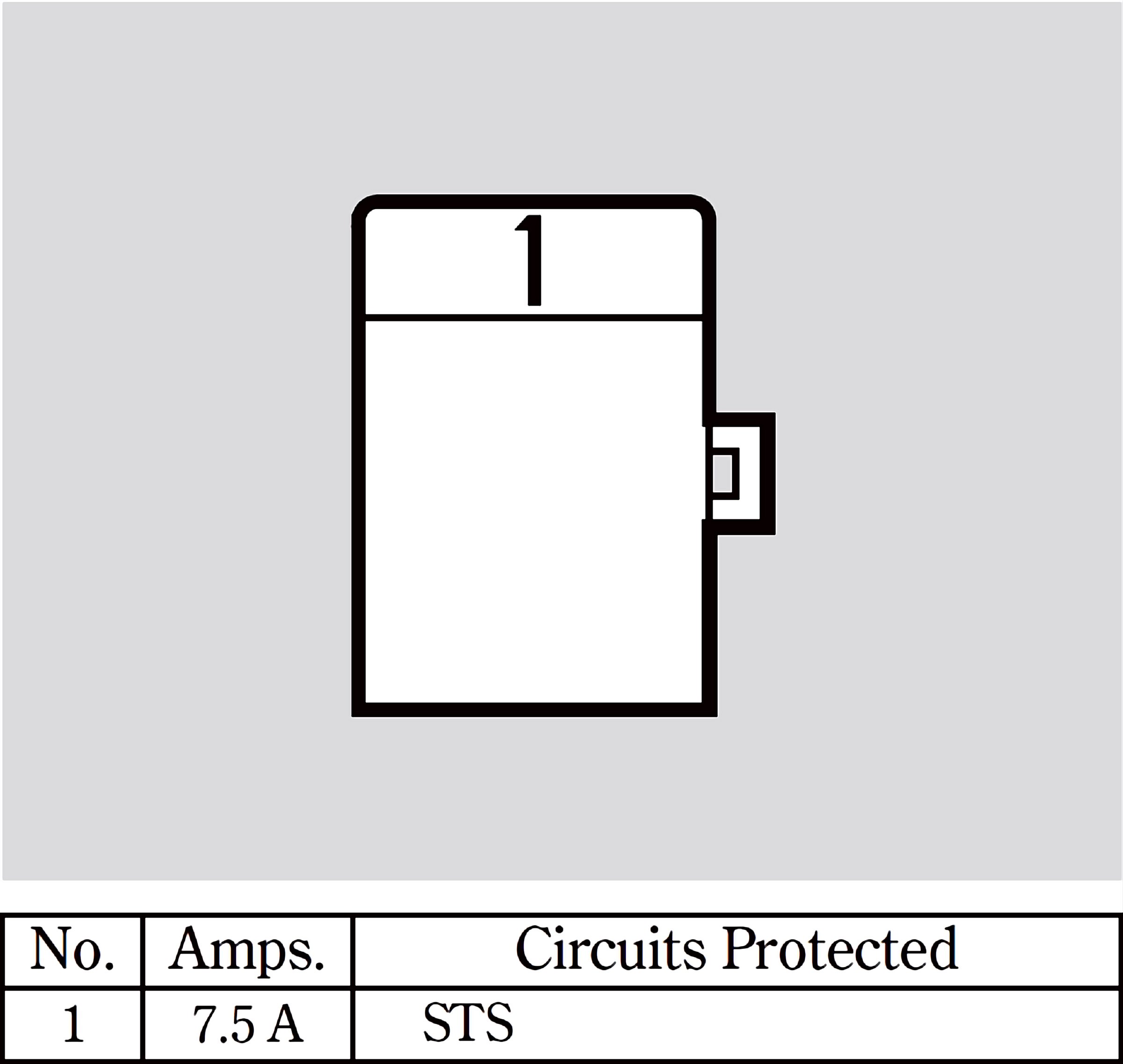

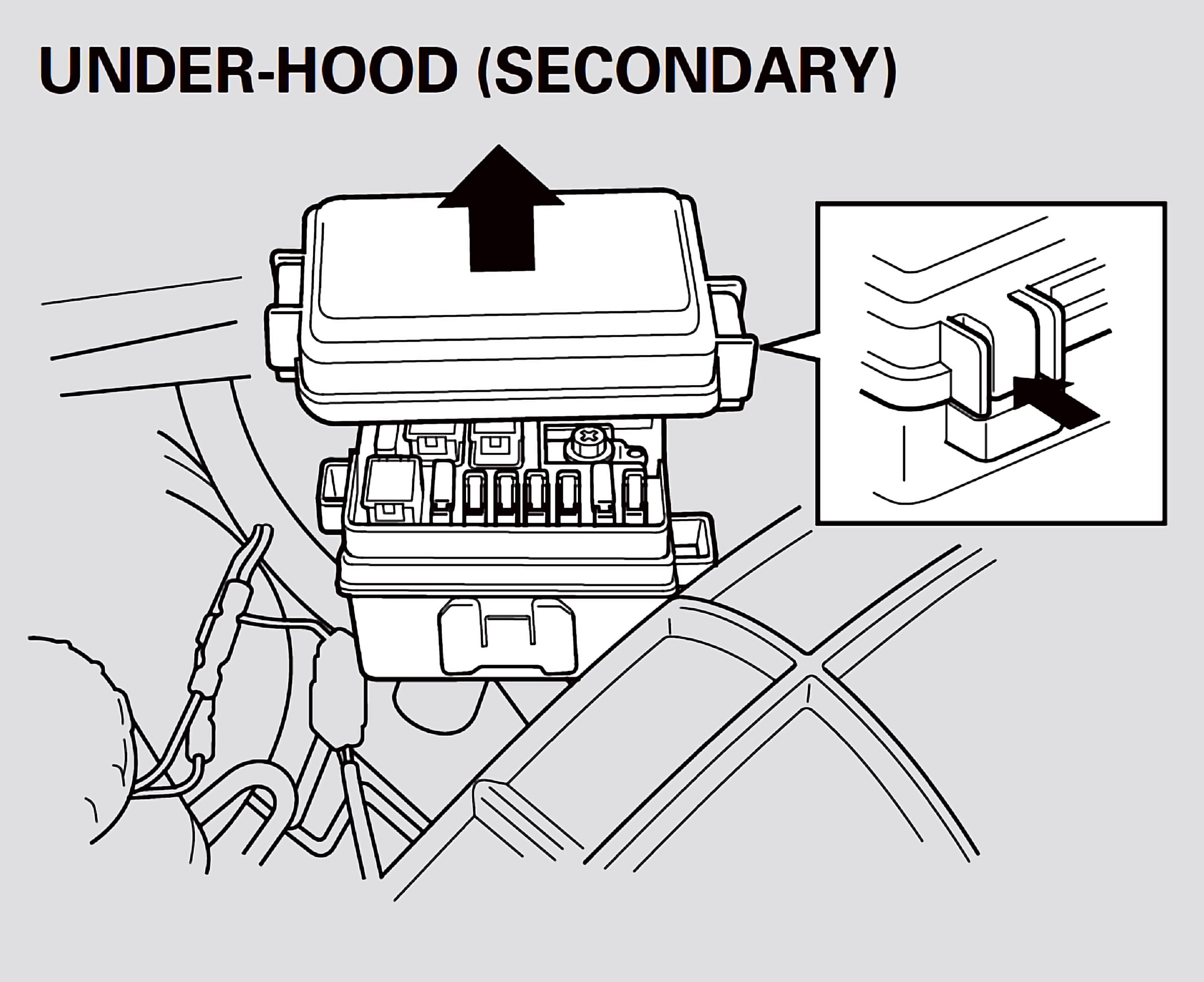

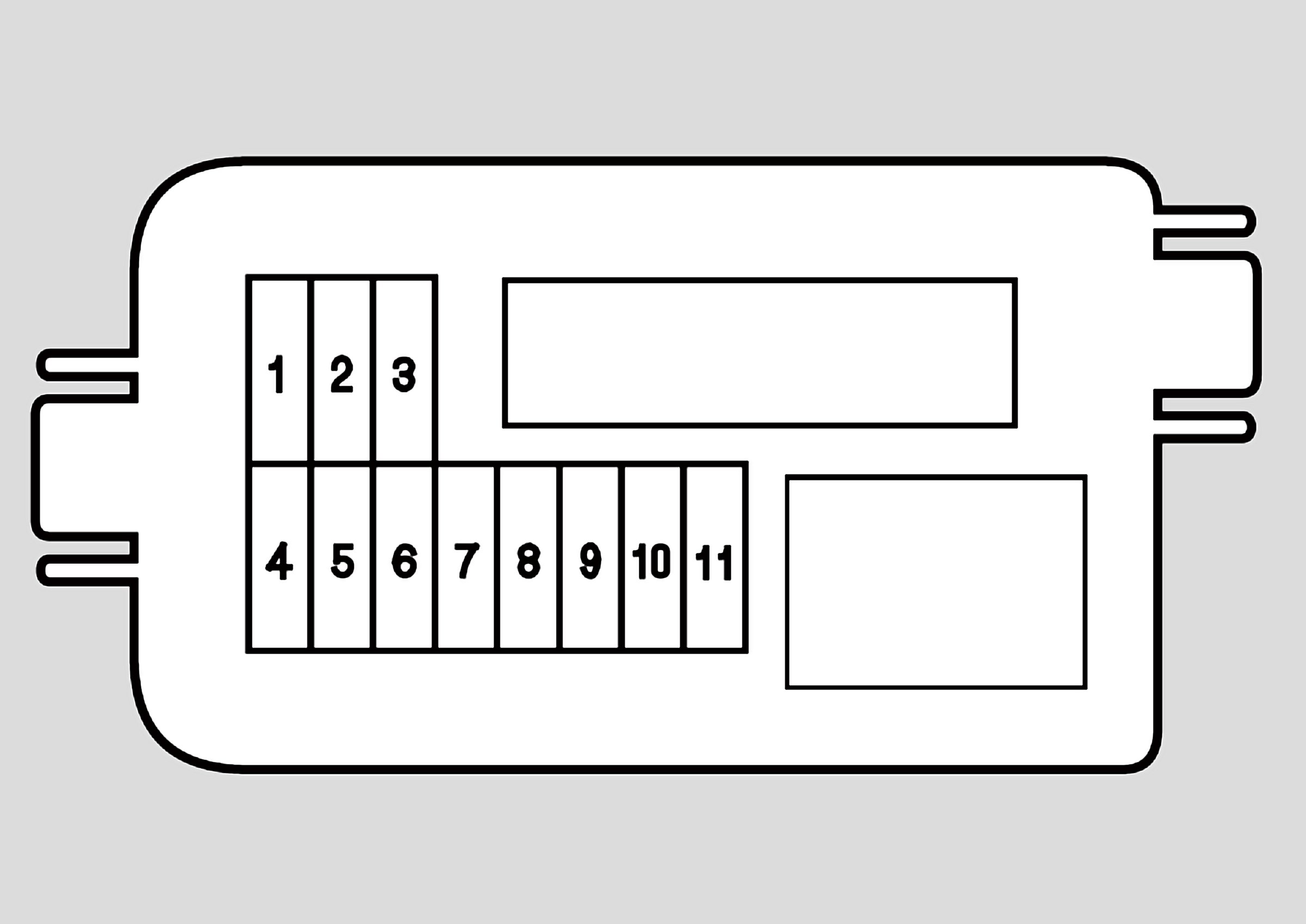

Under-Hood (Secondary)

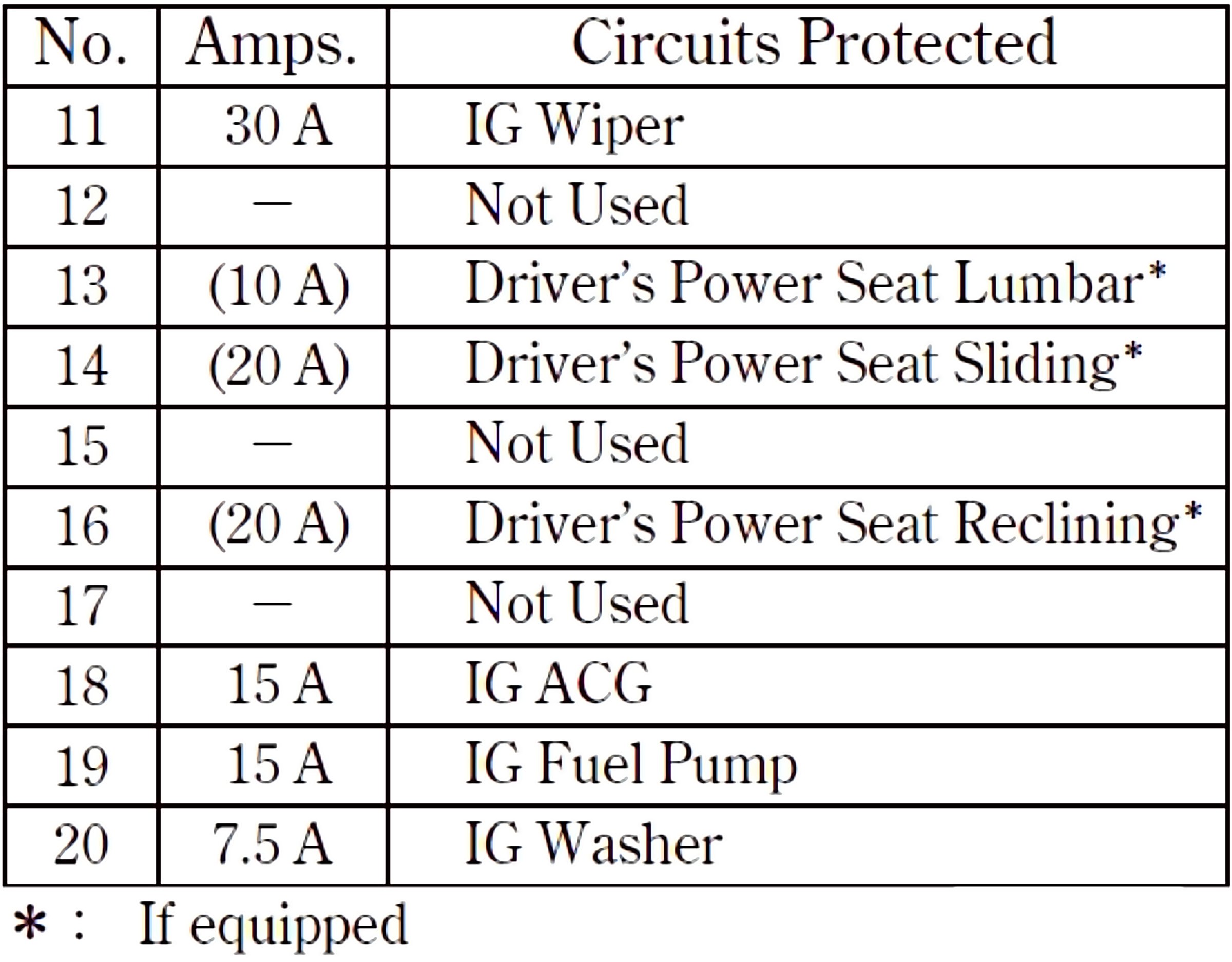

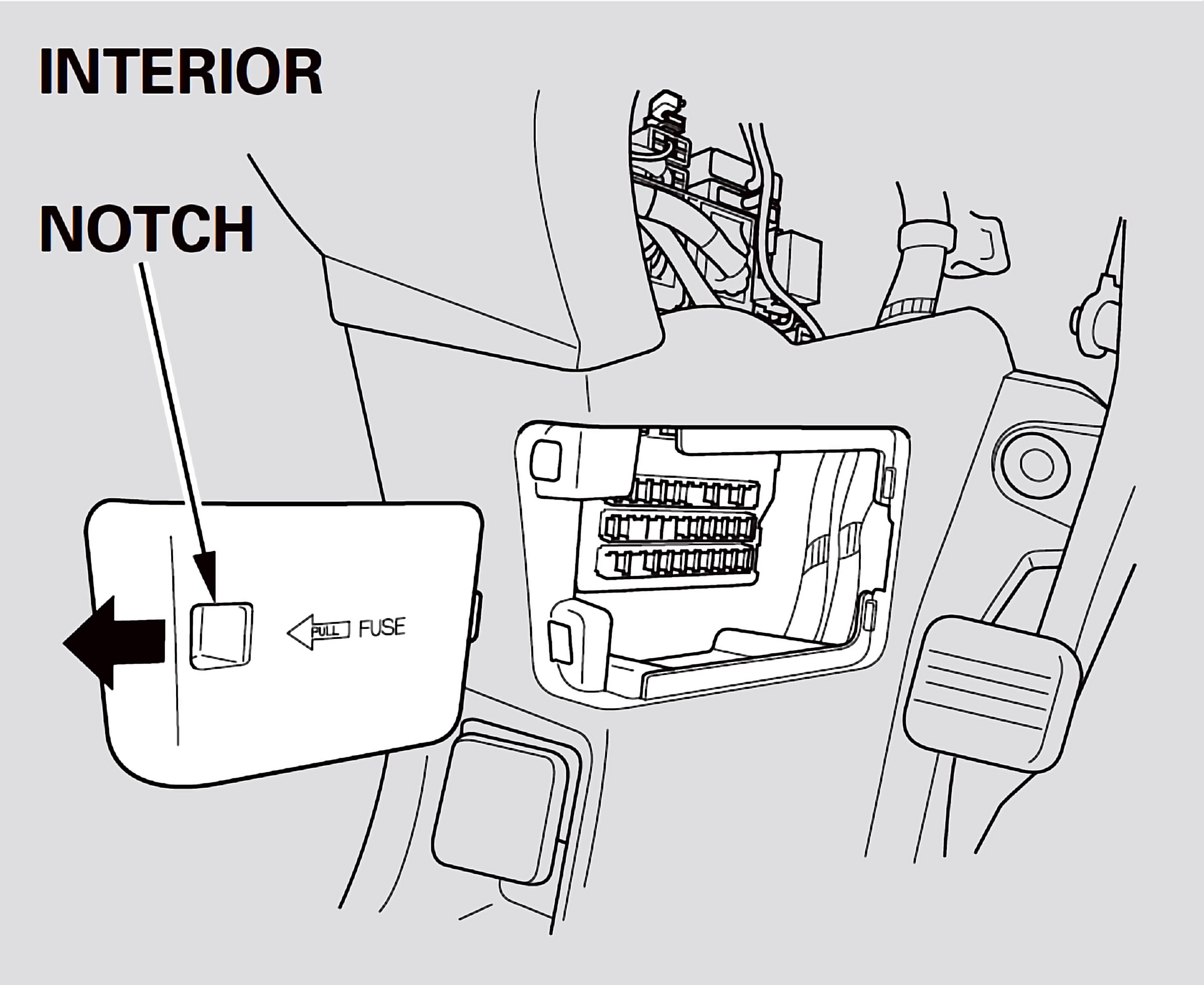

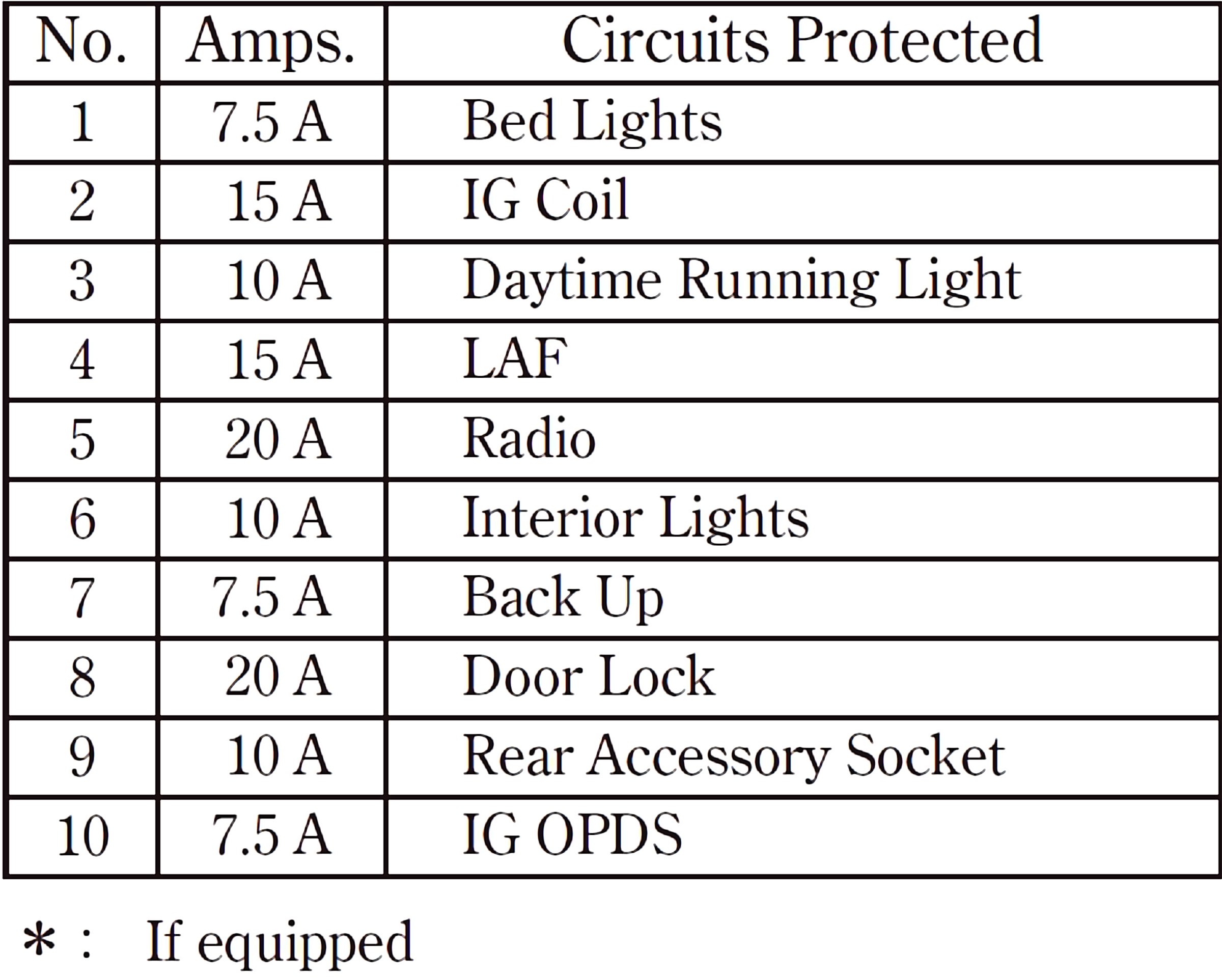

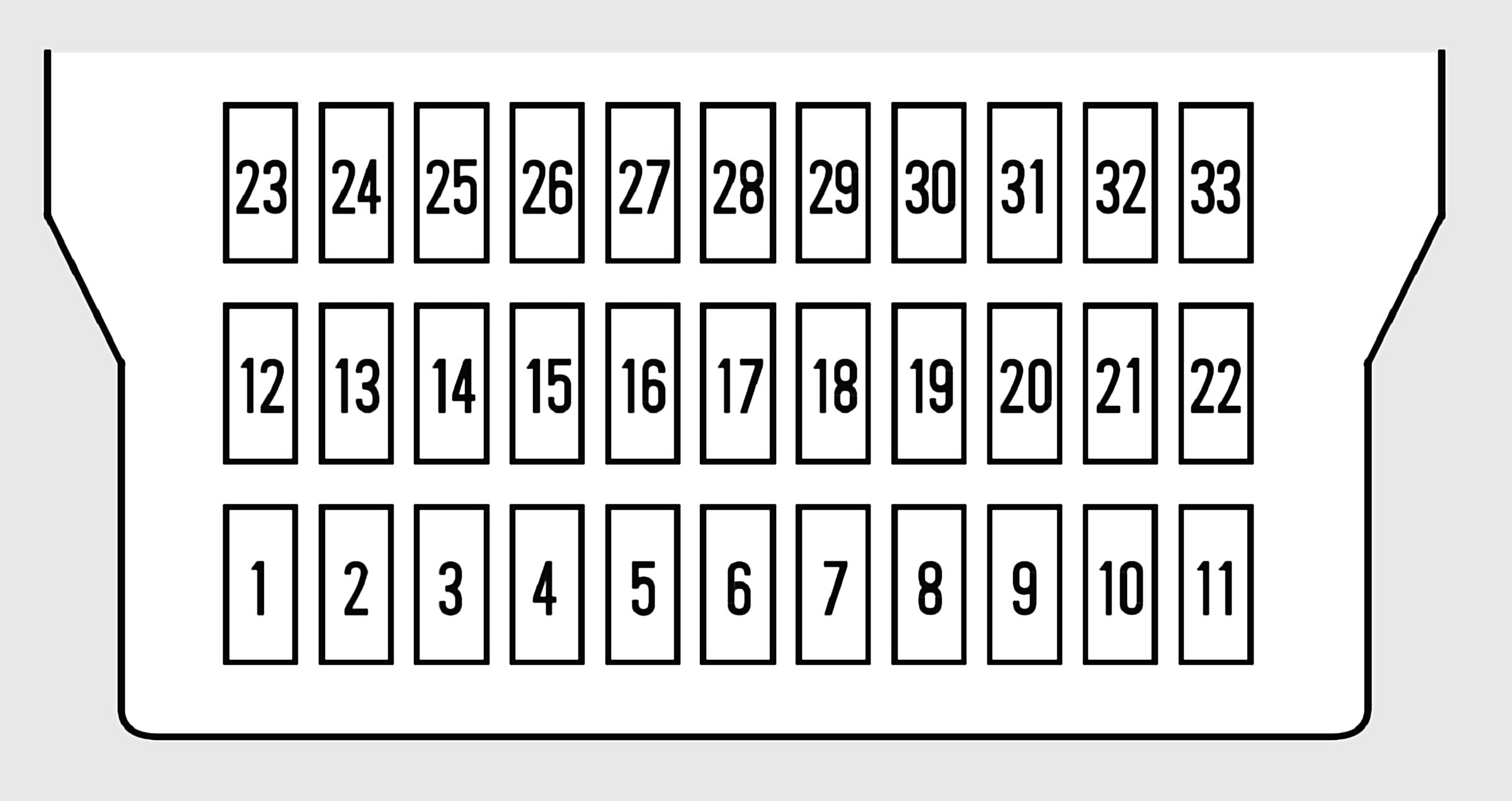

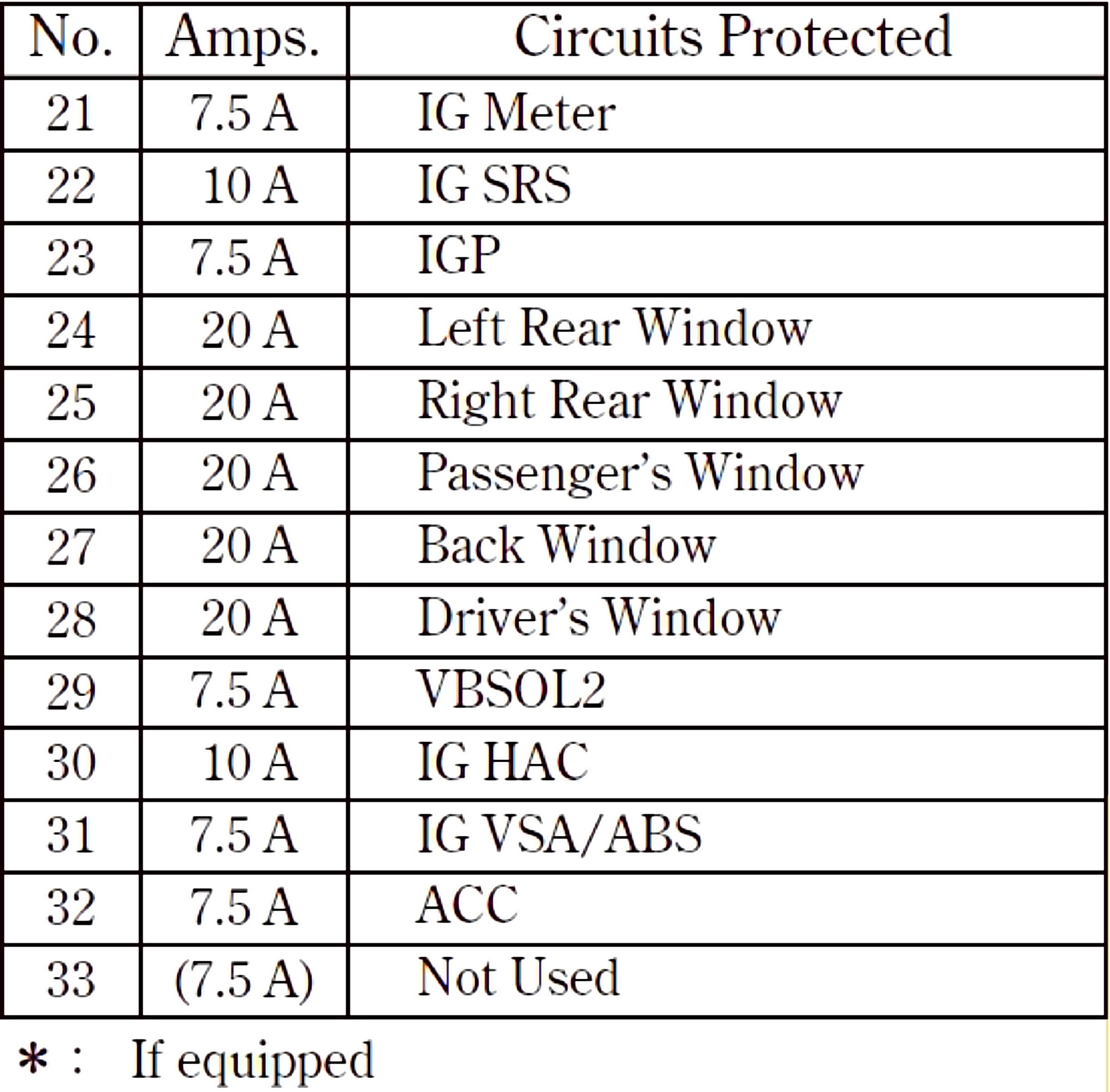

Interior Fuse Box
Upper Area (Driver's Side)
