Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

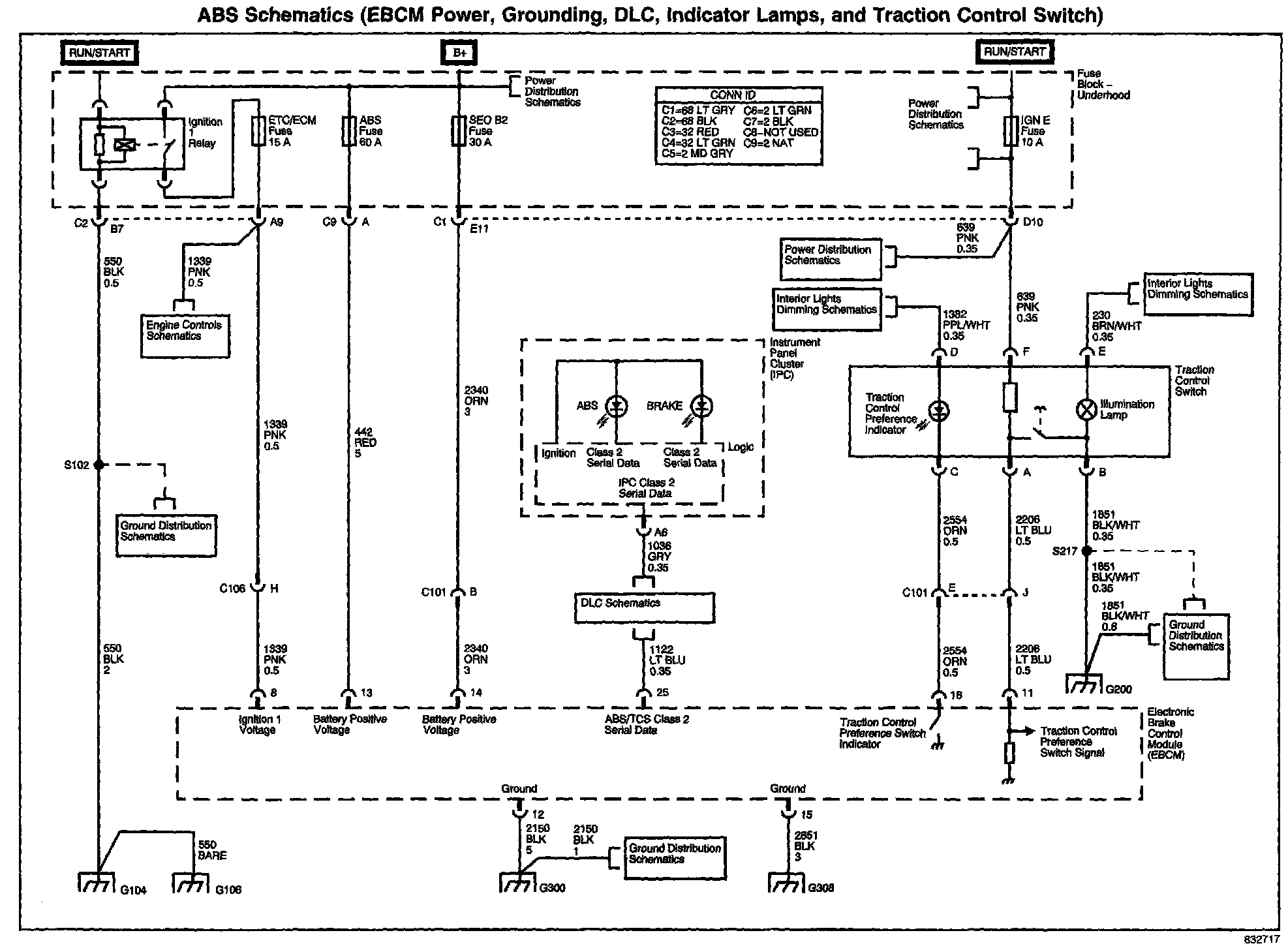

Antilock Brake System Diagram 1:

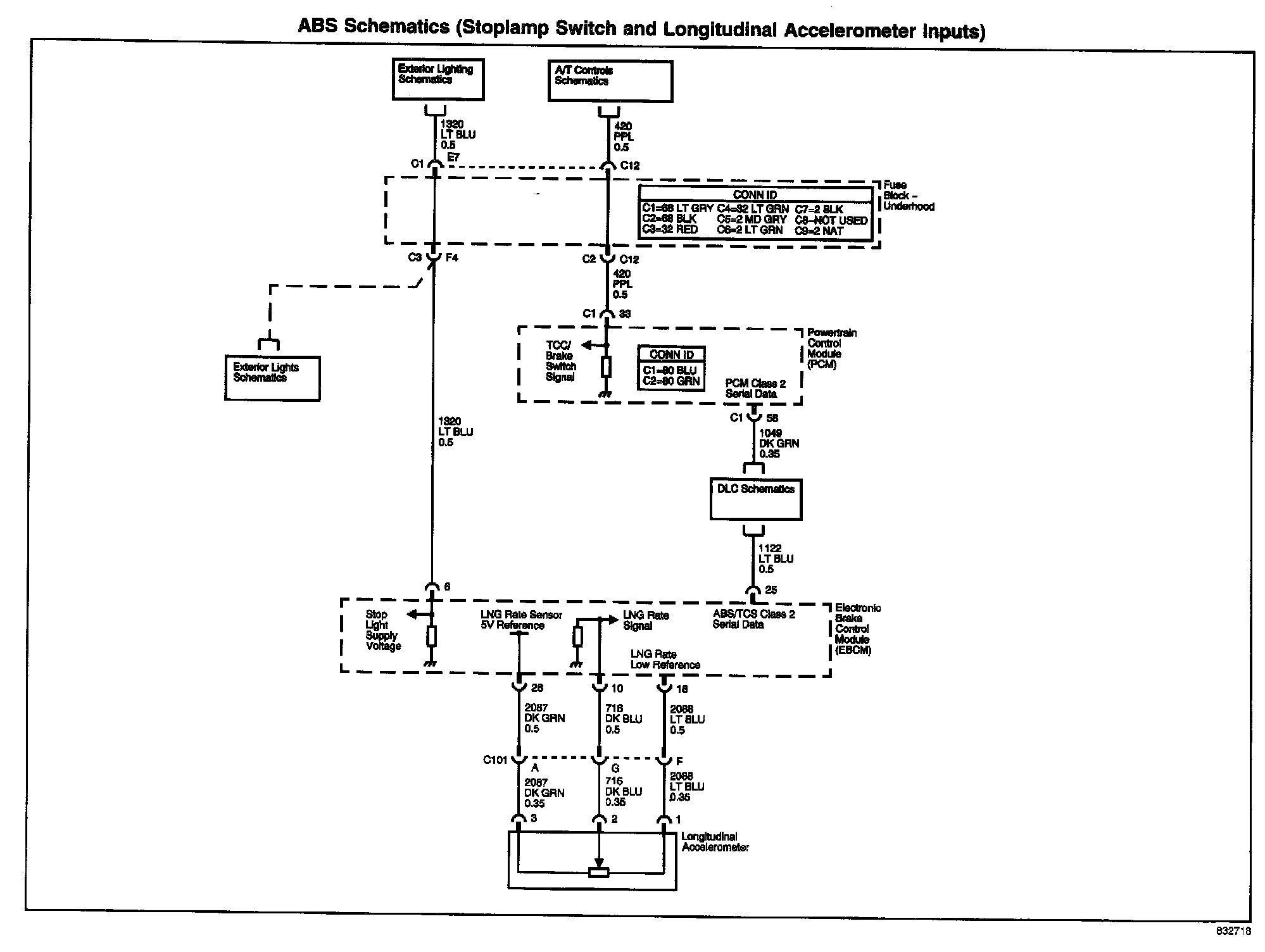

Antilock Brake System Diagram 2:
Antilock Brake System Diagram 3:
