Home
>>
Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounds By Number
>>
G100 - G199
>>
G103
G103

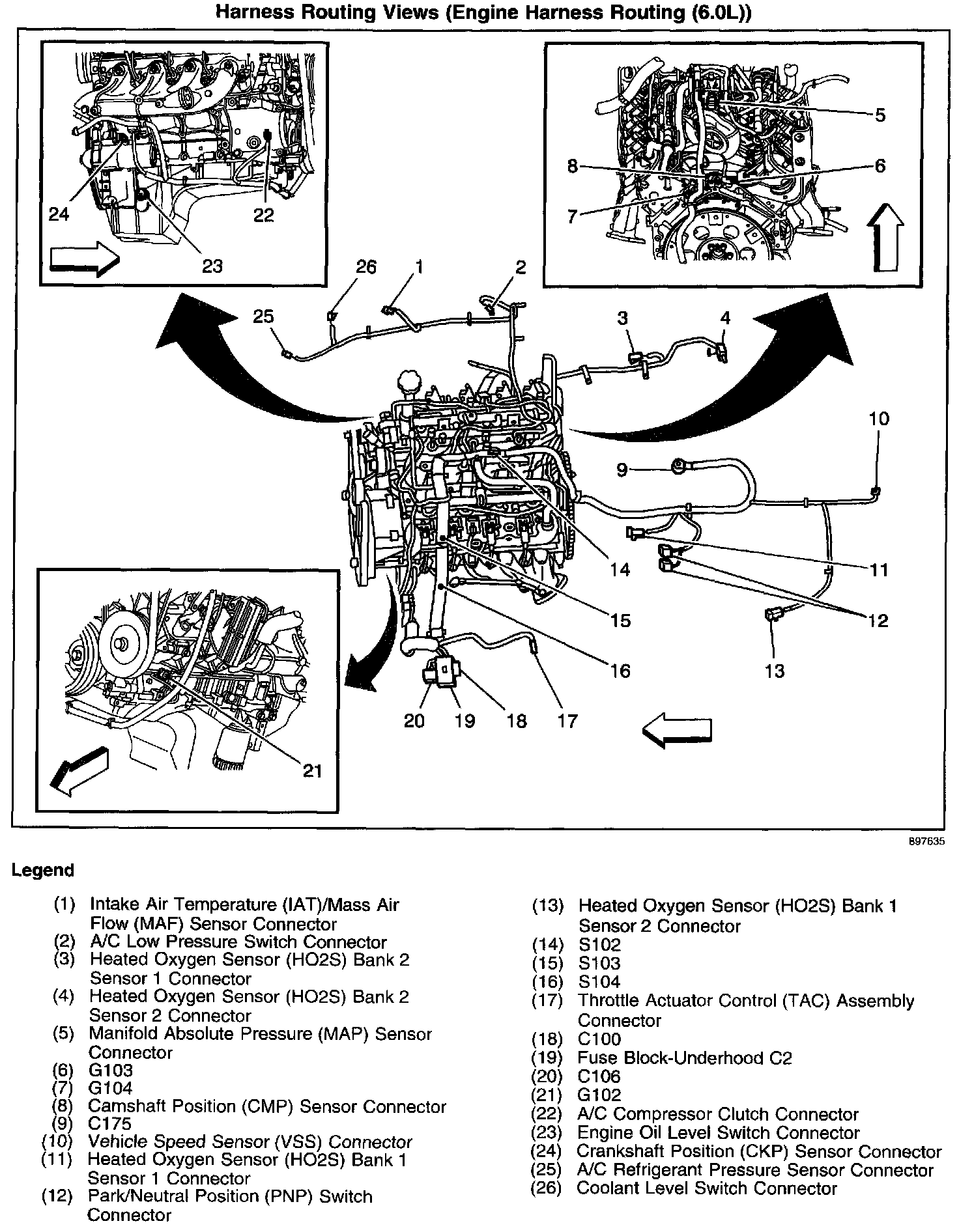

Harness Routing Views (Engine Harness Routing):
