Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Spacer Plate Fluid Passages

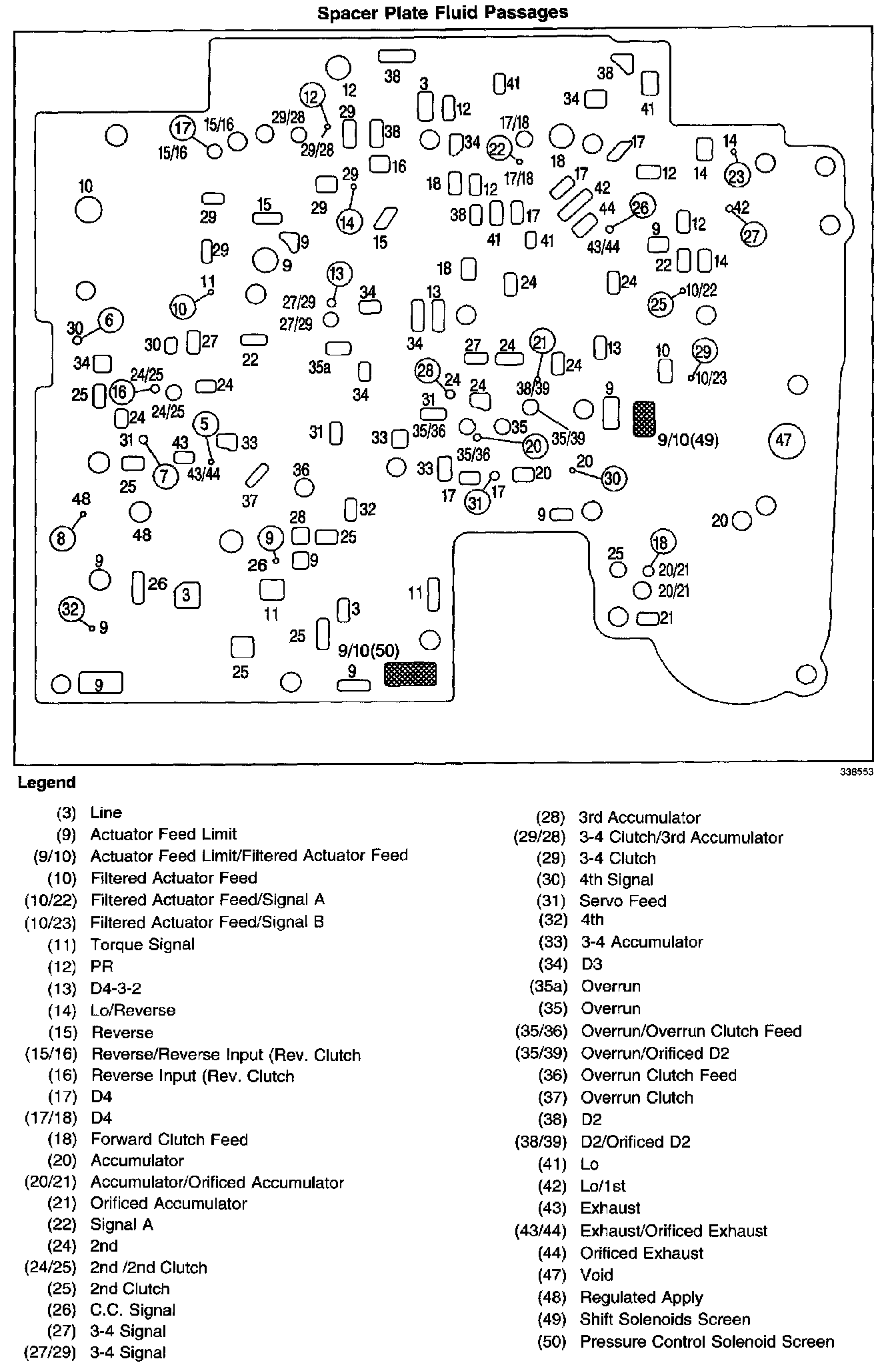

Spacer Plate Fluid Passages

Spacer Plate Fluid Passages:
